RMStator Voltage Regulator Rectifier Bypass RMS020-108148
Customer Ratings
RMStator Voltage Regulator Rectifier Bypass RMS020-108148
RMStator Voltage Regulator Rectifier Bypass RMS020-108148
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifiers and way cooler than OEM parts.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
The regulator is easier to mount because it is smaller than the OEM.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGYRMSTATOR's new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.
ABOUT THE BYPASS HARNESSThis bypass harness allows you to connect your new series regulator directly to your battery. Bypassing feet of wire and multiple connectors on your main wiring harness to provide a safer and more direct connection.
INSTALL LIKE A PROWe include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
Technical Data
Series Regulator :
Dimensions:
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Dimensions:
Wires length: 640 mm
Number of plugs: 3
Number of pins: 5
Number of wires: 5
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-108148
Fitment:
- 2003-2004 Kawasaki KLX400R
- 2003-2004 Kawasaki KLX400SR
- 2000-2004 Suzuki DRZ400
- 2000-2004 Suzuki DRZ400E
- 2000-2023 Suzuki DRZ400S
- 2005-2010 Suzuki DRZ400SM
- 2013-2020 Suzuki DRZ400SM
- 2023-2024 Suzuki DRZ400SM

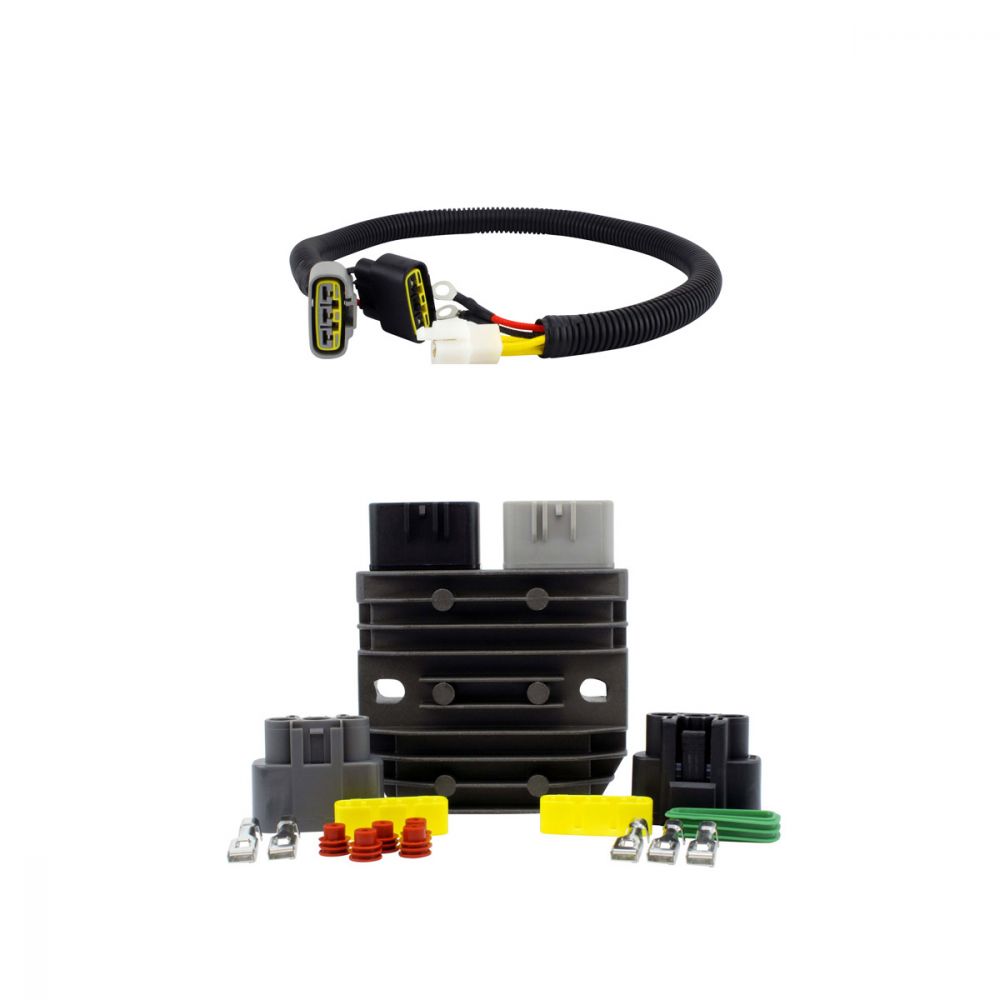

Note: Image is for reference only, actual product may vary slightly.
