RMStator Mosfet Regulator RMS022-106222

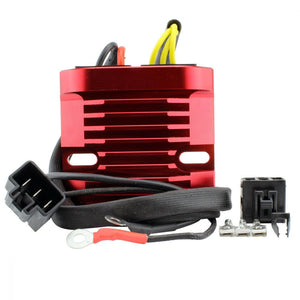

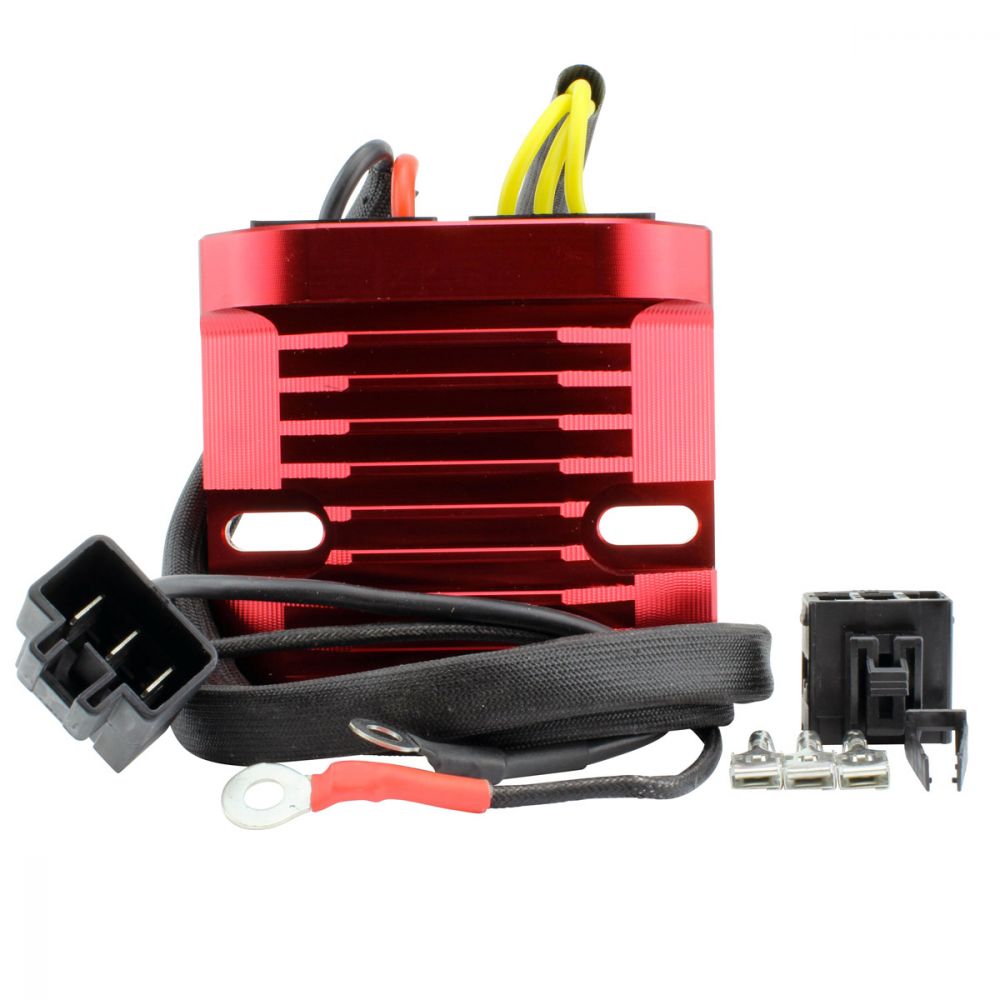

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new RMSTATOR machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components
All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Why use Mosfet Enhanced technology?

Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.

Saves gas

Less load on the stator, less work, less fuel is used and you save.

Regulated energy

The power charging your battery is steadier and smooth.

Extended battery life

Extends the battery's life and cold cranking capacity.

More engine power

Removes stator load resulting in more engine power.

Optimized power

Optimize power delivery by switching the stator coils on or off.

&rdquoRMSTATOR

With?design

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Technical Data

Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 811 mm & 350 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20&deg to 85&deg

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS022-106222

Fitment:

2001-2004 Honda CBR600F4i
2001-2002 Honda CBR900RR
2001 Honda CBR900RR RE
2001 Honda CBR929RE
2000-2001 Honda CBR929RR
2002-2009 Honda Interceptor 800 VFR800
2017-2020 Triumph Bonneville
2017-2020 Triumph Bonneville 900
2017-2020 Triumph Bonneville Bobber
2018-2020 Triumph Bonneville Speedmaster
2017-2020 Triumph Bonneville T100
2016-2020 Triumph Bonneville T120
2006-2020 Triumph Daytona 675
2006-2020 Triumph Daytona 675R
2019-2020 Triumph Rocket III 2300
2019-2020 Triumph Scrambler 1200
1994-2018 Triumph Speed Triple 1050
2020 Triumph Speed Triple 1050
1994-1998 Triumph Speed Triple 900
1999-2004 Triumph Speed Triple 955
2011-2017 Triumph Speed Triple R 1050
2019-2020 Triumph Speed Triple R 1050
1994-2020 Triumph Speed Triple S 1050
2017-2020 Triumph Street Cup
2017-2020 Triumph Street Scrambler
2007-2020 Triumph Street Triple 675
2008-2020 Triumph Street Triple R 675
2018-2020 Triumph Street Triple R 765
2018-2020 Triumph Street Triple RS ABS 765
2019-2020 Triumph Street Triple S ABS 660 A2
2019-2020 Triumph Street Triple S ABS 765
2016-2017 Triumph Street Twin 900
2017-2018 Triumph Thruxton 1200
2017-2018 Triumph Thruxton 1200 R
2017-2020 Triumph Thruxton RS 1200
2009-2017 Triumph Thunderbird 1600 Standard
2009-2017 Triumph Thunderbird 1700 Standard
2009-2018 Triumph Thunderbird 1700 LT
2009-2017 Triumph Thunderbird Commander 1600
2009-2017 Triumph Thunderbird Commander 1700
2009-2018 Triumph Thunderbird LT 1600
2009-2018 Triumph Thunderbird Storm 1600
2009-2018 Triumph Thunderbird Storm 1700
2011-2017 Triumph Tiger 800
2010-2020 Triumph Tiger 800 XC
2010-2020 Triumph Tiger 800 XR

Note: Image is for reference only, actual product may vary slightly.
