RMStator Voltage Regulator RMS023-106888
RMStator Voltage Regulator RMS023-106888
Brand new Mosfet voltage regulator rectifier
WORKS WITH LITHIUM BATTERIES ONLY
Stop burning your voltage regulator rectifier!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all SCR diode-style OEM regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Top Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM part
- Higher grade of electric components
- All shipped products are tested.

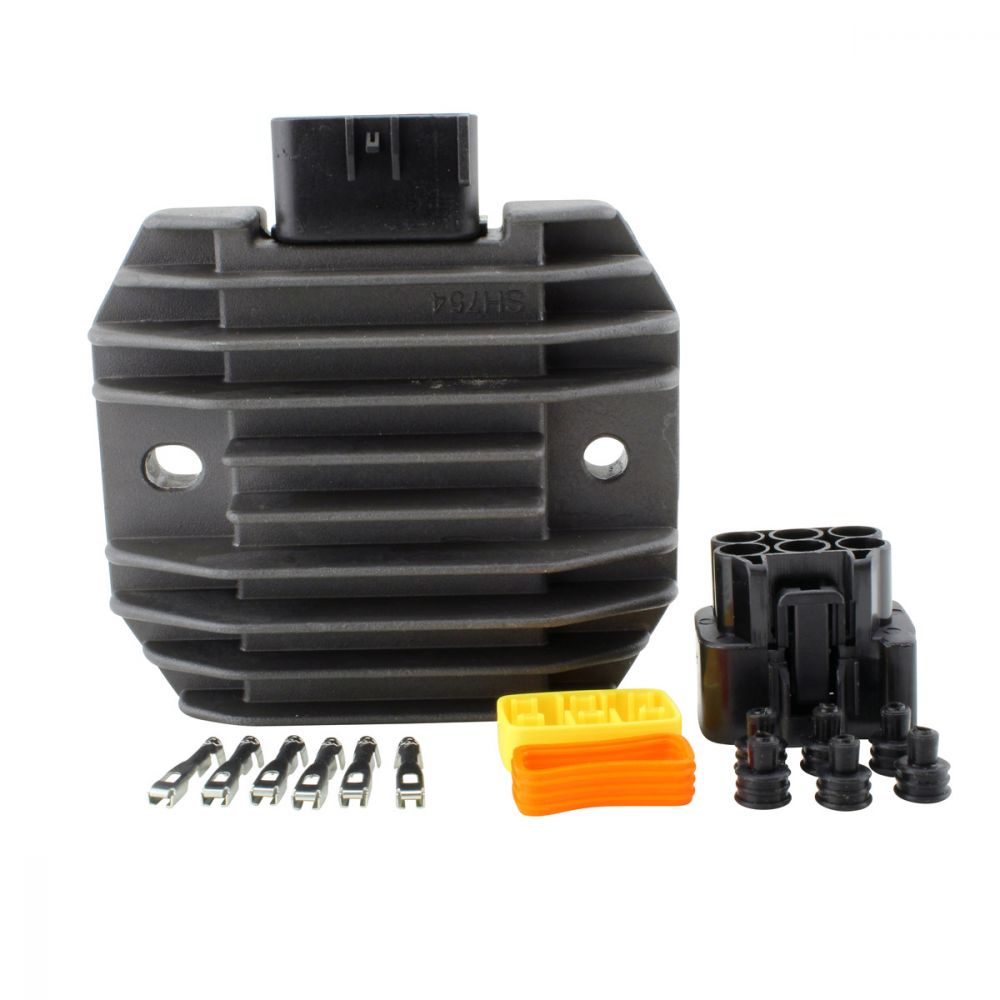

Opposite connector (main harness side) included as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part
Why do you need a different voltage regulator for lithium batteries?
Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The RMSTATOR regulator is designed around the optimal parameters for these factors.
The ripple effect is all that matters
Charging voltage ripple in a powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.
In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however is not practical for this type of regulator. The RMSTATOR Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000's of times a second, and is not the same as your average charging voltage as measured by a multimeter.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Technical Data
Dimensions:
Width: 89 mm
Length: 91 mm
Height: 27 mm
Fixation holes center to center: 66 mm
Other specifications:
Number of plugs: 1
Number of pins: 6
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS023-106888
Fitment:
- 2003-2007 Suzuki Burgman 400 AN400
- 2010-2013 Suzuki King Quad 400 LTA400F 4x4
- 2008-2013 Suzuki King Quad 400 LTF400F 4x4 FS
- 2009 Suzuki TU250
- 2011-2012 Suzuki TU250
- 2015-2017 Suzuki TU250
- 2019 Suzuki TU250
- 2002-2008 Yamaha Grizzly 660 YFM660FA 4x4
- 2006-2020 Yamaha Raptor 700R YFM700R
- 2006-2009 Yamaha Rhino 450 YXR450FA 4x4
- 2004-2007 Yamaha Rhino 660 YXR660FA 4x4
- 1999-2003 Yamaha Road Star XV1600A
- 1999-2003 Yamaha Road Star XV1600A Silverado
- 2001-2003 Yamaha Road Star XV1600AS Midnight
- 2004 Yamaha Road Star XV1700A
- 2004 Yamaha Road Star XV1700AM Midnight
- 2004 Yamaha Road Star XV1700AT Silverado
- 2004 Yamaha Road Star XV1700ATM Midnight Silverado
- 2004-2006 Yamaha SX Venom SXV60
- 2004-2005 Yamaha SX Venom ER SXV60ER
- 2002-2006 Yamaha SX Viper SXV700
- 1999-2002 Yamaha V Star 1100 XVS1100 Custom
- 2000-2002 Yamaha V Star 1100 XVS1100A Classic
- 2000 Yamaha V Star 650 XVS650 Custom
- 1998-2000 Yamaha V Star 650 XVS650A Classic
- 2004-2006 Yamaha Venture 600 VT600
- 2004 Yamaha Venture 700 VT700
- 2009-2020 Yamaha YFZ450R
- 2010-2011 Yamaha YFZ50
Note: Image is for reference only, actual product may vary slightly.
