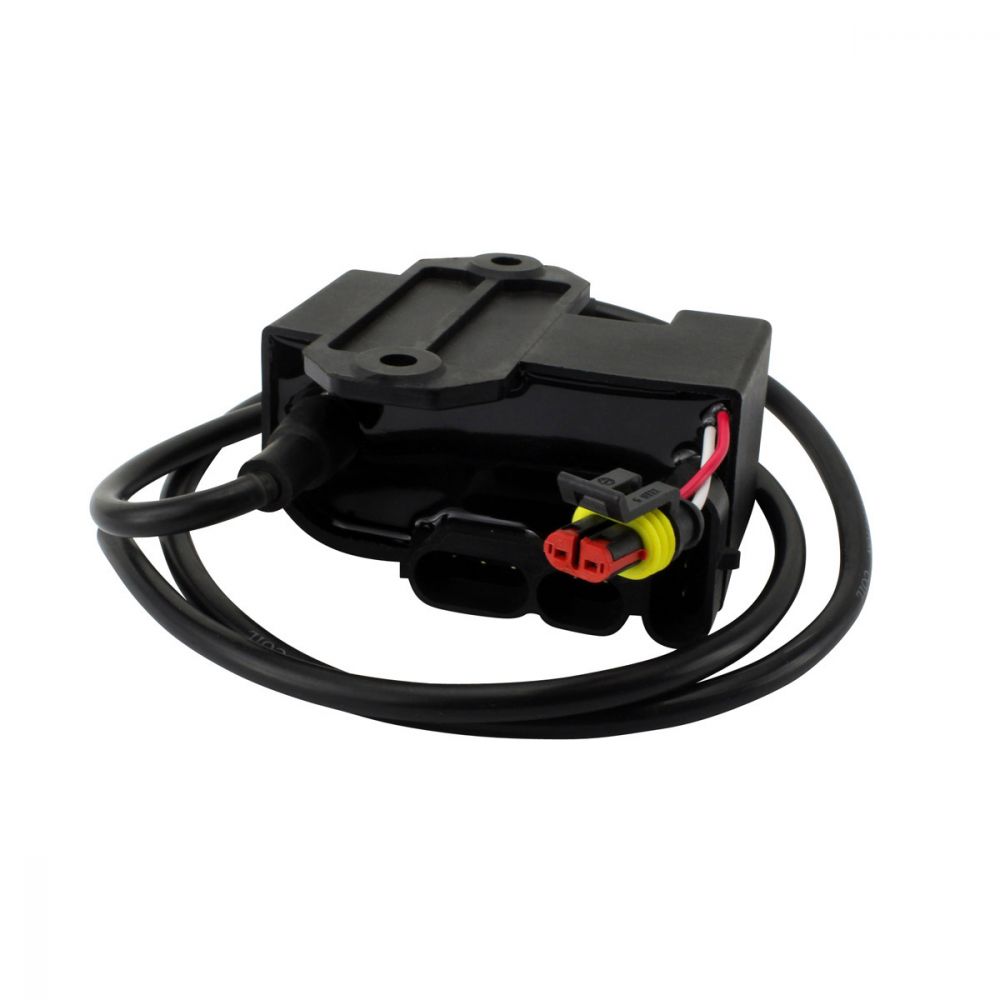

RMStator Ignition CDI Box Coil RMS030-103145

Brand new aftermarket CDI Box Ignition Coil Calibration Module

• Our PeakRPM CDI Box provides the optimal output for your ride
• 2 Spark plug caps included
• Enjoy fast & easy installation with our plug & play OEM design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Some models combine the spark plug caps and coils to reduce the number of parts used to improve efficiency. However, when your plug caps wear out, it is more expensive to replace them. If you are experiencing ignition problems, this could mean the coil plug cap needs replacing. The replacing is simple to do and help with the efficient running of your engine.

Technical Data

Dimensions of CDI Box Ignition Coil Calibrated Module:
Height: 49 mm
Length: 95 mm
Width: 88 mm
Fixation holes center to center: 72 mm

Other specifications:

Number of plugs: 4
Number of pins: 7

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this; we recommend that you rule everything else out before replacing the CDI box.

Dimensions of Spark Plug Caps:
Length: 52 mm
Height: 47 mm
External diameter (plug): 20 mm
Internal diameter (plug): 11 mm
External diameter (wire): 15 mm
Internal diameter (wire): 7 mm
Cap resistance: 6.0K ohms

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS030-103145

Fitment:

• 2006-2009 Lynx Adventure 550
• 2008-2009 Lynx Rave 550
• 2005 Ski-doo Expedition 550 Electric Start Carb F/C
• 2007-2008 Ski-doo Expedition 550F Sport Carb F/C
• 2011-2020 Ski-doo Expedition 550F Sport Carb F/C
• 2006 Ski-doo Expedition 550F Sport Electric Start Carb F/C
• 1999-2001 Ski-doo Formula 380 Deluxe Fan Carb
• 1999-2001 Ski-doo Formula 500 Deluxe Fan Carb
• 2000 Ski-doo Formula S 380 Carb F/C
• 2008 Ski-doo Freestyle 550F Back Country Crank Start Carb F/C
• 2007-2009 Ski-doo Freestyle 550F Back Country Electric Start Carb F/C
• 2007-2008 Ski-doo Freestyle 550F Park Crank Start Carb F/C
• 2008 Ski-doo Freestyle 550F Park Electric Start Carb F/C
• 2002-2003 Ski-doo Grand Touring 380F Fan
• 2002 Ski-doo Grand Touring 500 Carb
• 2003 Ski-doo Grand Touring 550 Fan Carb
• 2010-2015 Ski-doo Grand Touring 550F Sport Carb F/C
• 2006 Ski-doo GSX 380F Fan Carb
• 2005-2010 Ski-doo GSX 550F Fan Carb
• 2006 Ski-doo GTX 380F Fan Carb
• 2005-2009 Ski-doo GTX 550F Fan Carb
• 2002-2003 Ski-doo Legend 380F Fan Carb
• 2002 Ski-doo Legend 500F Fan Carb
• 2003-2004 Ski-doo Legend 550 Fan Carb
• 2001-2004 Ski-doo MXZ 380 Fan Carb
• 2006 Ski-doo MXZ 380 Fan Carb
• 2001 Ski-doo MXZ 440 Fan Carb
• 2001-2002 Ski-doo MXZ 500F Fan Carb
• 2003-2009 Ski-doo MXZ 550 Fan Carb
• 2011-2014 Ski-doo MXZ 550F Sport Carb F/C
• 2010-2012 Ski-doo MXZ 550F TNT Carb F/C
• 2006 Ski-doo MXZ X 550 Carb L/C
• 2007-2009 Ski-doo MXZ X 550 Electric Start Carb F/C
• 2010-2014 Ski-doo Renegade 550F Sport Carb F/C
• 1999-2000 Ski-doo Skandic 380 Carb F/C
• 1999-2000 Ski-doo Skandic 500 Carb F/C
• 2002 Ski-doo Skandic 500 Carb F/C
• 2004-2010 Ski-doo Skandic 550F SUV Carb F/C
• 2004-2008 Ski-doo Skandic 550F SWT Carb F/C
• 2014-2019 Ski-doo Skandic 550F SWT Carb F/C
• 2008-2010 Ski-doo Skandic 550F Tundra Carb F/C
• 2008-2010 Ski-doo Skandic 550F Tundra LT Carb F/C
• 2004 Ski-doo Skandic 550F Tundra Sport
• 2010 Ski-doo Skandic 550F Tundra Sport Carb F/C
• 2004-2020 Ski-doo Skandic 550F WT
• 2001-2002 Ski-doo Summit 500 Carb F/C
• 2003-2009 Ski-doo Summit 550 Fan Carb
• 2001 Ski-doo Touring 380F Fan Carb
• 2001 Ski-doo Touring 500F Fan Carb
• 1999-2000 Ski-doo Touring E 380 Carb F/C
• 1998-2000 Ski-doo Touring E 500 Carb F/C
• 1998 Ski-doo Touring LE 500 Carb F/C
• 1998 Ski-doo Touring SLE 500 Carb F/C
• 2014-2015 Ski-doo Tundra 550 WT RER Carb F/C
• 2014-2020 Ski-doo Tundra 550F LT
• 2015 Ski-doo Tundra 550F Sport
• 2017-2020 Ski-doo Tundra 550F Sport

Note: Image is for reference only, actual product may vary slightly.
