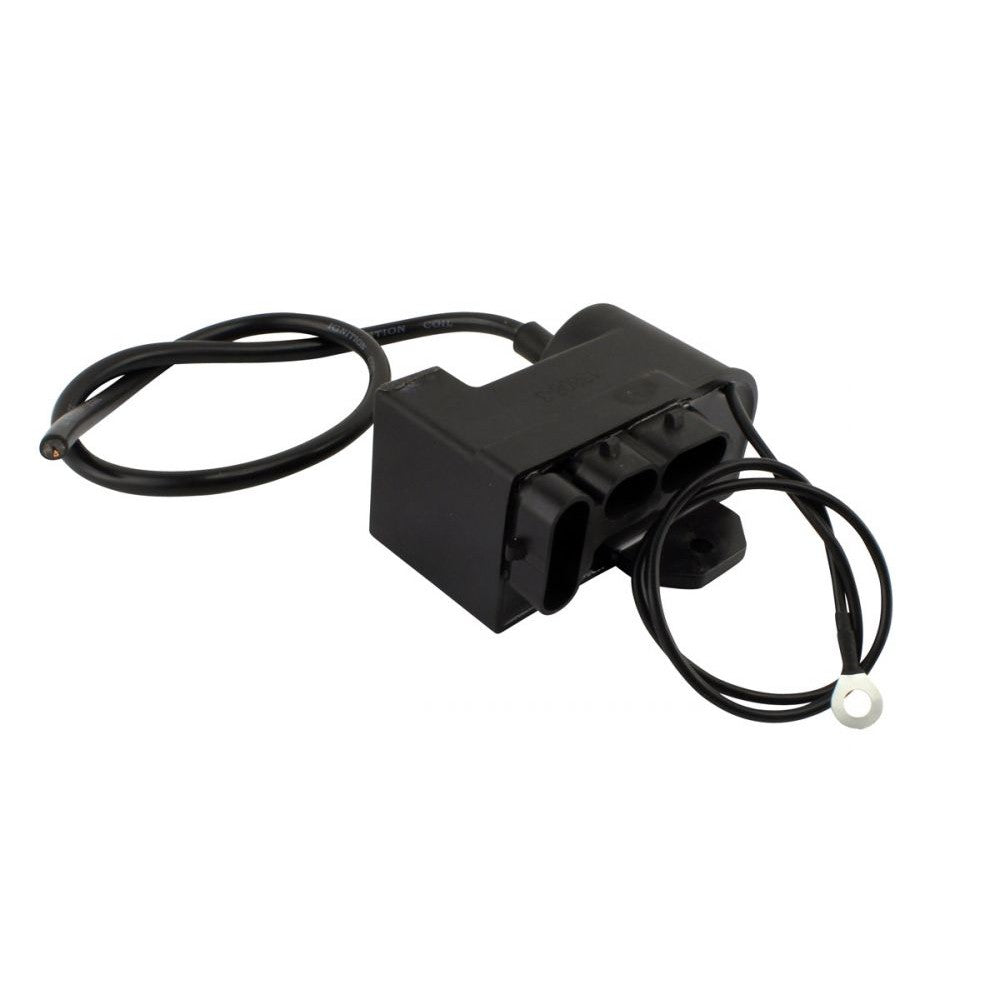

RMStator CDI Box Ignition Coil Calibrated Module RMS030-104540
Customer Ratings
RMStator CDI Box Ignition Coil Calibrated Module RMS030-104540
RMStator CDI Box Ignition Coil Calibrated Module RMS030-104540
Brand new aftermarket CDI Box Ignition Coil Calibration Module with Spark Plug Cap
- Our PeakRPM CDI Box provides the optimal output for your ride
- 2 Spark plug caps included
- Enjoy fast & easy installation with our plug & play OEM design and included dielectric connector grease
- OEM-grade electronic components and printed circuit boards for long-term reliability and performance
- 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Some models combine the spark plug caps and coils to reduce the number of parts used to improve efficiency. However, when your plug caps wear out, it is more expensive to replace them. If you are experiencing ignition problems, this could mean the coil plug cap needs replacing. The replacing is simple to do and help with the efficient running of your engine.
Technical Data
Dimensions of CDI Box Ignition Coil Calibrated Module:
Height: 44 mm
Length: 94 mm
Width: 48 mm
Fixation holes center to center: 72 mm
Other specifications:
Number of plugs: 3
Number of pins: 9
Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this; we recommend that you rule everything else out before replacing the CDI box.
Dimensions of Spark Plug Caps:
Length: 52 mm
Height: 47 mm
External diameter (plug): 20 mm
Internal diameter (plug): 11 mm
External diameter (wire): 15 mm
Internal diameter (wire): 7 mm
Cap resistance: 6.0K ohms
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS030-104540
Fitment:
- 2006-2008 Ski-doo Freestyle 300F Electric Start Carb F/C
- 2006-2007 Ski-doo Freestyle 300F Manual Start Carb F/C
- 2008 Ski-doo Freestyle 300F Session Manual start Carb F/C
- 2006-2009 Ski-doo Skandic 300F Tundra Crank Start Carb F/C
- 2006-2009 Ski-doo Skandic 300F Tundra Electric Start Carb F/C
- 1998 Ski-doo Tundra R 280 Carb F/C
- 2000 Ski-doo Tundra R 280 Carb F/C
- 2002-2005 Ski-doo Tundra R 280 Carb F/C
Note: Image is for reference only, actual product may vary slightly.
