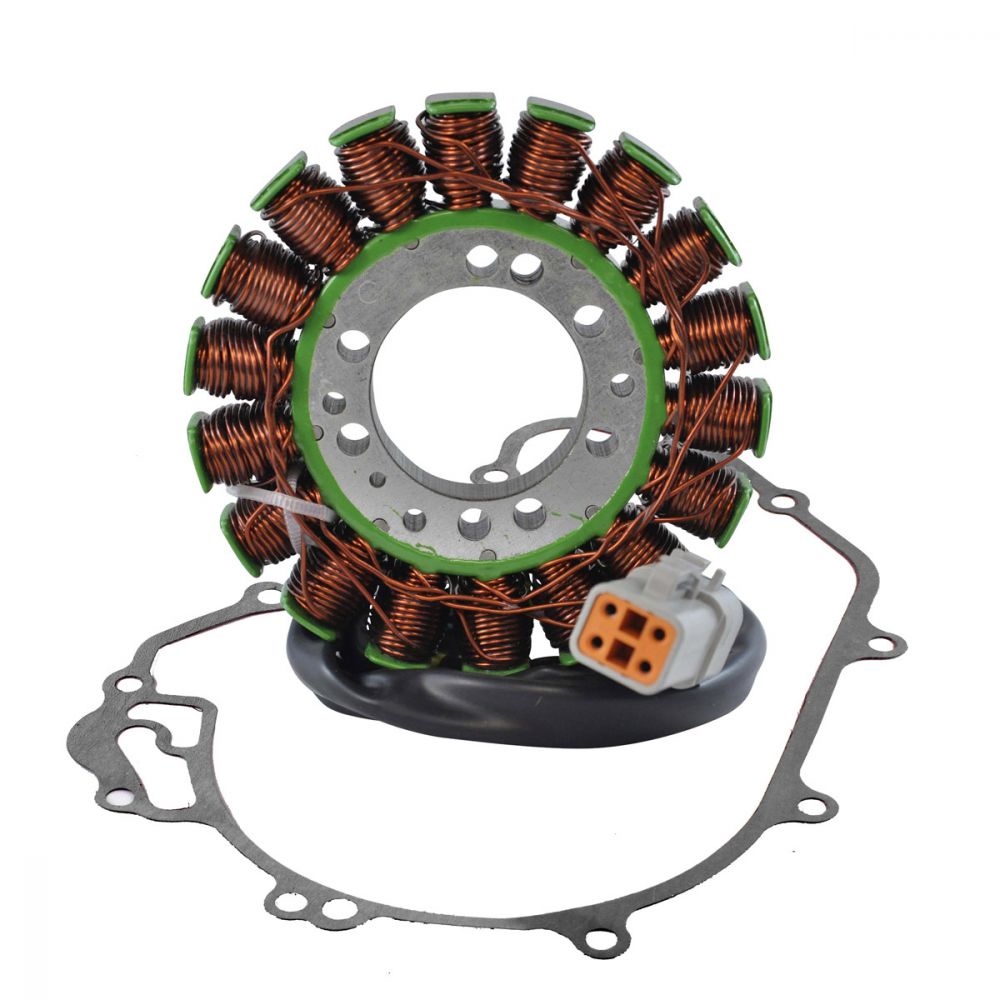

RMStator Stator Stator And Crankcase Cover Gasket Kit RMS900-100154

Brand New Kit Stator + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 41mm
Exterior diameter: 115mm
Thickness: 17mm
Length of wires stator to grommet: 120mm
Length of wires grommet to plug: 800mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.4ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-100154

Fitment:

• 2011 Lynx Rave RE 800 R
• 2007-2012 Lynx YETI Pro V-800
• 2006-2009 Lynx YETI V-800
• 2007-2009 Ski-doo Expedition V800 TUV V 4-TEC EFI L/C
• 2009 Ski-doo Legend V800 Trail EFI L/C
• 2007-2010 Ski-doo Skandic V800 SWT EFI L/C
• 2009 Ski-doo Skandic V800 Tundra LT 4-TEC EFI L/C

Note: Image is for reference only, actual product may vary slightly.
