RMStator High Output Stator Kit With And Crankcase Cover Gasket RMS900-103541
Customer Ratings
RMStator High Output Stator Kit With And Crankcase Cover Gasket RMS900-103541
RMStator High Output Stator Kit With And Crankcase Cover Gasket RMS900-103541

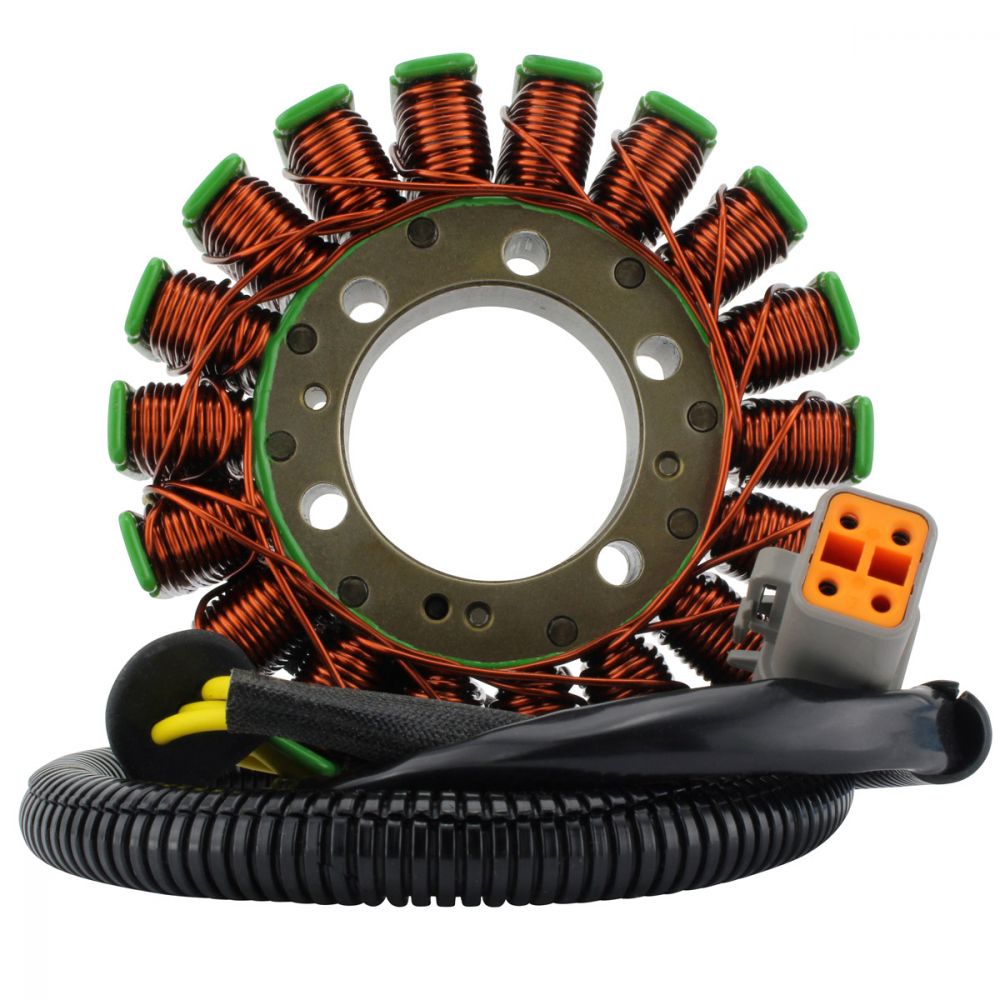

Brand new aftermarket High Output Stator + Crankcase Cover Gasket Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 560 mm
Length of pickup coil's wire to grommet: 250 mm
Other specifications :
Number of wires: 5
Number of plugs: 2
Number of terminals: 5
Alternator: Green to White = 0.4 ohms +/-20%
Pick up: Blue/Yellow to Green/Red = 230 ohms +/-20%
Source: Black/Red to Brown = 90 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-103541
Fitment:
- 1999-2008 Honda Sportrax 400 TRX400EX 2x4
- 2009 Honda TRX400X 2x4
- 2012-2013 Honda TRX400X 2x4
Note: Image is for reference only, actual product may vary slightly.
