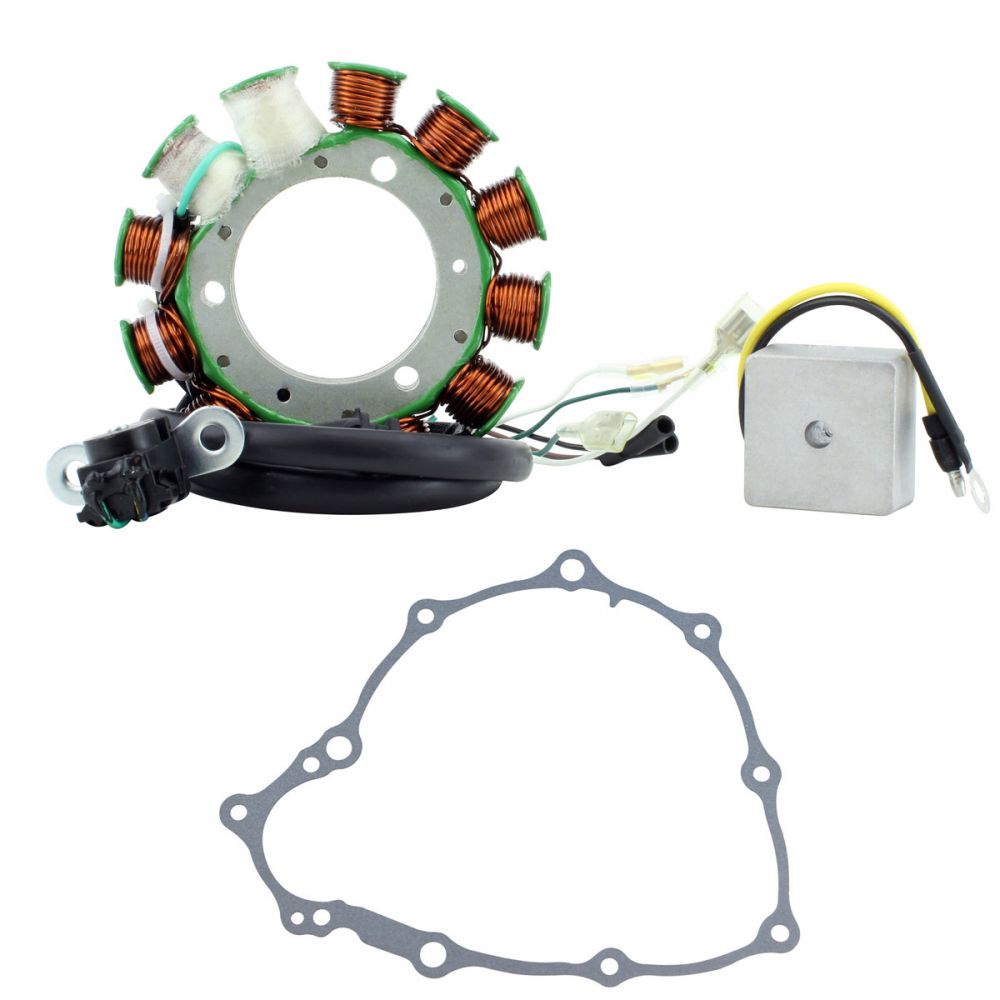

RMStator High Output Stator Kit With And Crankcase Cover Gasket For 1996-2004 Honda XR400R RMS900-103542
Customer Ratings
RMStator High Output Stator Kit With And Crankcase Cover Gasket For 1996-2004 Honda XR400R RMS900-103542
RMStator High Output Stator Kit With And Crankcase Cover Gasket For 1996-2004 Honda XR400R RMS900-103542
High Output Stator 200 W
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm
Other specifications:
Number of wires : 8
Number of plugs : 7
Number of pins: 8
Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%
Heavy Duty AC Voltage Regulator Rectifier
Dimensions :
Width : 45 mm
Length : 45 mm
Height: 20 mm
Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?
Please note : this regulator has two wires, yellow to power and black to ground.
Technical Data
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm
Other specifications:
Number of wires : 8
Number of plugs : 7
Number of pins: 8
Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%
Dimensions :
Width : 45 mm
Length : 45 mm
Height: 20 mm
Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?
Please note : this regulator has two wires, yellow to power and black to ground.
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-103542
Fitment:
- 1996-2004 Honda XR400R
Note: Image is for reference only, actual product may vary slightly.
