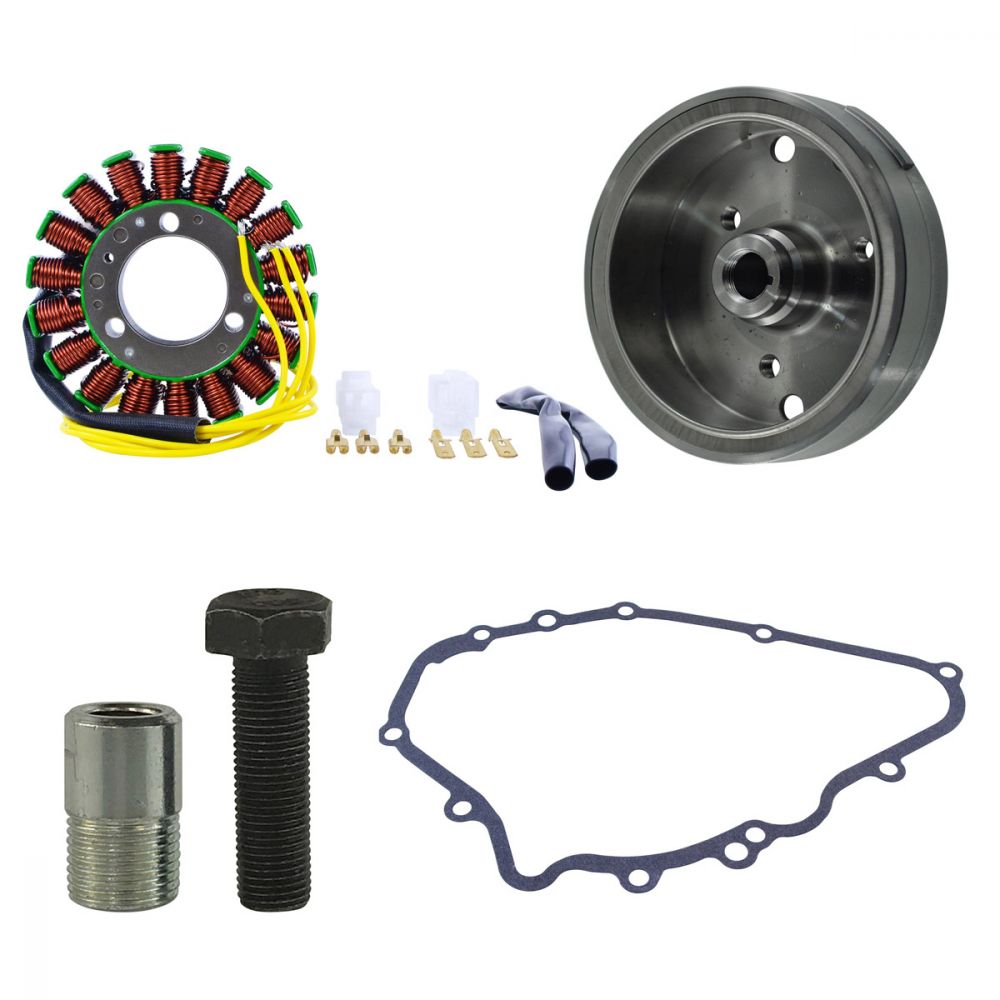

RMStator Generator Stator Kit with Crankcase Gasket, Flywheel, with Puller
Customer Ratings
RMStator Generator Stator Kit with Crankcase Gasket, Flywheel, with Puller
RMStator Generator Stator Kit with Crankcase Gasket, Flywheel, with Puller
Brand New Flywheel + Flywheel Puller + Gasket + Generator Stator Kit
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Magneto Flywheel Rotor
Introducing our newest heavy duty flywheel rotor for Kawasaki 400 & 500 cc Motorcycles.
Anyone who rides or repairs a Kawasaki 400 & 500 cc Motorcycles is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.
For years, service shops & dealerships have offered low cost repairs for Kawasaki flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues!
The common repair is using JB Weld? Marine Blue Epoxy to reattach the loose original magnets, or to install new ones. Epoxy fixes do repair flywheels in short term, if they are done correctly. However, this kind of repair can easily cause immediate problems, and impact long term reliability of your ATV.
A Heavy Duty Flywheel to the rescue!
New RMSTATOR&trade heavy-duty flywheel rotor for Kawasaki Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.
Features
Built to OEM size
Fits precisely in your ride: install it and forget it.Improved epoxy
Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.High grade steel capping
Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.Precise balancing
Eliminates crankshaft vibrations for longer engine longevityShop with confidence
All products are tested.
Don't waste time with temporary solutions, and start fixing your ride like a pro!
Why cheap repairs won't work?
Quick stronger epoxy fixes do repair flywheels in short term. It might however impair long term performance and reliability of your ride.
Remaining OEM magnets:
Original magnets remaining can still come loose at any time.
Magnet alignment:
The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.
Magnet spacing:
Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damage.
Incorrect replacement magnets:
The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.
Wrong epoxy properties:
Epoxy that is not rated to permanently handle high temperatures and oil immersion can quickly cause a serious failure.
Oil contamination:
Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.
All these reasons make us strongly recommend that you replace your broken flywheel with a new 400+ OEM one or our new heavy duty flywheel.
Flywheel Puller
- 18 mm x 1.5 hand male
- Includes crankshaft thread protector cap
Brand new aftermarket Generator Stator
- Direct replacement to your original unit
- You must re-install your original grommet (see picture)
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
Technical Data
Flywheel Dimensions
Exterior Diameter: 129 mm
Interior Diameter: 106 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 25 mm
Thickness (exterior): 42 mm
Thickness (interior): 33 mm
Flywheel Puller MP18 Dimensions
Length: 30 mm
Exterior Diameter: 18 mm
Interior Diameter: 10.95 mm
Generator Stator Dimensions
Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 14 mm
Length of wires stator to grommet : 480 mm
Other specifications :
Number of wires : 3
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-104873
Fitment:
- 1987-1992 Kawasaki Ninja 500 EX500A
- 1985-1990 Kawasaki Vulcan 454 EN450
- 1990-1996 Kawasaki Vulcan 500 EN500A
Note: Image is for reference only, actual product may vary slightly.
