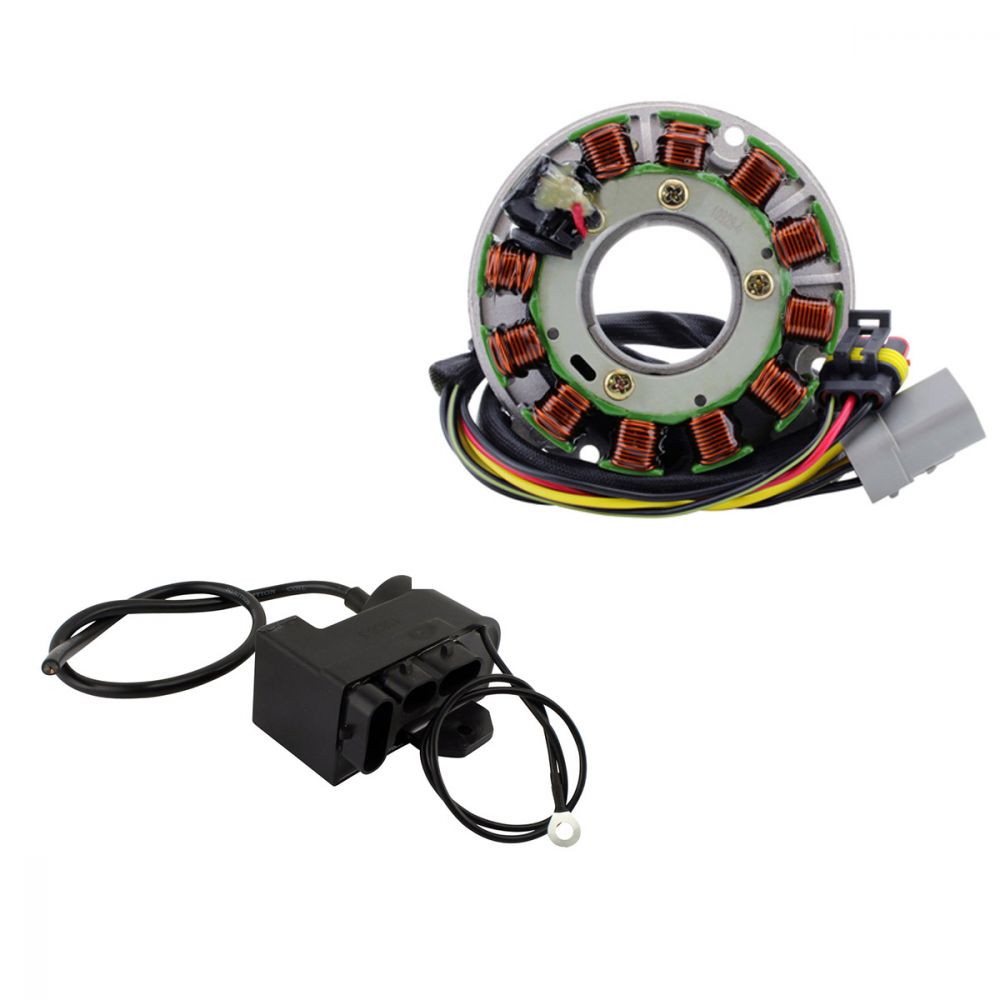

RMStator Stator Ignition CDI Box Coil Kit RMS900-105918
RMStator Stator Ignition CDI Box Coil Kit RMS900-105918
Brand new aftermarket Stator + CDI Box Ignition Coil Calibration Module
- Our part is a Plug-and-play unit, direct fit, and easy to install
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
CDI coil module
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Back Plate included
- All shipped products are tested
Technical Data
CDI Box Ignition Coil Calibration Module Dimensions
Height: 44 mm
Length: 94 mm
Width: 48 mm
Fixation holes center to center: 72 mm
Other specifications:
Number of plugs: 3
Number of pins: 9
Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this; we recommend that you rule everything else out before replacing the CDI box.
Stator Dimensions
Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to plug : 500 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black 8 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-105918
Fitment:
- 2006-2008 Ski-doo Freestyle 300F Electric Start Carb F/C
- 2006-2007 Ski-doo Freestyle 300F Manual Start Carb F/C
- 2006-2009 Ski-doo Skandic 300F Tundra Crank Start Carb F/C
- 2006-2009 Ski-doo Skandic 300F Tundra Electric Start Carb F/C
- 2000 Ski-doo Tundra R 280 Carb F/C
- 2002-2005 Ski-doo Tundra R 280 Carb F/C
Note: Image is for reference only, actual product may vary slightly.
