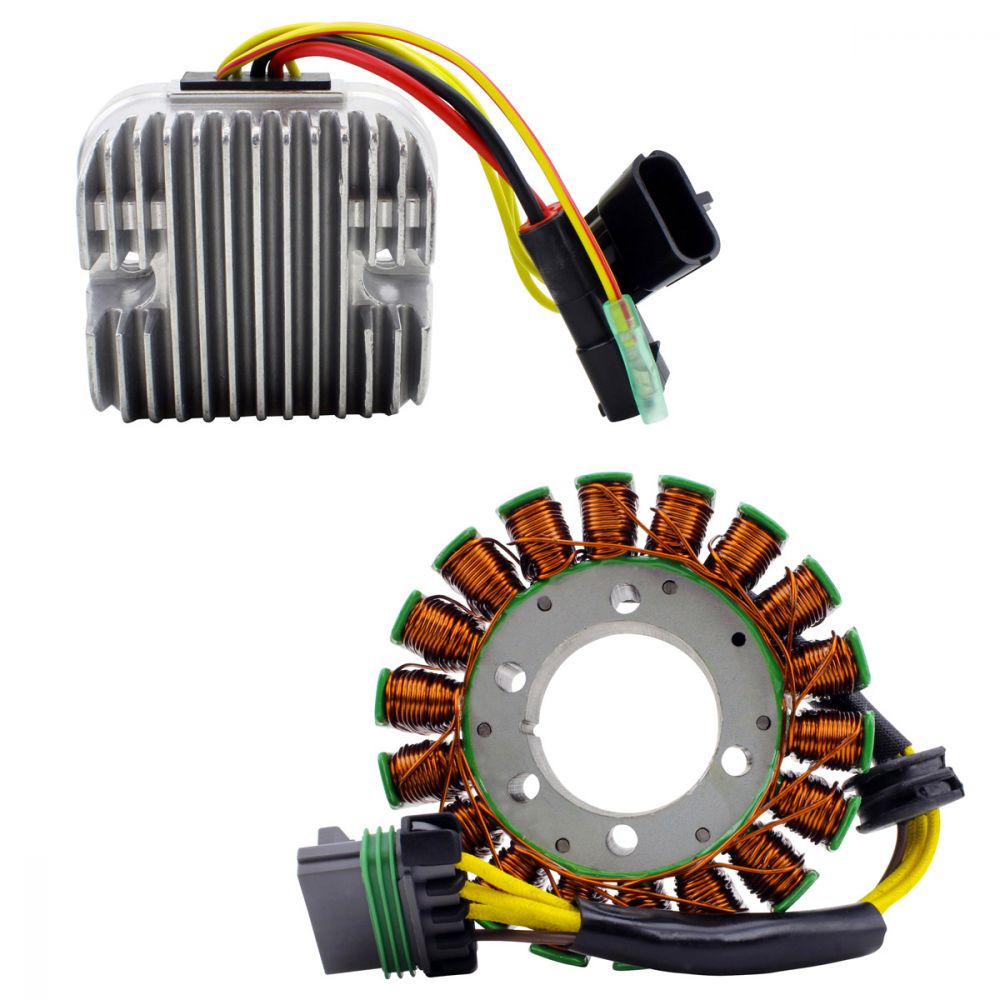

RMStator Mosfet Regulator Stator + Mosfet Regulator Kit RMS900-106168
Customer Ratings
RMStator Mosfet Regulator Stator + Mosfet Regulator Kit RMS900-106168
RMStator Mosfet Regulator Stator + Mosfet Regulator Kit RMS900-106168
Brand new aftermarket Stator + Mosfet Regulator Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new aftermarket Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Technical Data
Stator
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 106 mm
Thickness : 24 mm
Length of wires stator to grommet : 45 mm
Length of wires grommet to plug : 100 mm
Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4
Number of poles : 18
Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.4 ohms +-20%
Voltage Regulator
Dimensions:
Width: 110 mm
Length: 111 mm
Height: 51 mm
Wires length: 157 mm & 115 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 3
Number of pins: 6
Number of wires: 6
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-106168
Fitment:
- 2010 Polaris Ranger 800 EFI
- 2010 Polaris RZR 4 800
- 2010 Polaris RZR 800 EFI
- 2010 Polaris RZR S 800 EFI
- 2012 Polaris Sportsman 800 6x6 EFI
- 2014 Polaris Sportsman 800 6x6 EFI
- 2010-2014 Polaris Sportsman 800 EFI
Note: Image is for reference only, actual product may vary slightly.
