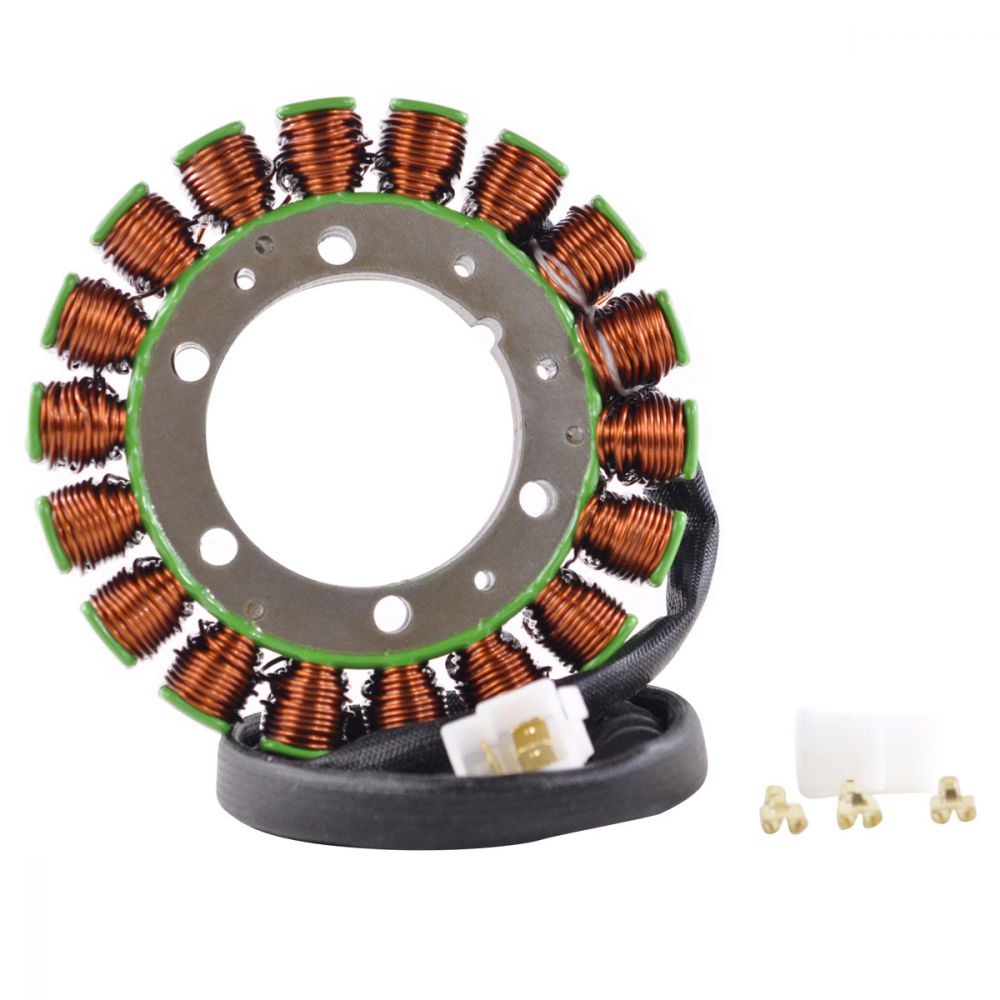

RMStator Stator Voltage Regulator Kit RMS900-106169

Brand new aftermarket Stator + Voltage regulator rectifier Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• No assembly required
• All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of of copper winding, resistant to 200 degrees Celsius
• Rubber grommet included

Voltage regulator rectifier

• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

Technical Data

Stator Dimensions
Interior diameter : 40 mm
Exterior diameter : 106 mm
Thickness : 24 mm
Length of wires stator to grommet : 45 mm
Length of wires grommet to plug : 100 mm

Other specifications :

Number of wires : 4
Number of plugs : 1
Number of pins : 4

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +/-20%

Voltage regulator rectifier Dimensions
Width : 30 mm
Length : 95 mm
Height: 110 mm
Fixation holes center to center :78 mm

Other specifications :
Number of plugs : 2
Number of pins : 5

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-106169

Fitment:

• 2012 Arctic Cat Alterra TRV 550 4x4 XT EPS
• 2015-2017 Polaris Ranger 800 6x6
• 2011-2014 Polaris Ranger 800 EFI
• 2011-2014 Polaris Ranger Crew 800
• 2011-2014 Polaris RZR 4 800
• 2011-2014 Polaris RZR 800 EFI
• 2011-2014 Polaris RZR S 800 EFI

Note: Image is for reference only, actual product may vary slightly.
