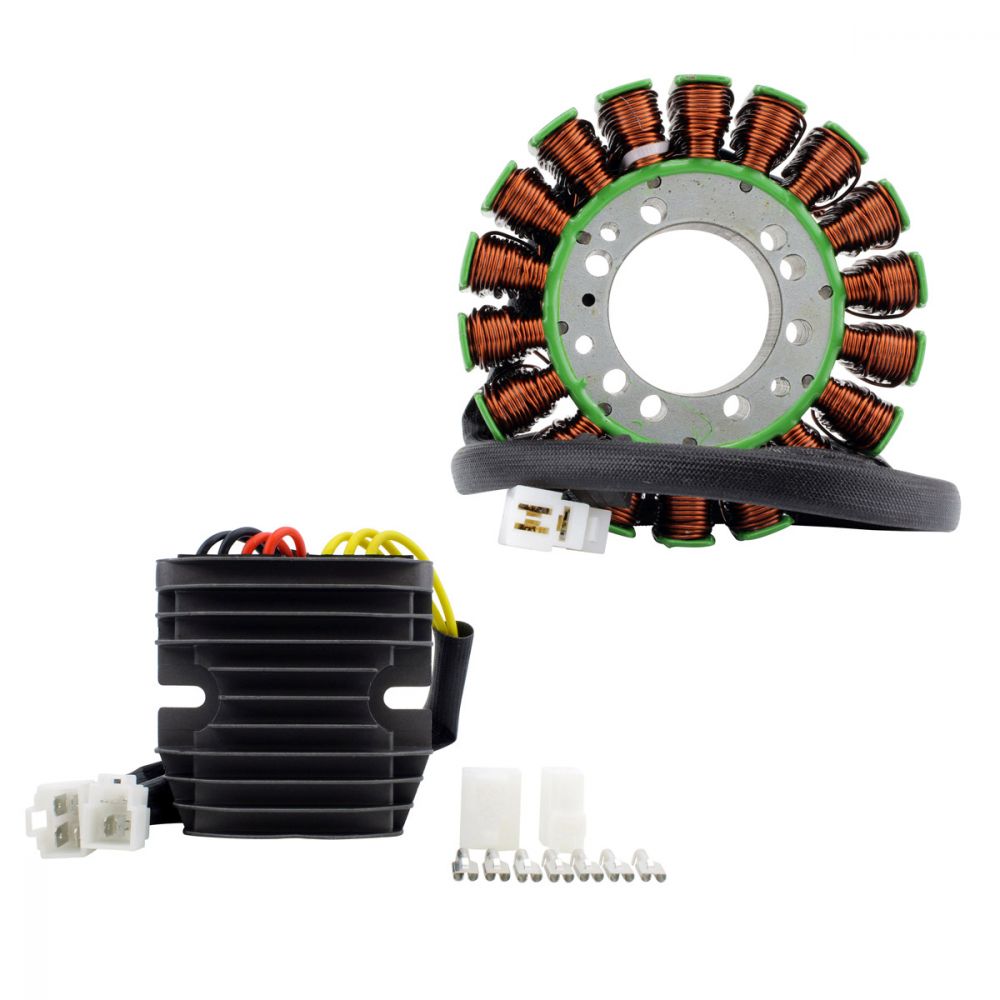

RMStator Mosfet Regulator Stator + Mosfet Regulator Kit RMS900-106211
Customer Ratings
RMStator Mosfet Regulator Stator + Mosfet Regulator Kit RMS900-106211
RMStator Mosfet Regulator Stator + Mosfet Regulator Kit RMS900-106211
Brand new aftermarket Stator + Mosfet Regulator Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Brand new aftermarket Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Technical Data
STATOR Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 22 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 600 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator 3p : Between each Black = 0.5 ohms +-20%
REGULATOR Dimensions:
Width: 90 mm
Length: 94 mm
Height: 30 mm
Wires length: 320 mm & 235 mm
Fixation holes center to center: 75 mm
Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-106211
Fitment:
- 2005-2012 Triumph Speed Triple 1050
- 2011-2012 Triumph Sprint GT 1050
- 2005-2012 Triumph Sprint ST 1050
- 2007-2012 Triumph Tiger 1050
Note: Image is for reference only, actual product may vary slightly.
