RMStator Generator Stator Kit With Cover Gasket RMS900-106308
Customer Ratings
RMStator Generator Stator Kit With Cover Gasket RMS900-106308
RMStator Generator Stator Kit With Cover Gasket RMS900-106308
YOU SAVE 15% off the items price combined, when buying a kit.
Brand new aftermarket Stator + Gasket + Voltage Regulator Rectifier Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

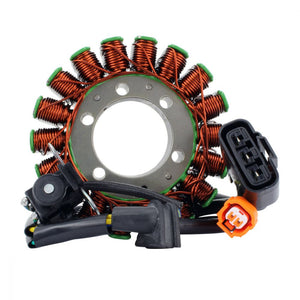

Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Voltage Regulator Rectifier
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
Technical Data
Stator Dimensions :
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 20 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 435 mm & 475 mm
Length of pickup coil's wire to grommet : 175 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to White = 208 ohms +/-20%
Regulator Dimensions :
Width : 93 mm
Length : 102 mm
Height : 27 mm
Fixation holes center to center : 72 mm
Other specifications :
Number of plugs : 1
Number of pins : 6
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-106308
Fitment:
- 2006-2007 Suzuki King Quad 700 LTA700X 4x4
- 2008-2009 Suzuki King Quad 750 LTA750X 4x4 AXi
- 2011-2017 Suzuki King Quad 750 LTA750X 4x4 AXi
Note: Image is for reference only, actual product may vary slightly.
