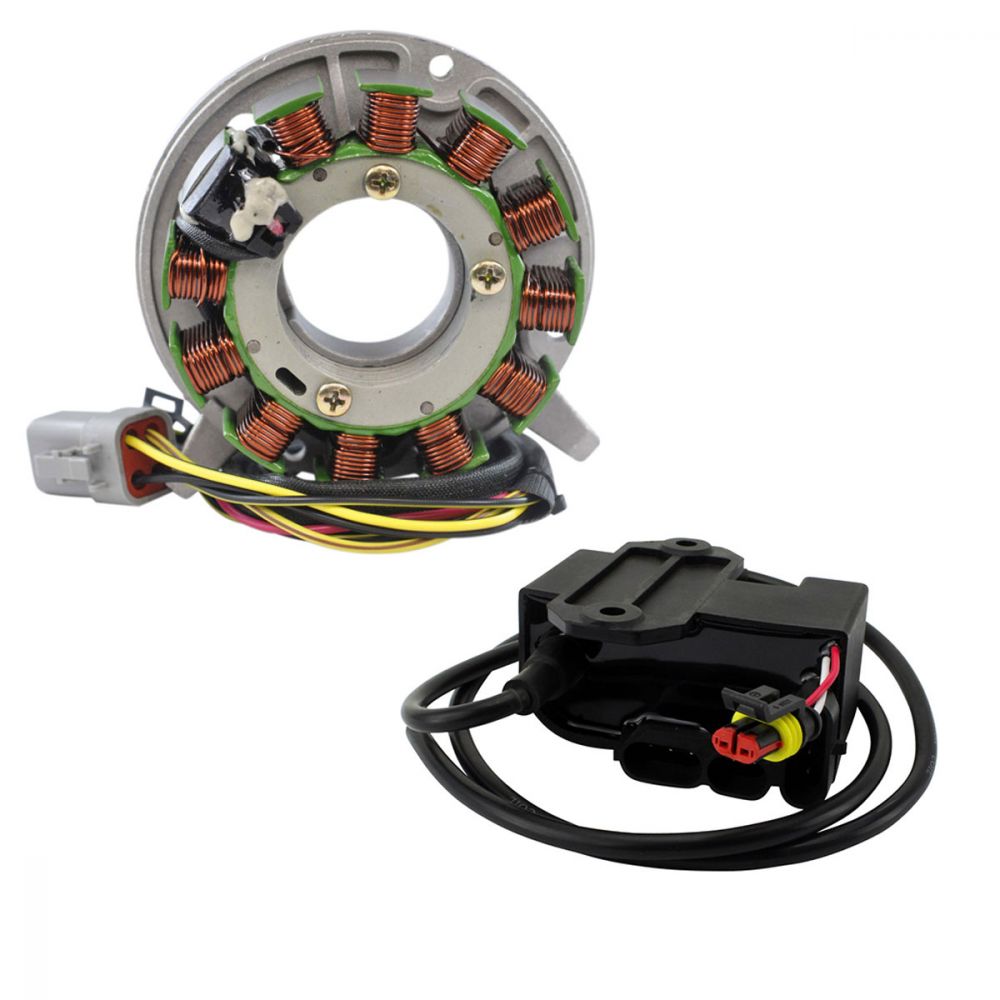

RMStator Stator Ignition CDI Box Coil Kit RMS900-106631

Brand new aftermarket Stator + CDI Box Ignition Coil Calibration Module Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Back Plate included

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Technical Data

Stator Dimensions:
Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to plug : 500 mm

Other specifications :

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :

Alternator : Between each Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black = 8 ohms +/-20%

CDI Box Ignition Coil Calibration Module Dimensions:
Height: 49 mm
Length: 95 mm
Width: 88 mm
Fixation holes center to center: 72 mm

Other specifications:

Number of plugs: 4
Number of pins: 7

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this; we recommend that you rule everything else out before replacing the CDI box.

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-106631

Fitment:

• 2005 Ski-doo Expedition 550 Electric Start Carb F/C
• 2007-2008 Ski-doo Expedition 550F Sport Carb F/C
• 2011 Ski-doo Expedition 550F Sport Carb F/C
• 2013 Ski-doo Expedition 550F Sport Carb F/C
• 2006 Ski-doo Expedition 550F Sport Electric Start Carb F/C
• 1999-2001 Ski-doo Formula 380 Deluxe Fan Carb
• 2000-2001 Ski-doo Formula 500 Deluxe Fan Carb
• 2000 Ski-doo Formula S 380 Carb F/C
• 2008 Ski-doo Freestyle 550F Back Country Crank Start Carb F/C
• 2007-2009 Ski-doo Freestyle 550F Back Country Electric Start Carb F/C
• 2008 Ski-doo Freestyle 550F Park Crank Start Carb F/C
• 2008 Ski-doo Freestyle 550F Park Electric Start Carb F/C
• 2003 Ski-doo Grand Touring 380F Fan
• 2003 Ski-doo Grand Touring 550 Fan Carb
• 2010-2011 Ski-doo Grand Touring 550F Sport Carb F/C
• 2013 Ski-doo Grand Touring 550F Sport Carb F/C
• 2006 Ski-doo GSX 380F Fan Carb
• 2005-2010 Ski-doo GSX 550F Fan Carb
• 2006 Ski-doo GTX 380F Fan Carb
• 2005-2007 Ski-doo GTX 550F Fan Carb
• 2003 Ski-doo Legend 380F Fan Carb
• 2004 Ski-doo Legend 550 Fan Carb
• 2001 Ski-doo MXZ 380 Fan Carb
• 2003-2004 Ski-doo MXZ 380 Fan Carb
• 2006 Ski-doo MXZ 380 Fan Carb
• 2001 Ski-doo MXZ 440 Fan Carb
• 2001 Ski-doo MXZ 500F Fan Carb
• 2003-2006 Ski-doo MXZ 550 Fan Carb
• 2011 Ski-doo MXZ 550F Sport Carb F/C
• 2013 Ski-doo MXZ 550F Sport Carb F/C
• 2010-2011 Ski-doo MXZ 550F TNT Carb F/C
• 2006 Ski-doo MXZ X 550 Carb L/C
• 2007-2009 Ski-doo MXZ X 550 Electric Start Carb F/C
• 2010-2011 Ski-doo Renegade 550F Sport Carb F/C
• 2013 Ski-doo Renegade 550F Sport Carb F/C
• 1999-2000 Ski-doo Skandic 380 Carb F/C
• 1999-2000 Ski-doo Skandic 500 Carb F/C
• 2004-2010 Ski-doo Skandic 550F SUV Carb F/C
• 2004-2008 Ski-doo Skandic 550F SWT Carb F/C
• 2008-2010 Ski-doo Skandic 550F Tundra Carb F/C
• 2010 Ski-doo Skandic 550F Tundra LT Carb F/C
• 2004 Ski-doo Skandic 550F Tundra Sport
• 2010 Ski-doo Skandic 550F Tundra Sport Carb F/C
• 2004-2011 Ski-doo Skandic 550F WT
• 2013 Ski-doo Skandic 550F WT
• 2001 Ski-doo Summit 500 Carb F/C
• 2003-2009 Ski-doo Summit 550 Fan Carb
• 2001 Ski-doo Touring 380F Fan Carb
• 2001 Ski-doo Touring 500F Fan Carb
• 1998-2000 Ski-doo Touring E 500 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
