RMStator Stator Kit With RMS900-106771
Customer Ratings

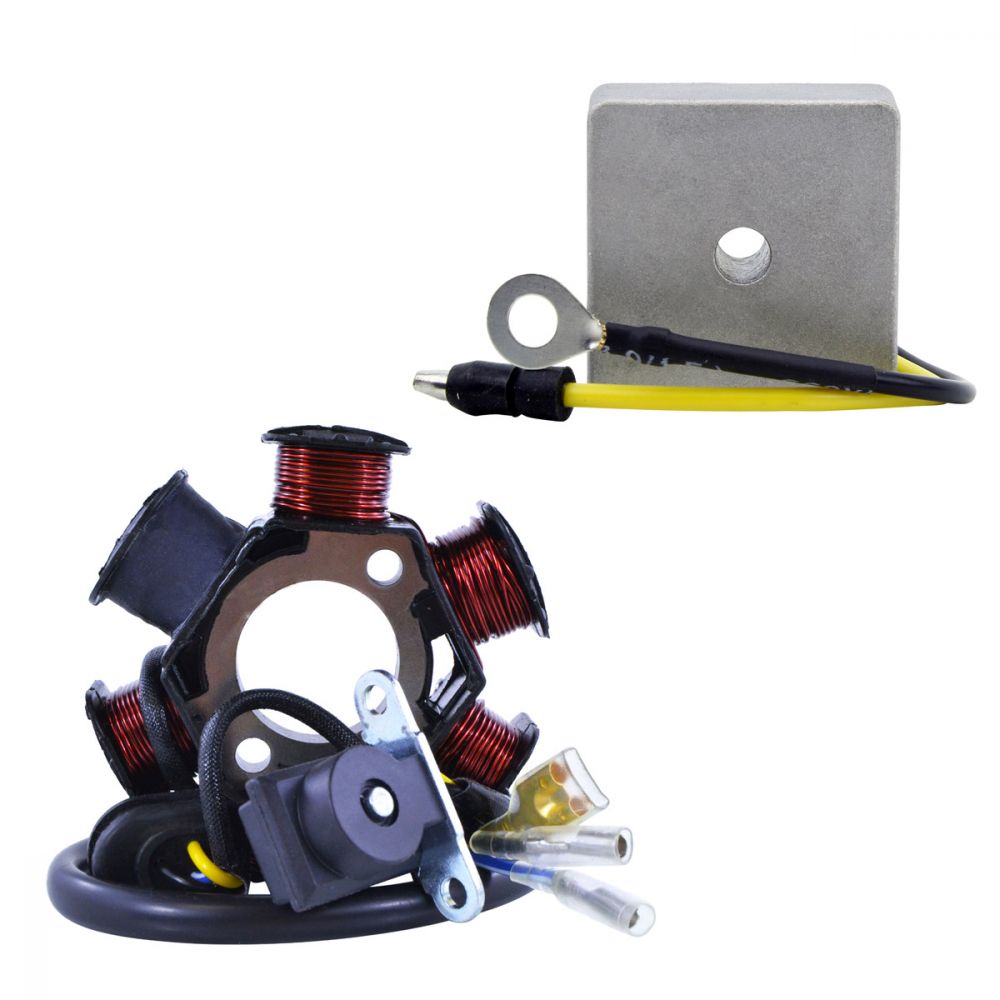

RMStator Stator Kit With RMS900-106771
RMStator Stator Kit With RMS900-106771
Brand new Kit Lighting Stator + AC Voltage Regulator Rectifier
- All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part
- All products shipped are tested
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Rubber grommet included
- 12 Volts regulator used by Baja winners
- Heavy duty and improved regulator rectifier
- For use with all standard halogen and quartz lights
- Precise voltage control, eliminates light burnout
- Reduce flickering and dimming
- Simple installation
- Works with all other OEM part
- Rated at 225 watts
Technical Data
Stator Dimensions:
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 32 mm
Length of wires stator to grommet : 185 mm
Length of wires grommet to terminals : 355 mm
Length of pickup coil's wire to grommet : 78 mm
Other specifications :
Number of wires : 3
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow to Ground = 0.4 ohms +-20%
Pickup : Blue/Yellow to Ground = 120 ohms +-20%
Source : Black/Red to Ground = 500 ohms +-20%
Voltage Regulator Rectifier Dimensions:
Width : 45 mm
Length : 45 mm
Height: 20 mm
Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?
Please note : this regulator has two wires, yellow to power and black to ground.
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-106771
Fitment:
- 2004-2009 Honda CRF100F
- 2011-2013 Honda CRF100F
- 2004-2009 Honda CRF80F
- 2011-2013 Honda CRF80F
- 1992-2003 Honda XR100R
- 1993-2003 Honda XR80R
Note: Image is for reference only, actual product may vary slightly.
