RMStator Flywheel RMS900-106862
RMStator Flywheel RMS900-106862

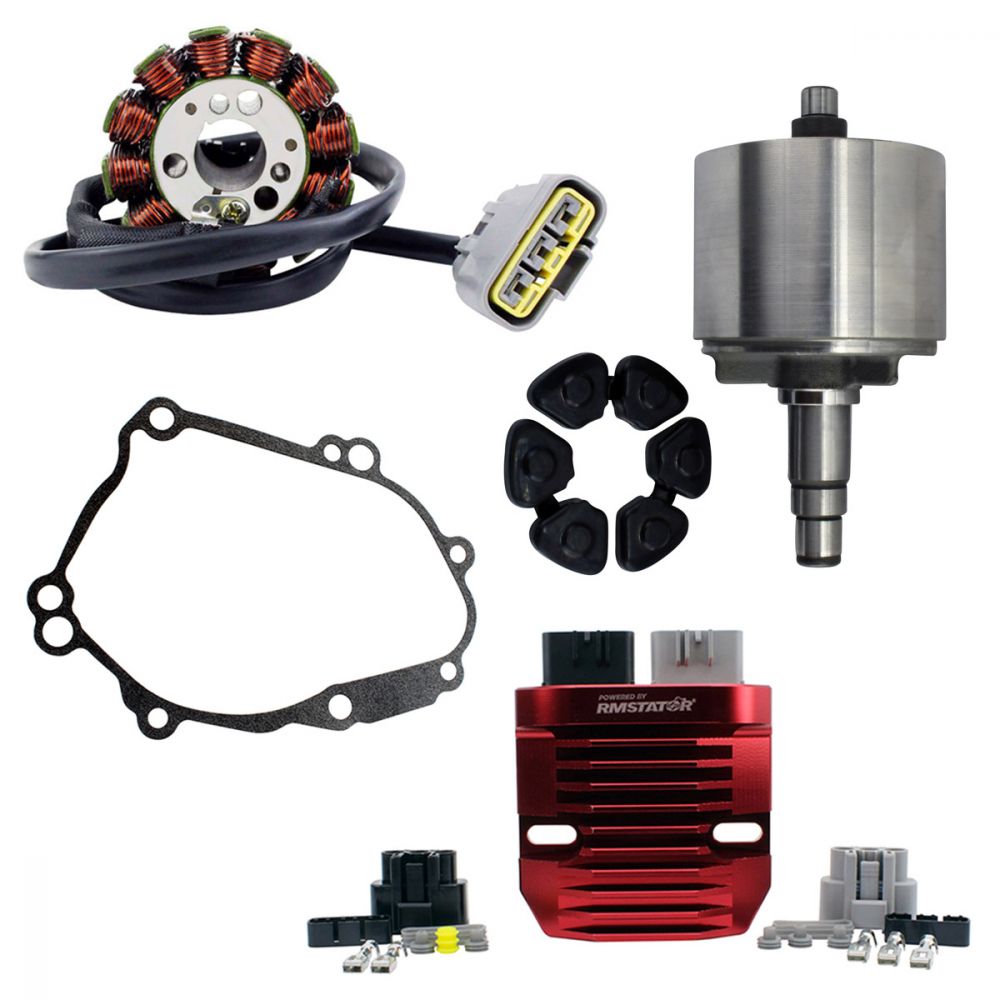

Brand new aftermarket Stator + Flywheel + Mosfet Regulator + Gasket + Connectors Kit
- Crankcase cover gasket included
- Connector kit included
- All products are tested
- All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
Brand new Magneto Flywheel Rotor
Introducing our newest Heavy Duty Flywheel Rotor For Yamaha Motorcycles
Anyone who rides or repairs a Yamaha YZF R1, FZ1 or FZ8 is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.
A Heavy Duty Flywheel to the rescue!
New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.
Features
Built to OEM size
Fits precisely in your ride: install it and forget it.Improved epoxy
Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.High grade steel capping
Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.Precise balancing
Eliminates crankshaft vibrations for longer engine longevity.Shop with confidence
Two years warranty. All products are tested.
Don't waste time with temporary solutions, and start fixing your ride like a pro!
Why cheap repairs won't work?
Quick stronger epoxy fixes do repair flywheels in short term. It might however impair long term performance and reliability of your ride.
Remaining OEM magnets:
Original magnets remaining can still come loose at any time.
Magnet alignment:
The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.
Magnet spacing:
Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damages.
Incorrect replacement magnets:
The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.
Wrong epoxy properties:
Epoxy that is not rated to permanently handle high temperatures can quickly cause a serious failure.
Oil contamination:
Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.
All these reasons make us strongly recommend that you replace your broken flywheel with our new heavy duty flywheel.
Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator
Our new red machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Technical Data
Stator Dimensions :
Exterior diameter : 68 mm
Thickness : 42 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%
Mosfet Regulator Dimensions :
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?
Flywheel Dimensions :
Exterior Diameter: 80 mm
Interior Diameter: 69 mm
Interior Diameter Center Housing: 12 mm
Exterior Diameter Center Housing: 18 mm
Thickness (exterior): 11 mm
Thickness (interior): 6 mm
Diameter of the Shaft largest to the narrowest:
- 26 mm
- 20 mm
- 18 mm
- 15 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-106862
Fitment:
- 2006-2015 Yamaha FZ1 1000
- 2006-2015 Yamaha FZ1 N Fazer 1000
- 2011-2012 Yamaha FZ8 800
- 2011-2012 Yamaha FZ8 N Fazer 800
- 2007-2008 Yamaha YZF R1 1000
Note: Image is for reference only, actual product may vary slightly.
