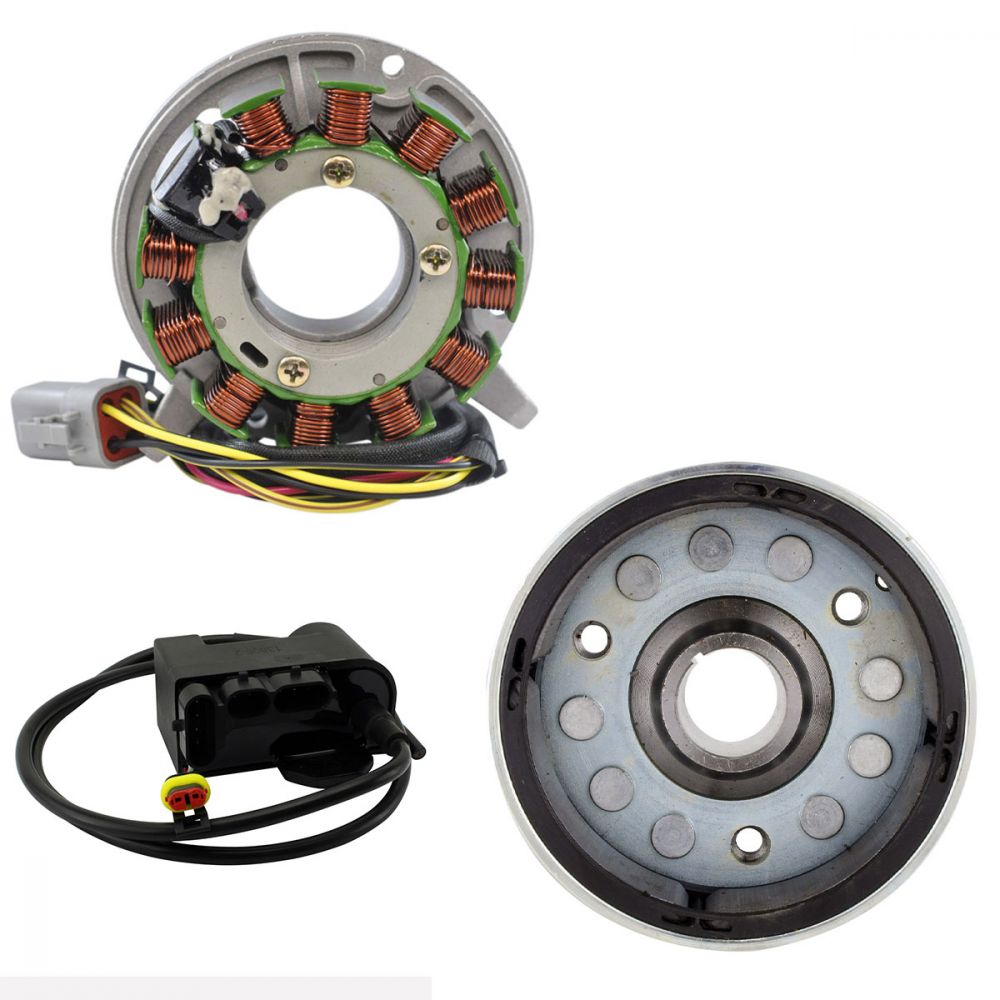

RMStator Stator Kit With Flywheel , CDI Box , Ignition Coil Calibration Module

Brand new aftermarket Stator + CDI Box Ignition Coil Calibration Module + Flywheel Kit

• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Back Plate included

• Our part is a Plug-and-play unit, direct fit, and easy to install
• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

This flywheel can be used as a direct replacement to the OEM.

Technical Data

Stator Dimensions :

Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to plug : 500 mm

Other specifications :

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :

Alternator : Between each Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black = 8 ohms +/-20%

Height: 49 mm
Length: 95 mm
Width: 88 mm
Fixation holes center to center: 72 mm

Other specifications:

Number of plugs: 4
Number of pins: 7

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model.
Because of this; we recommend that you rule everything else out before replacing the CDI box.

Inner Diameter: 96 mm
Outer Diameter: 116 mm
Total Height: 50 mm
Inside Height: 36 mm
Center Housing Depth: 23.50 mm
Center Housing Widest: 27.50 mm
Center Housing Thickness: 24.50 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-107043

Fitment:

• 2005 Ski-doo Expedition 550 Electric Start Carb F/C
• 2007-2008 Ski-doo Expedition 550F Sport Carb F/C
• 2011 Ski-doo Expedition 550F Sport Carb F/C
• 2013 Ski-doo Expedition 550F Sport Carb F/C
• 2006 Ski-doo Expedition 550F Sport Electric Start Carb F/C
• 2007-2009 Ski-doo Freestyle 550F Back Country Electric Start Carb F/C
• 2008 Ski-doo Freestyle 550F Park Crank Start Carb F/C
• 2008 Ski-doo Freestyle 550F Park Electric Start Carb F/C
• 2003 Ski-doo Grand Touring 380F Fan
• 2003 Ski-doo Grand Touring 550 Fan Carb
• 2010-2011 Ski-doo Grand Touring 550F Sport Carb F/C
• 2013 Ski-doo Grand Touring 550F Sport Carb F/C
• 2006 Ski-doo GSX 380F Fan Carb
• 2005-2008 Ski-doo GSX 550F Fan Carb
• 2010 Ski-doo GSX 550F Fan Carb
• 2006 Ski-doo GTX 380F Fan Carb
• 2005-2007 Ski-doo GTX 550F Fan Carb
• 2003 Ski-doo Legend 380F Fan Carb
• 2004 Ski-doo Legend 550 Fan Carb
• 2003-2004 Ski-doo MXZ 380 Fan Carb
• 2006 Ski-doo MXZ 380 Fan Carb
• 2003-2006 Ski-doo MXZ 550 Fan Carb
• 2011 Ski-doo MXZ 550F Sport Carb F/C
• 2013 Ski-doo MXZ 550F Sport Carb F/C
• 2010-2011 Ski-doo MXZ 550F TNT Carb F/C
• 2009 Ski-doo MXZ X 550 Electric Start Carb F/C
• 2010-2011 Ski-doo Renegade 550F Sport Carb F/C
• 2013 Ski-doo Renegade 550F Sport Carb F/C
• 2004 Ski-doo Skandic 550F SUV Carb F/C
• 2006-2010 Ski-doo Skandic 550F SUV Carb F/C
• 2004-2008 Ski-doo Skandic 550F SWT Carb F/C
• 2008 Ski-doo Skandic 550F Tundra Carb F/C
• 2010 Ski-doo Skandic 550F Tundra Carb F/C
• 2004-2011 Ski-doo Skandic 550F WT
• 2013 Ski-doo Skandic 550F WT
• 2003-2009 Ski-doo Summit 550 Fan Carb

Note: Image is for reference only, actual product may vary slightly.
