RMStator Stator Kit With Regulator Rectifier and External Ignition Coil
Customer Ratings
RMStator Stator Kit With Regulator Rectifier and External Ignition Coil
RMStator Stator Kit With Regulator Rectifier and External Ignition Coil

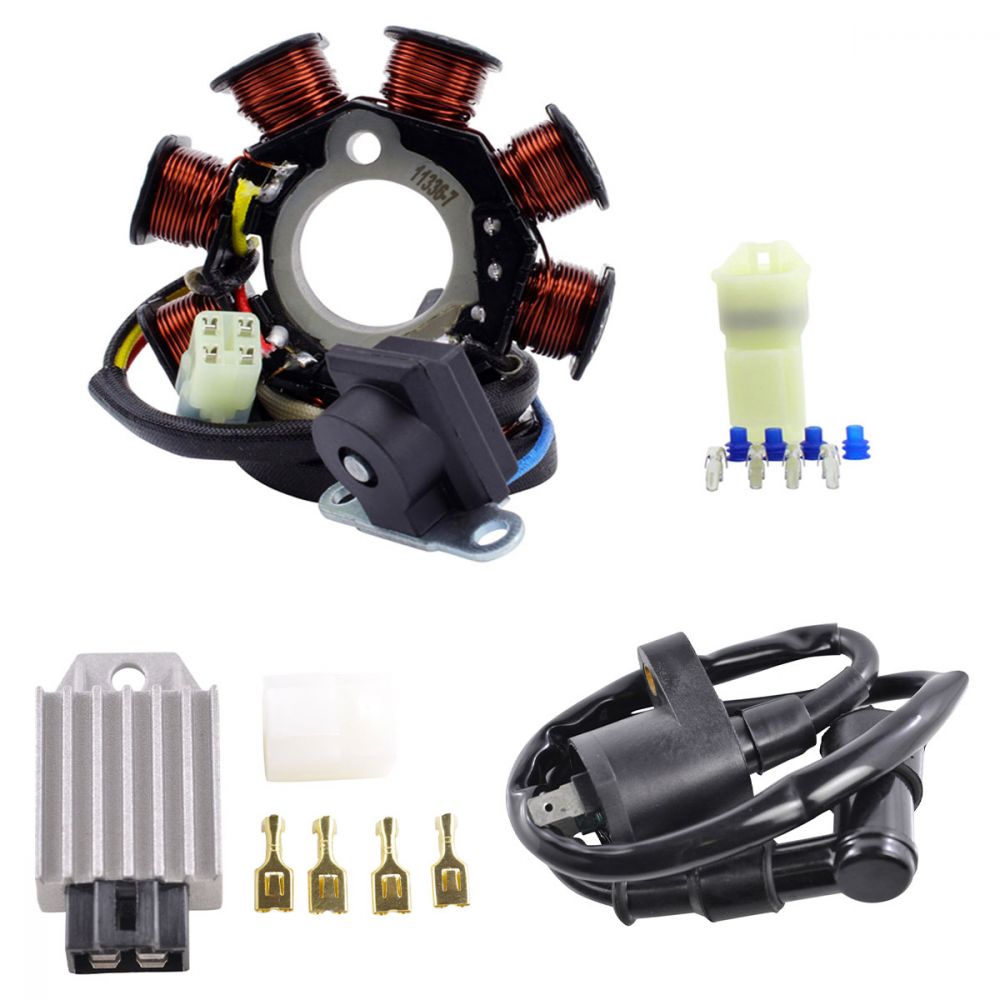

Brand new aftermarket Stator + Voltage Regulator Rectifier + External ignition coil Kit
- All products shipped are tested
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- No assembly required
- Higher grade of electric components.
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
Technical Data
Stator :
Interior diameter : 29 mm
Exterior diameter : 88 mm
Thickness : 12 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 265 mm
Length of pickup coil's wire to grommet : 75 mm
Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4
Wire to wire resistance :
Alternator : Red to Black = 1 ohms +/-20%
Alternator : Yellow to Black = 0.8 ohms +/-20%
Pickup : Blue to Black = 120 ohms +/-20%
Width : 35 mm
Length : 68 mm
Height : 20 mm
Other specifications :
Number of plugs : 1
Number of pins : 4
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-107052
Fitment:
- 2008-2019 Polaris Outlaw 50
- 2007-2014 Polaris Outlaw 90
- 2016 Polaris Outlaw 90
- 2007 Polaris Predator 50
- 2010-2014 Polaris RZR 170
- 2007-2014 Polaris Sportsman 90
- 2016 Polaris Sportsman 90
Note: Image is for reference only, actual product may vary slightly.
