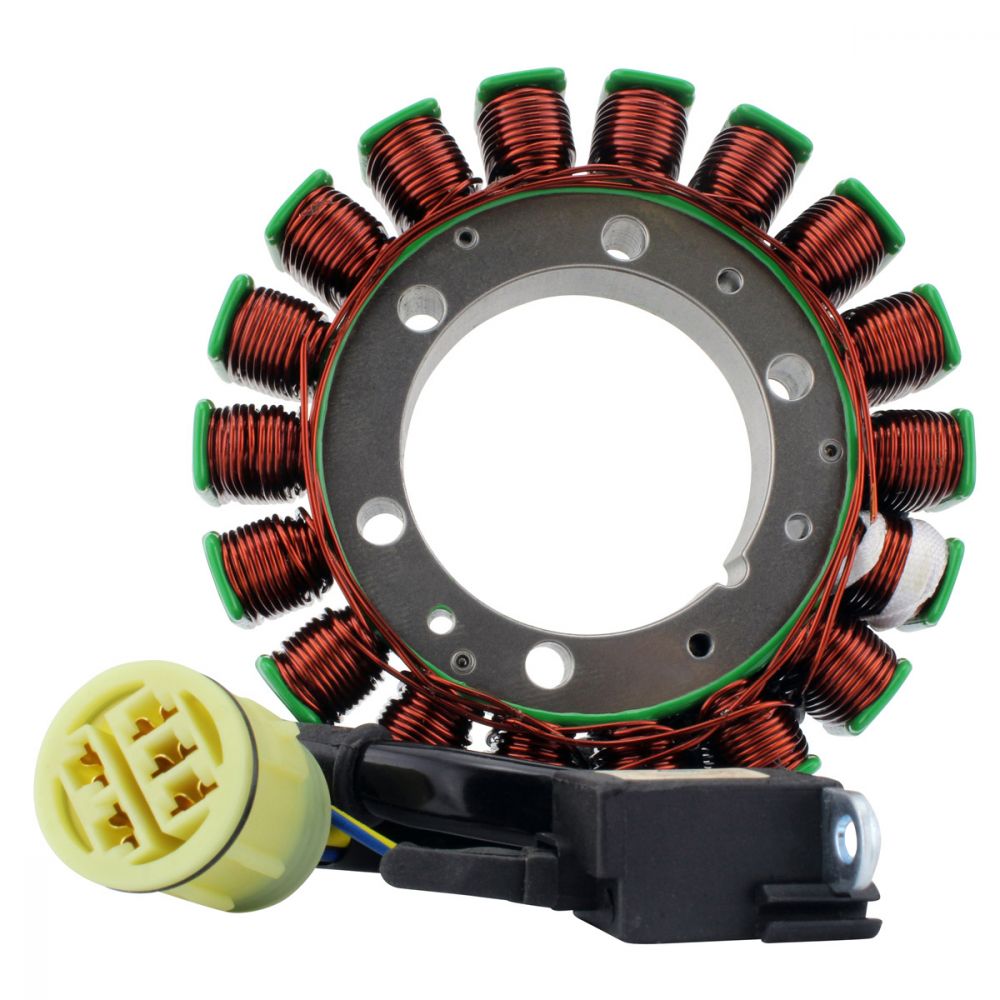

RMStator Stator Kit With Machined Aluminum Mosfet Regulator RMS900-107068

Brand new aftermarket Stator + Voltage Regulator

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
All shipped products are tested

Stator

Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included
Rubber grommet included

Mosfet Voltage Regulator

Why use Mosfet Enhanced technology?

Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.

Saves gas

Less load on the stator, less work, less fuel is used and you save.

Regulated energy

The power charging your battery is steadier and smooth.

Extended battery life

Extends the battery's life and cold cranking capacity.

More engine power

Removes stator load resulting in more engine power.

Optimized power

Optimize power delivery by switching the stator coils on or off.

&rdquoRMSTATOR

With?design

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Technical Data

Stator Dimensions : Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 24 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 1470 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +/-20%

Regulator Dimensions :

Width : 120 mm
Length : 111 mm
Height: 35 mm
Fixation holes center to center : 94 mm

Other specifications :
Number of plugs : 2
Number of pins : 5

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-107068

Fitment:

2011-2017 Can-Am Commander 1000 4X4
2012-2017 Can-Am Commander 800R 4X4
2014-2017 Can-Am Commander Max 1000 4X4
2017 Can-Am Commander Max 800R 4x4 DPS
2016-2017 Can-Am Defender HD10 4X4
2016-2017 Can-Am Defender HD8 4X4
2017 Can-Am Defender Max HD10 4x4 DPS
2013-2017 Can-Am Maverick 1000R 4X4
2014-2017 Can-Am Maverick Max 1000R 4X4
2015-2017 Can-Am Maverick Max 1000R 4x4 Turbo DPS
2016-2018 Can-Am Outlander 1000R 4x4 DPS
2010 Can-Am Outlander 500 4x4 XTP HO EFI
2013-2018 Can-Am Outlander 650 4x4 DPS
2018 Can-Am Outlander 650 4x4 EFI T3 EFI F/C
2013-2018 Can-Am Outlander 650 4x4 XMR
2010-2011 Can-Am Outlander 650 4x4 XTP EFI
2013-2015 Can-Am Outlander 800R 4x4 DPS
2011-2012 Can-Am Outlander 800R 4x4 XMR
2015 Can-Am Outlander 800R 4x4 XMR
2010-2015 Can-Am Outlander 800R 4x4 XT
2010-2011 Can-Am Outlander 800R 4x4 XTP
2013-2015 Can-Am Outlander 800R 4x4 XTP
2011 Can-Am Outlander 800R 4x4 XXC EFI
2016-2017 Can-Am Outlander 850 4X4
2013-2015 Can-Am Outlander Max 1000 4x4 DPS
2016-2017 Can-Am Outlander Max 1000R 4x4 XT DPS
2013-2015 Can-Am Outlander Max 500 4x4 DPS
2010 Can-Am Outlander Max 500 4x4 LTD HO EFI
2010-2015 Can-Am Outlander Max 500 4x4 XT
2010 Can-Am Outlander Max 500 4x4 XTP HO EFI
2013-2017 Can-Am Outlander Max 650 4x4 DPS
2010-2012 Can-Am Outlander Max 650 4x4 XTP EFI
2013 Can-Am Outlander Max 800R 4x4 DPS
2015 Can-Am Outlander Max 800R 4x4 DPS
2014 Can-Am Outlander Max 800R 4x4 EFI
2010-2012 Can-Am Outlander Max 800R 4x4 LTD EFI
2010-2015 Can-Am Outlander Max 800R 4x4 XT
2010-2015 Can-Am Outlander Max 800R 4x4 XTP
2016-2017 Can-Am Outlander Max 850 4x4 DPS
2012-2016 Can-Am Renegade 1000 4x4 XXC
2010-2015 Can-Am Renegade 800R 4x4 XXC
2017 Can-am Traxter HD10
2016-2017 Can-am Traxter HD8

Note: Image is for reference only, actual product may vary slightly.
