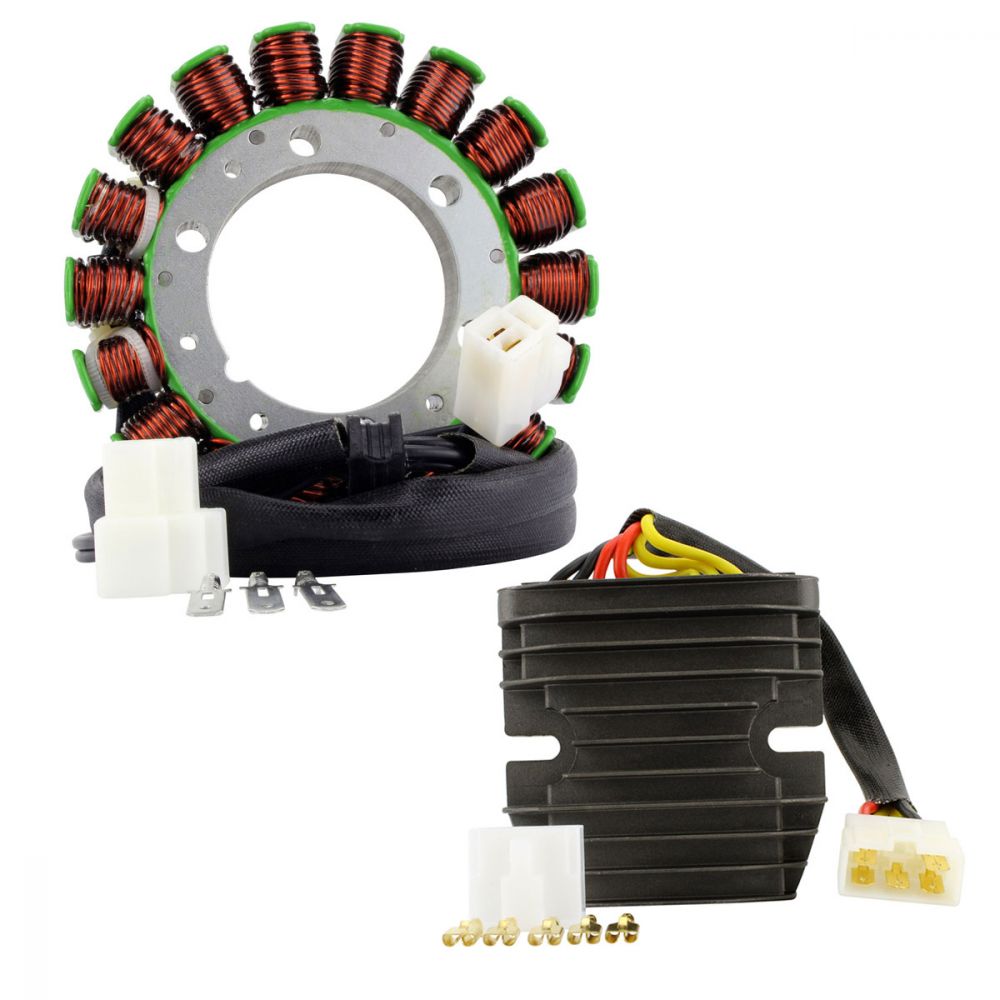

RMStator Stator Kit With Machined Aluminum Mosfet Regulator RMS900-107269
Customer Ratings
RMStator Stator Kit With Machined Aluminum Mosfet Regulator RMS900-107269
RMStator Stator Kit With Machined Aluminum Mosfet Regulator RMS900-107269
Brand new aftermarket Stator + Mosfet Regulator Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
Technical Data
Stator Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 1140 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Black to Black = 0.4 ohms +-20%
Width : 90 mm
Length : 90 mm
Height : 30 mm
Wires length : 240 mm
Fixation holes center to center : 80 mm
Other specifications :
Number of plugs : 1
Number of pins : 5
Number of wires : 5
Minimum Charging Voltage : 14.5V +- 0.5V
Maximum Charging Current : 50A/500W
Open Circuit Voltage : 15V
Operation Temperature : -20? C to 85? C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-107269
Fitment:
- 2008-2020 Triumph America 900
- 2008-2020 Triumph Bonneville 900
- 2008-2020 Triumph Bonneville T100
- 2006-2020 Triumph Scrambler 900
- 2007-2020 Triumph Speedmaster 900
- 2008-2020 Triumph Thruxton 900
Note: Image is for reference only, actual product may vary slightly.
