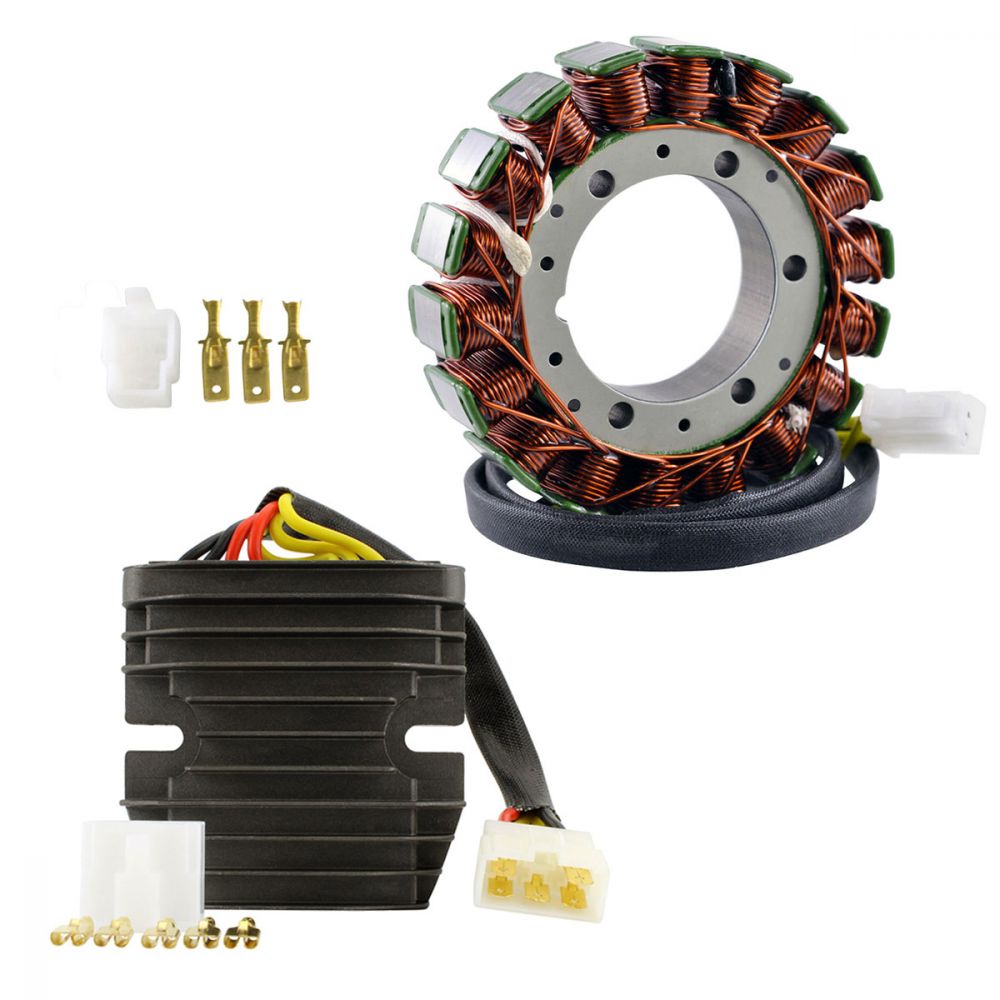

RMStator Stator Kit With RMS900-107275
Customer Ratings
RMStator Stator Kit With RMS900-107275
RMStator Stator Kit With RMS900-107275
Brand new aftermarket stator + Mosfet voltage regulator rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Technical Data
Stator Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet : 195 mm
Length of wires grommet to plug : 660 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow Between Yellow = 0.4 ohms +-20%
Width : 90 mm
Length : 90 mm
Height : 30 mm
Wires length : 240 mm
Fixation holes center to center : 80 mm
Other specifications :
Number of plugs : 1
Number of pins : 5
Number of wires : 5
Minimum Charging Voltage : 14.5V +- 0.5V
Maximum Charging Current : 50A/500W
Open Circuit Voltage : 15V
Operation Temperature : -20? C to 85? C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-107275
Fitment:
- 2002-2006 Triumph America 800
- 2007 Triumph America 900
- 2002-2005 Triumph Bonneville T100
- 2006-2008 Triumph Scrambler 900
- 2002-2007 Triumph Speedmaster 900
- 2004-2007 Triumph Thruxton 900
Note: Image is for reference only, actual product may vary slightly.
