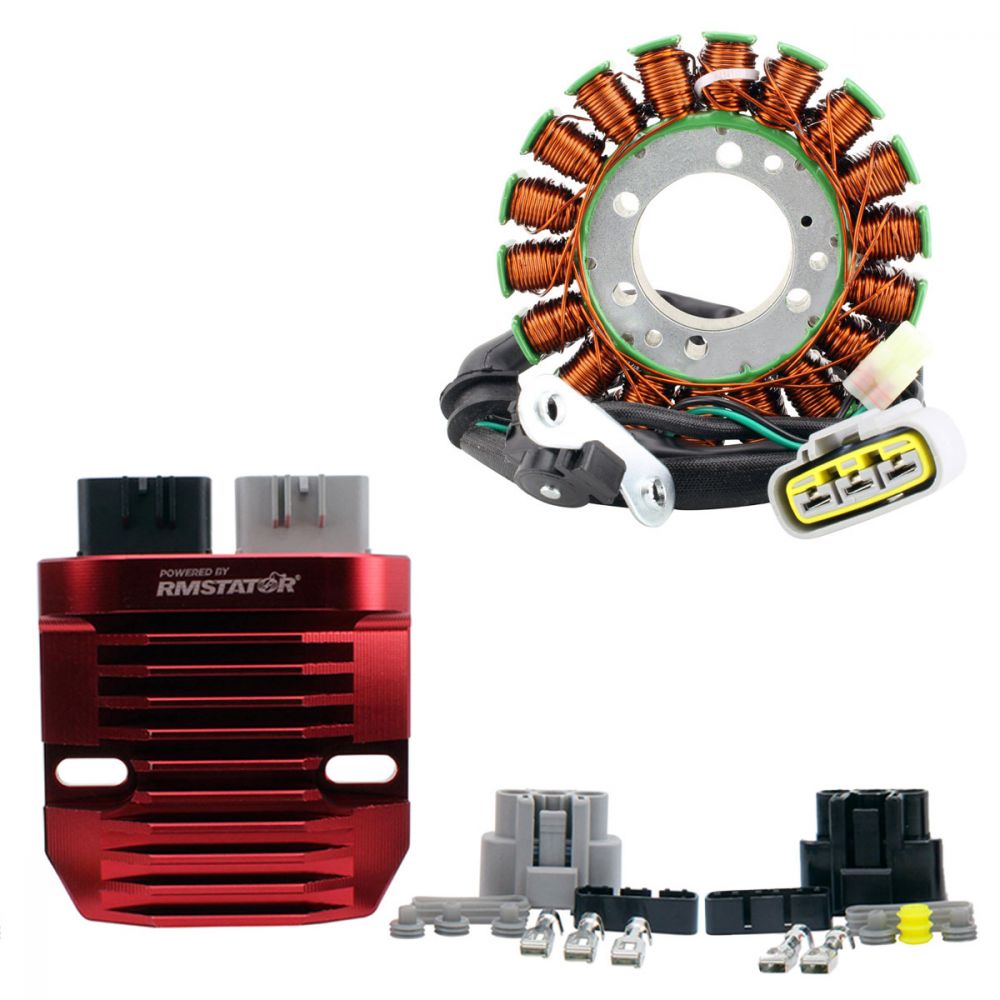

RMStator Stator Kit With Red Machined Aluminum Mosfet Regulator RMS900-107277
RMStator Stator Kit With Red Machined Aluminum Mosfet Regulator RMS900-107277
Brand new aftermarket Stator + Red Machined Aluminum Mosfet Regulator Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
stator- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
Our new red machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Technical Data
Stator Dimensions :Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 250 mm
Length of wires grommet to plug # 1 : 195 mm
Length of wires grommet to plug # 2 : 500 mm
Length of pickup coil's wire to grommet : 280 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each Black = 0.6 ohms +-20%
Pickup : Green to Grey = 244 ohms +-20%
Length : 103 mm
Height : 28 mm
Fixation holes center to center : 80 mm
Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage : 14.5 V +- 0.5 V
Maximum Charging Current : 50 A / 500 W
Open Circuit Voltage : 15 V
Operation Temperature : -20?C to 85?C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-107277
Fitment:
- 2008-2017 Triumph Street Triple 675
- 2008-2017 Triumph Street Triple R 675
Note: Image is for reference only, actual product may vary slightly.
