RMStator Stator Voltage Regulator Kit For 2009-2013 Honda CBF 125 RMS900-107365
RMStator Stator Voltage Regulator Kit For 2009-2013 Honda CBF 125 RMS900-107365

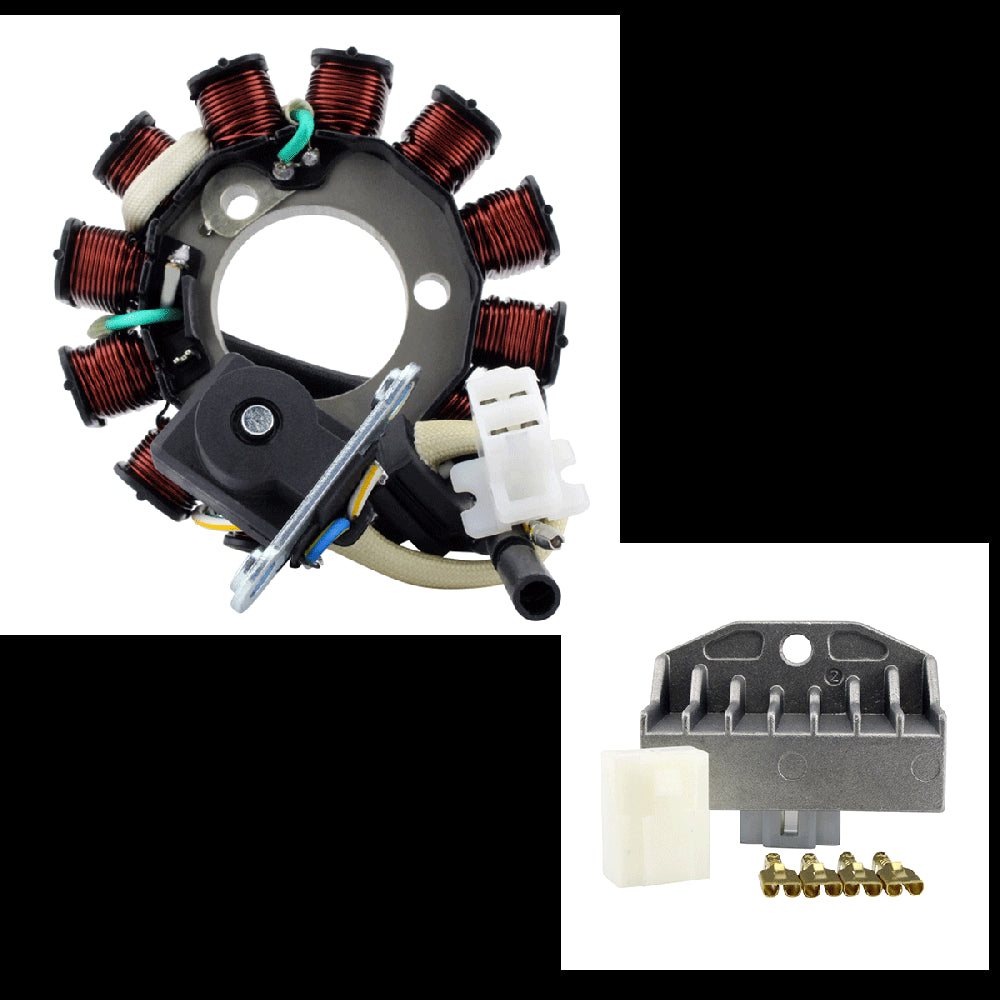

Brand New Kit Stator + Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Connector included
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Rubber grommet included
- The Quality exceeds the OEM equipment
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Technical Data
Stator
Dimensions :
Interior diameter : 35 mm
Exterior diameter : 92 mm
Thickness : 14 mm
Length of wires stator to grommet : 130 mm
Length of wires grommet to plug : 120 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 4
Number of plugs : 3
Number of pins : 4
Wire to wire resistance :
Alternator : white to green = 0.9 ohms +/-20%
Pickup : White/Yellow to Blue/Yellow = 115 ohms +/-20%
Dimensions:
Width: 38 mm
Length: 65 mm
Height: 40 mm
Other specifications:
Number of plugs: 1
Number of pins: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85° C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-107365
Fitment:
- 2009-2013 Honda CBF 125
Note: Image is for reference only, actual product may vary slightly.
