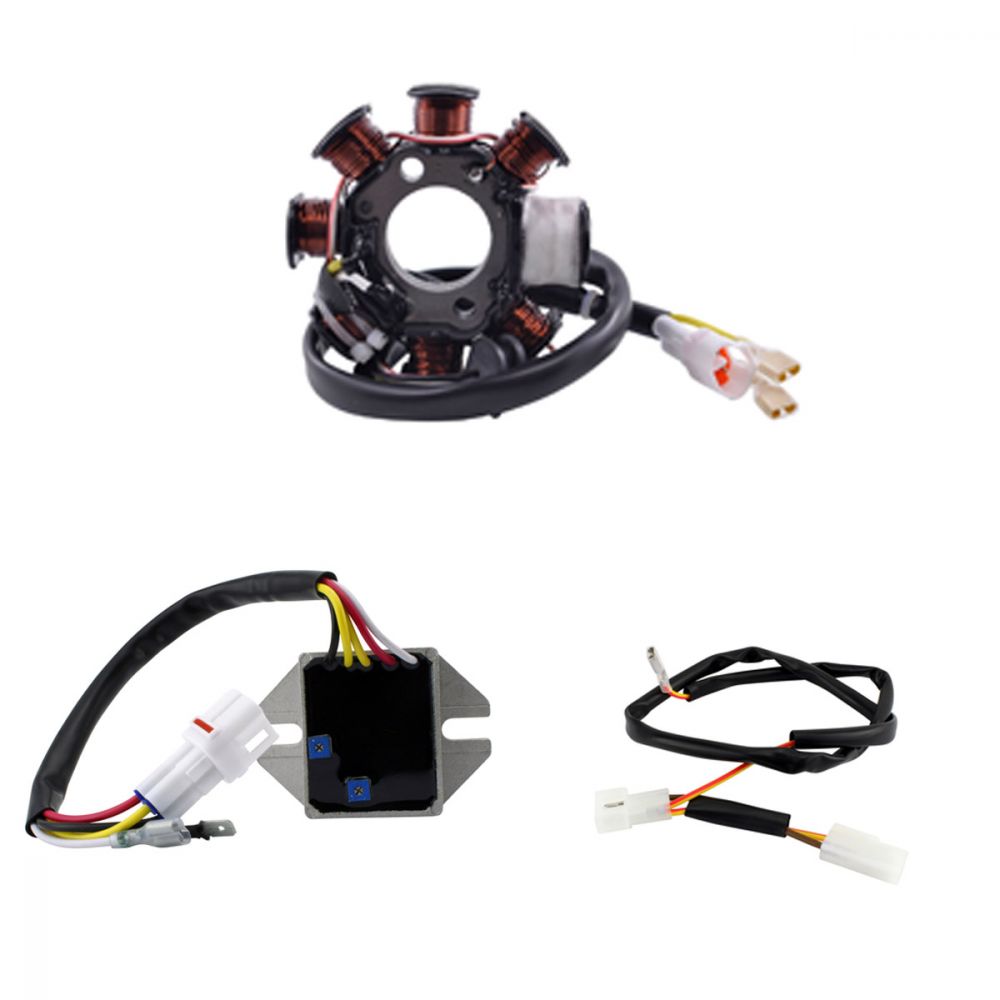

RMStator Stator with 100W AC To DC Conversion Voltage Regulator Kit

100W DC Converted Kit Stator + Voltage Regulator + Harness

• 100 Watt DC charging system
• Replace the OEM stator with 100W high output stator
• Convert your AC system into a high power DC one
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new aftermarket Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included

Brand new aftermarket Voltage Regulator Rectifier

• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment

Technical Data

Stator Specifications:
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 83 mm
Thickness: 13 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 490 mm

Other specifications:

Number of wires: 4
Number of plugs: 3
Number of pins: 4
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.5 ohms +-20%
Source: Black/Red to Red/White = 30 ohms +-20%

Regulator Rectifier Specifications:
Dimensions:
Width: 54 mm
Length: 80 mm
Height: 22 mm
Wires length: 235 mm
Distance between fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20&degC to 85&degC

Harness Specifications:
Dimensions:
Wires length: 530 mm and 60 mm
Number of wires: 3
Number of plugs: 3
Number of pins: 5

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-107506

Fitment:

• 2005-2008 Husaberg FS 550 E
• 2005 Husaberg FS 550 S
• 2005-2008 Husaberg FS650C
• 2005-2008 Husaberg FS650E
• 2004 Husqvarna FE450
• 2004-2008 Husqvarna FS450
• 2003-2006 KTM 250 EXC
• 2003-2005 KTM 250 EXC G
• 2007 KTM 250 EXC F
• 2002 KTM 250 SX
• 2007-2008 KTM 250 XC-F
• 2009-2011 KTM 250 XCF-W
• 2005-2011 KTM 400 EXC
• 1999-2004 KTM 400 SD Enduro
• 2007-2010 KTM 400 XCW
• 2005-2011 KTM 450 EXC
• 2005-2006 KTM 450 EXC-G Racing
• 2008 KTM 450 EXC-R
• 2005 KTM 450 MXC G
• 2003-2004 KTM 450 SX Racing
• 2008 KTM 450 XCR-W
• 2007-2011 KTM 450 XCW
• 1999-2002 KTM 520 EXC Racing
• 2001-2002 KTM 520 SX
• 2005-2007 KTM 525 EXC
• 2007 KTM 525 EXC-G Racing
• 2005 KTM 525 MXC
• 2003-2004 KTM 525 MXC Racing
• 2007 KTM 525 XC
• 2008-2011 KTM 530 EXC
• 2008-2011 KTM 530 EXC-R
• 2008 KTM 530 XCR-W
• 2008-2011 KTM 530 XCW

Note: Image is for reference only, actual product may vary slightly.
