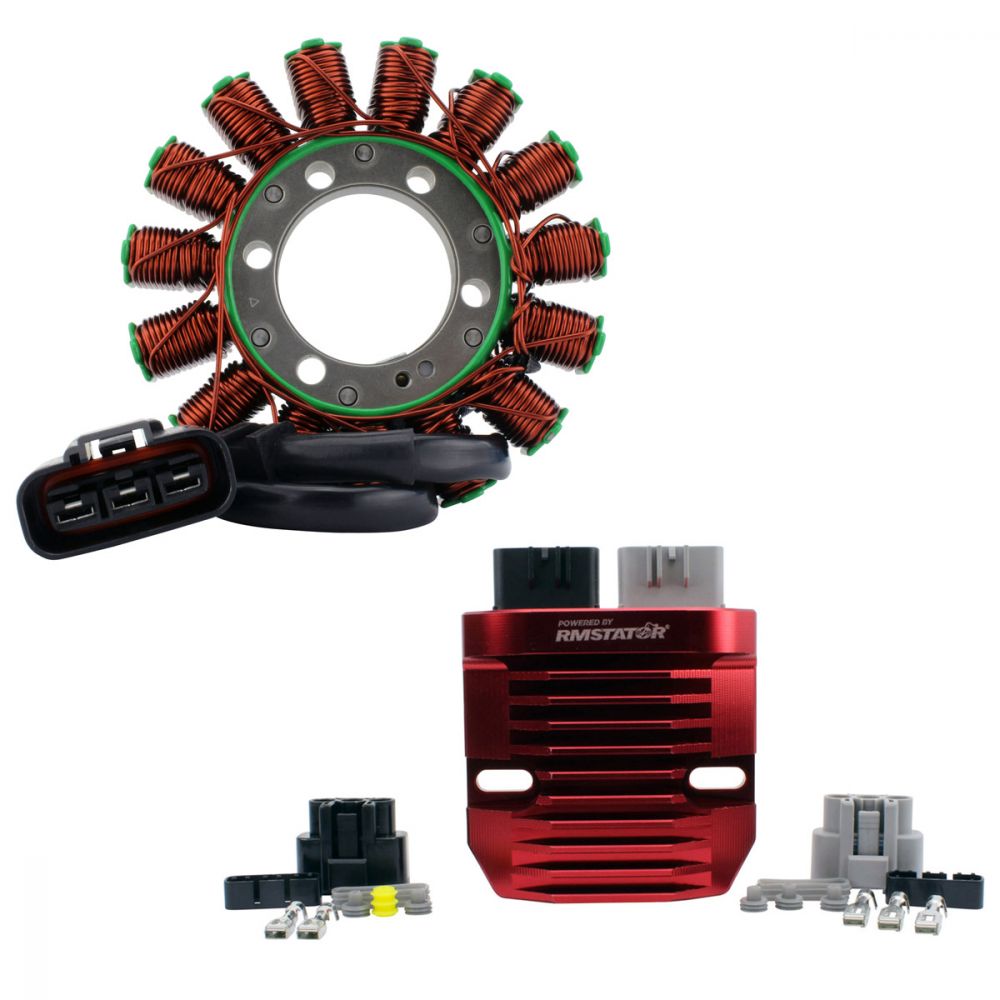

RMStator Stator + Red Machined Lithium Battery Compatible Regulator Kit For 2013-2022 Honda CBR600RR
RMStator Stator + Red Machined Lithium Battery Compatible Regulator Kit For 2013-2022 Honda CBR600RR
Kit Generator Stator + Red Machined Lithium-Ion Battery Compatible Regulator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Connectors included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new aftermarket Generator Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator
Our new RMSTATORmachined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATORred regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Technical Data
Stator
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 12 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 365 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles : 15
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
Red Machined Lithium-Ion Battery Compatible Regulator
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-107599
Fitment:
- 2013-2022 Honda CBR600RR
Note: Image is for reference only, actual product may vary slightly.
