RMStator Generator Stator Kit With Machined Aluminum Mosfet Regulator
Customer Ratings
RMStator Generator Stator Kit With Machined Aluminum Mosfet Regulator
RMStator Generator Stator Kit With Machined Aluminum Mosfet Regulator

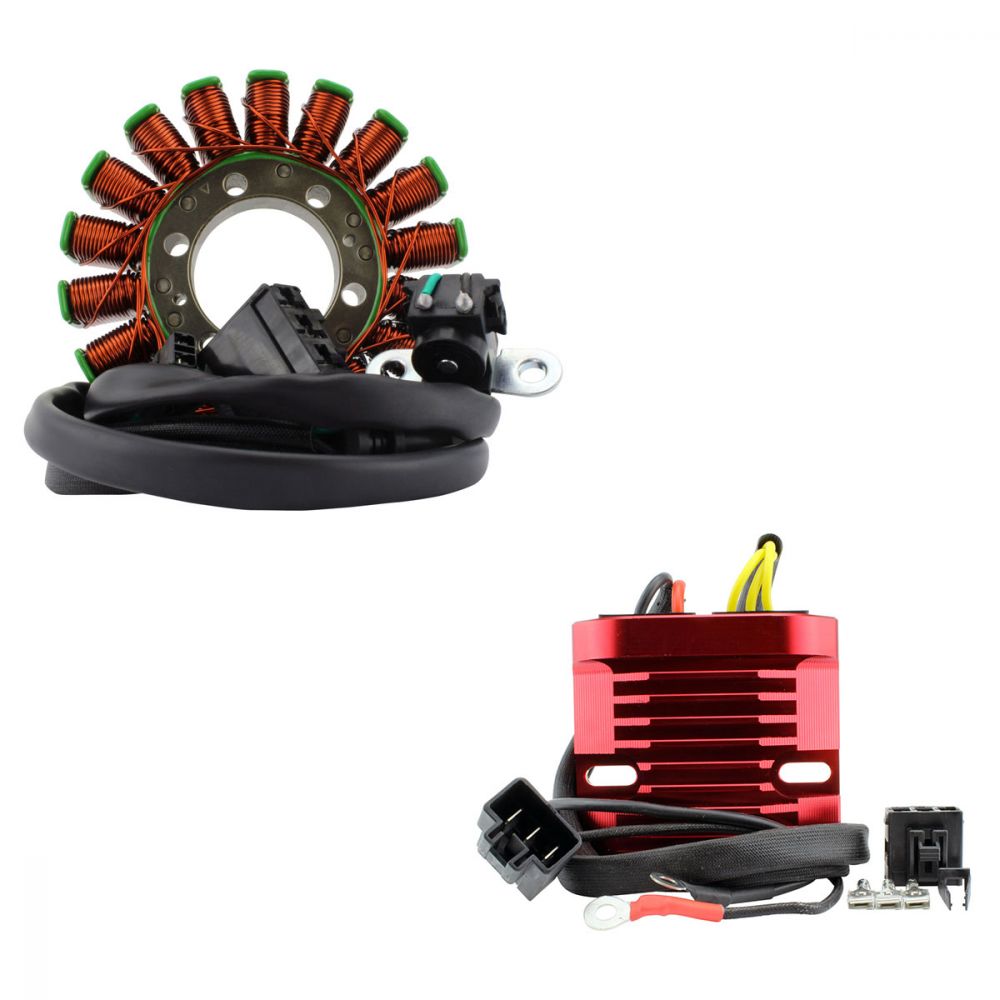

Brand new aftermarket Generator Stator + RMSTATOR Red CNC Machined Aluminum Mosfet Regulator kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Generator Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
Our new RMSTATORmachined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATORred regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.Technical Data
Generator Stator
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 18 mm
Length of wires stator to grommet: 240 mm
Length of wires grommet to plug: 190 mm & 880 mm
Length of pickup coil's wire to grommet: 270 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.L
Pickup: Green to black = 240 ohms +-20%
Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 1010 mm & 350 mm
Fixation holes center to center: 75 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-107634
Fitment:
- 2006-2020 Triumph Daytona 675
- 2006-2020 Triumph Daytona 675R
Note: Image is for reference only, actual product may vary slightly.
