Many years of Polaris ATV's used the SurePower ECM module that controlled many things on the vehicle, including circuit breakers, cooling fan operation, and most importantly voltage regulation for the battery charging system. Most of these functions are reliable, except for the most important, the voltage regulator rectifier! The voltage regulator often fails, and leaves you faced with replacing the entire module just for this one function, which is likely to fail again.

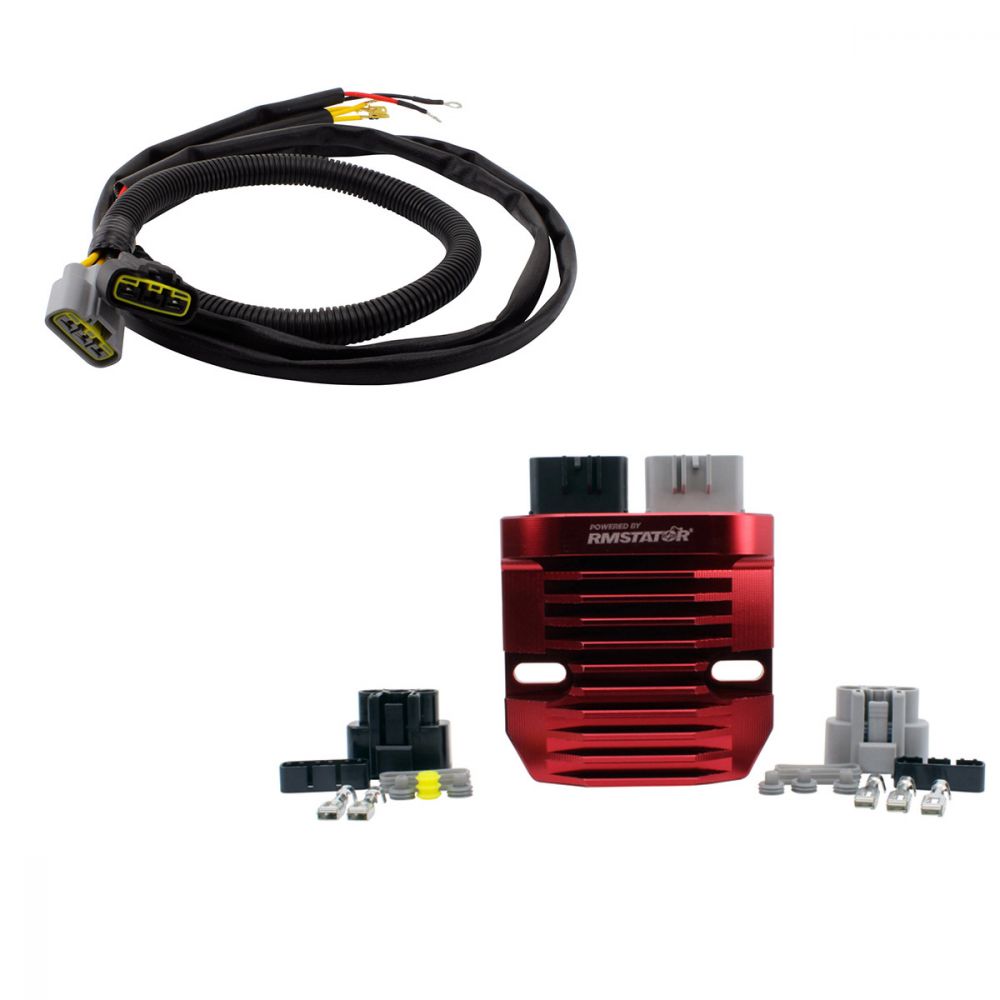

RMSTATOR now provides a SurePower module Regulator Bypass kit to eliminate this problem on these popular ATVs. Our kit includes our heavy duty CNC aluminum MOSFET voltage regulator rectifier, a plug & play wiring harness, and mounting hardware. Simply mount the new voltage regulator on your frame, plug in and route the harness directly to the stator connector and battery terminals, and you're ready to ride. You'll never have to worry about a failing voltage regulator or SurePower replacement again.
Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator
Our new RMSTATORmachined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATORred regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Fix and forget the problem with RMS Lab's advanced technologies!
Automotive grade wiring harness with OEM-quality heavy-duty connectors
Made with the same Delphi connectors as OEM Polaris parts, our wiring harnesses are manufactured in a factory with controlled quality processes. They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.
Plug & Ride design
Our voltage regulator housings are manufactured to OEM specifications for a fast and easy installation.
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Technical Data
Red Machined Aluminum Mosfet Regulator :
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C
Wires length : 1000 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 3
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-107786
Fitment:
- 2004 Polaris ATP 330 4X4
- 2003-2005 Polaris Magnum 330 2x4
- 2003-2006 Polaris Magnum 330 4X4
- 2004-2006 Polaris Scrambler 500 4X4
- 2005 Polaris Sportsman 400 F/C Carb
- 2004 Polaris Sportsman 400 4X4 F/C Carb
- 2006 Polaris Sportsman 450 4X4
- 2004-2005 Polaris Sportsman 500 4X4
- 2006 Polaris Sportsman 500 4x4 HO
- 2004-2006 Polaris Sportsman 500 6x6
- 2005 Polaris Sportsman 600 Twin
- 2005-2006 Polaris Sportsman 700 Twin Carb
- 2005 Polaris Sportsman MV7
- 2003-2006 Polaris Trail Boss 330
Note: Image is for reference only, actual product may vary slightly.
