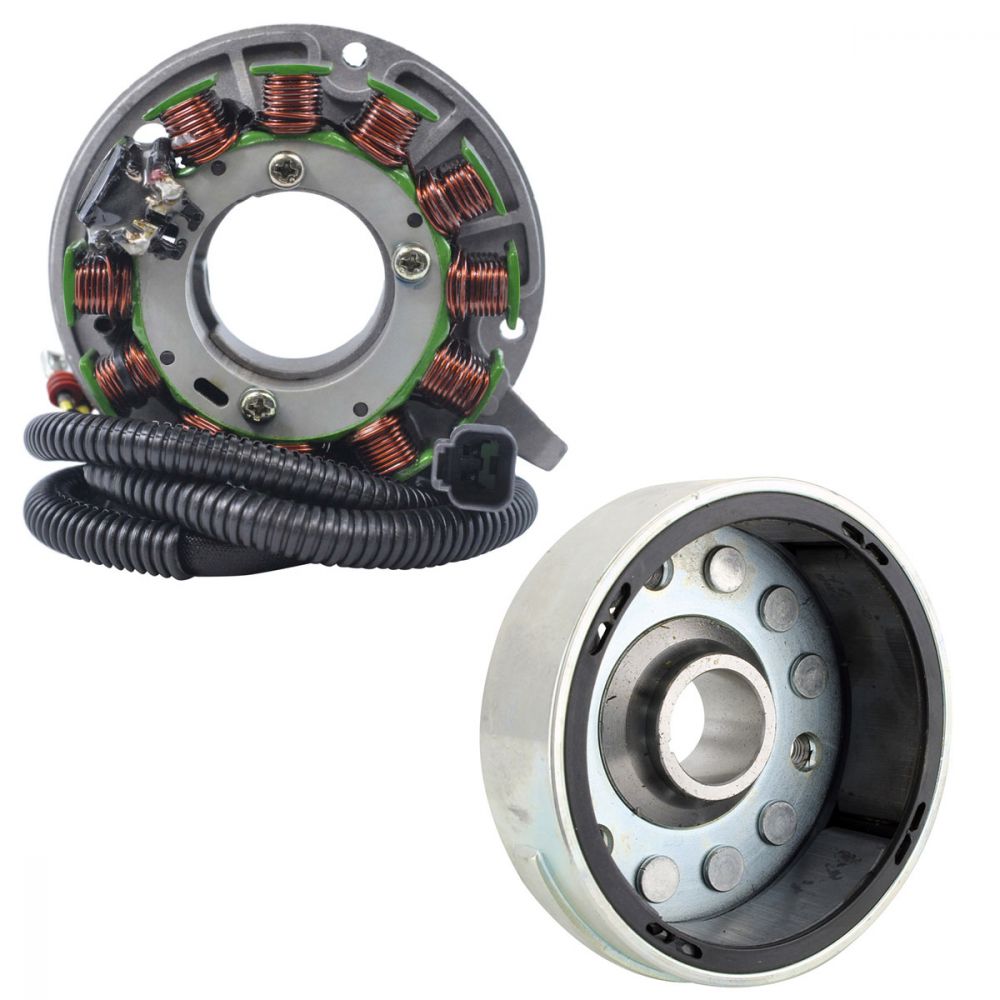

RMStator Flywheel Kit RMS900-107888

Brand new aftermarket Stator+ Flywheel

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included
Back Plate included
All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Stator

Dimensions :
Interior diameter : 44 mm
Exterior diameter : 96 mm
Thickness : 18 mm
Length of wires stator to connector: 420 mm & 550 mm

Other specifications :

Number of wires : 4
Number of plugs : 2
Number of pins : 4

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Source : Black to Red = 0.8 ohms +/-20%

Flywheel:

Dimensions:
Inner Diameter: 96 mm
Outer Diameter: 116 mm
Total Height: 50 mm
Inside Height: 36 mm
Center Housing Depth: 23.50 mm
Center Housing Widest: 27.50 mm
Center Housing Thickness: 24.50 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-107888

Fitment:

2014 Lynx 59 YETI 550
2014 Lynx Rave 550
2011-2019 Ski-Doo Expedition 550F Sport Carb F/C
2010-2015 Ski-Doo Grand Touring 550F Sport Carb
2014 Ski-Doo MXZ 550F Sport Carb
2010-2011 Ski-Doo MXZ 550F TNT Carb
2011-2012 Ski-Doo MXZ 550F Sport Carb
2014 Ski-Doo Renegade 550F Sport Carb
2010-2012 Ski-Doo Renegade 550F Sport Carb
2008 Ski-Doo Skandic 550F SWT Carb
2008 Ski-Doo Skandic 550F WT Carb
2010 Ski-Doo Skandic 550F Tundra LT Carb
2012 Ski-Doo Skandic 550F WT Carb
2017 Ski-Doo Skandic 550F SWT Carb
2019 Ski-Doo Skandic 550F SWT Carb
2014-2015 Ski-Doo Skandic 550F SWT Carb
2014-2015 Ski-Doo Skandic 550F WT Carb
2017-2019 Ski-Doo Skandic 550F WT Carb
2017-2018 Ski-Doo Tundra 550 WT Carb F/C
2019 Ski-Doo Tundra 550F Sport
2011-2012 Ski-Doo Tundra 550F Sport
2014-2015 Ski-Doo Tundra 550F LT
2014-2016 Ski-Doo Tundra 550F Sport
2017-2018 Ski-Doo Tundra 550F LT

Note: Image is for reference only, actual product may vary slightly.
