RMStator Stator With Voltage Regulator and Flywheel and Harness Kit

Brand New High Output Stator + Magneto Flywheel Rotor + Regulator + Harness

• Direct replacement to your original unit
• Pick up pulsar coil included
• Connector included
• Opposite connector included
• Rubber grommet included
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

High output stator generating 140W available for added accessories

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 100.4 mm
Interior Diameter: 86.5 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 28 mm & 33 mm

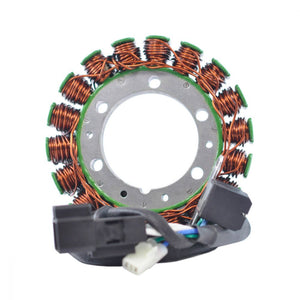

Specifications of Stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pickup coil's wire to grommet: 95 mm

Other specifications:

Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to wire resistance:
Alternator: White to Yellow = 0.3ohms +/-20%
Pickup: White to Red = 264ohms =+/-20%

Specifications of Regulator:

Dimensions:
Width: 66 mm
Length: 78 mm
Height: 27 mm
Wires length: 465 mm
Distance between fixation holes center to center: 62 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20&degC to 85&degC

Specifications of Harness:

Dimensions:
Length: 250 mm
Number of plugs: 2
Number of pins: 8

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-108122

Fitment:

• 2004-2009 Yamaha YFZ450
• 2012-2013 Yamaha YFZ450
• 2024 Yamaha YFZ450RSE
• 2004-2008 Yamaha YFZ450SE Special Edition
• 2007-2008 Yamaha YFZ450SE2 Special Edition II
• 2006-2007 Yamaha YFZ450V Bill Balance Edition

Note: Image is for reference only, actual product may vary slightly.
