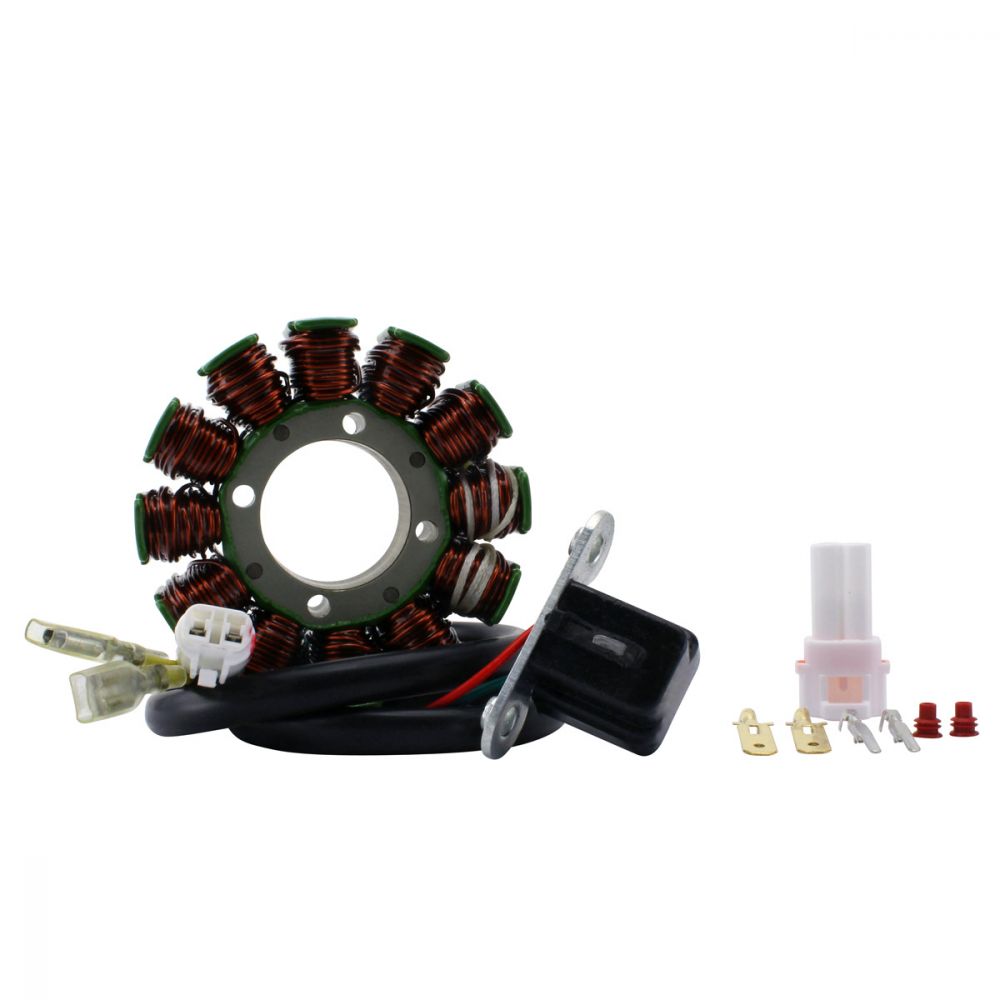

RMStator Stator Kit With Flywheel For 2009-2023 Yamaha YFZ450R RMS900-108128

Brand New High Output Stator 300W + Flywheel + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

This stator output 300W (vs OEM 208W) to give you extra power to install accessories and lighting.

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Specifications of Stator:

Dimensions:
Interior diameter: 37 mm
Exterior diameter: 97 mm
Thickness: 14 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 180 mm
Length of pickup coil's wire to grommet: 180 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.2 ohms +-20%
Pickup: White to Black = 260 ohms +-20%

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 110 mm
Interior Diameter: 99 mm
Interior Diameter Center Housing: 30 mm
Exterior Diameter Center Housing: 33 mm
Thickness (exterior): 31 mm
Thickness (interior): 38 mm

Specifications of Regulator:

Dimensions:
Width : 89 mm
Length : 91 mm
Height: 27 mm
Fixation holes center to center: 65 mm
Other specifications :
Number of plugs : 1
Number of pins : 6

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-108128

Fitment:

• 2009-2023 Yamaha YFZ450R

Note: Image is for reference only, actual product may vary slightly.
