RMStator Stator Regulator Rectifier Kit RMS900-108224
Customer Ratings

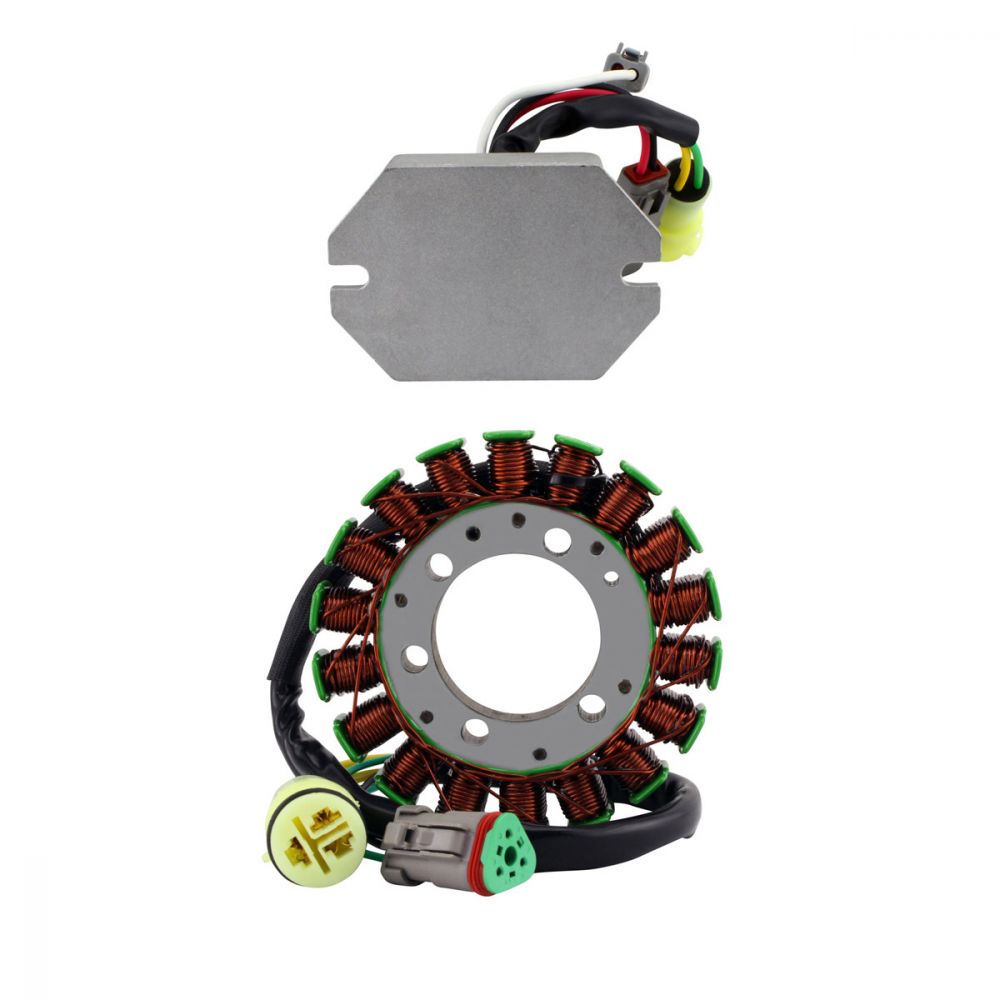

RMStator Stator Regulator Rectifier Kit RMS900-108224
RMStator Stator Regulator Rectifier Kit RMS900-108224
Brand new aftermarket stator + regulator rectifier
- Direct replacements to your original units
- Plug-and-play, direct fit, easy installation.
- Connectors included
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator :- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
Technical Data
Stator :
Dimensions :
Interior diameter: 42 mm
Exterior diameter: 103 mm
Thickness: 13 mm
Length of wires stator to plug: 425 mm
Other specifications :
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire to wire resistance :
Alternator: Yellow Between each Yellow = 0.5 ohms+/-20%
Alternator: Yellow to Ground = O.L. ON DISPLAY
Alternator: Green to each Yellow = 0.5 ohms+/-20%
Alternator: Black to Ground = 0.1 ohms+/-20%
Dimensions :
Width: 66 mm
Length: 66 mm
Height: 27 mm
Fixation holes center to center: 84 mm
Wires Length: 130 mm & 110 mm
Other specifications :
Number of plugs: 3
Number of pins: 6
Number of wires: 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-108224
Fitment:
- 2002 Ski-Doo Grand Touring 500 Sport Carb L/C
- 2002 Ski-Doo Grand Touring 600 Sport Carb L/C
- 2002 Ski-Doo Grand Touring 700 Carb L/C
- 2002 Ski-Doo Grand Touring 800 SE Carb L/C
- 2002 Ski-Doo Legend 500 Sport Carb L/C
- 2002 Ski-Doo Legend 600 SE Carb L/C
- 2002 Ski-Doo Legend 600 Sport Carb L/C
- 2002 Ski-Doo Legend 700 SE Carb L/C
- 2002 Ski-Doo Legend 700 Sport Carb L/C
- 2002 Ski-Doo Legend 800 SE RER Carb
Note: Image is for reference only, actual product may vary slightly.
