Viper Midnight ATV Winch Kit For Arctic Cat
Customer Ratings
Viper Midnight ATV Winch Kit For Arctic Cat
Viper Midnight ATV Winch Kit For Arctic Cat
NOTES:
Kit includes all winch components and a vehicle specific mount
Winch Description

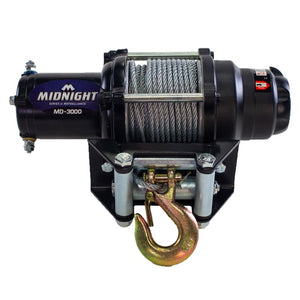

The VIPER Midnight 3,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.1 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch and steel cable are standard on this Midnight winch.
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.
Specs
- Cable - Steel
- Motor - 12V DC, Sealed 1.1HP permanent magnet
- Rated Line Pull - 3,000lbs (1360.78 kgs)
- Line Speed - 0 lbs - 18 Amps motor draw / 25 FPM (7.62 MPM)
- Line Speed - 3,000lbs - 202 Amps motor draw / 7 FPM (2.13 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)
Kit Contents
- 50ft Steel Cable
- Roller Fairlead
- Contact/Solenoid
- Handlebar Rocker Switch
- Clevis Hook
- Wiring
- Installation Hardware and Instructions
VIPER ATV winch mounts for Arctic Cats are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.
Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")
Fitment:
2006 400 Auto VP 4x4
2006-2008 400i Auto 4x4
2005 400i Auto TBX 4x4
2006-2007 400i Auto TRV 4x4
2006 400i Manual 4x4
2005 500 Auto 4x4
2005-2008 500i Auto & Manual 4x4
2005-2006 500i Auto TBX 4x4
2006 500i Auto TRV 4x4
2005-2007 650i H1 Auto 4x4
2008 650i H1 TRV Auto 4x4
2005-2006 650i V2 Auto 4x4, Tony Stewart
2007-2008 700i EFI Auto 4x4
2006 700i EFI SE 4x4
Brand: Viper
Part Numbers:
1x MA11961
1x MD3000_ST
Note: Image is for reference only, actual product may vary slightly.
