Viper Midnight ATV Winch For Honda Foreman 500, 520
Customer Ratings
Viper Midnight ATV Winch For Honda Foreman 500, 520
Viper Midnight ATV Winch Kit For Honda Foreman 500, 520
NOTES:
Kit includes all winch components and a vehicle specific mount

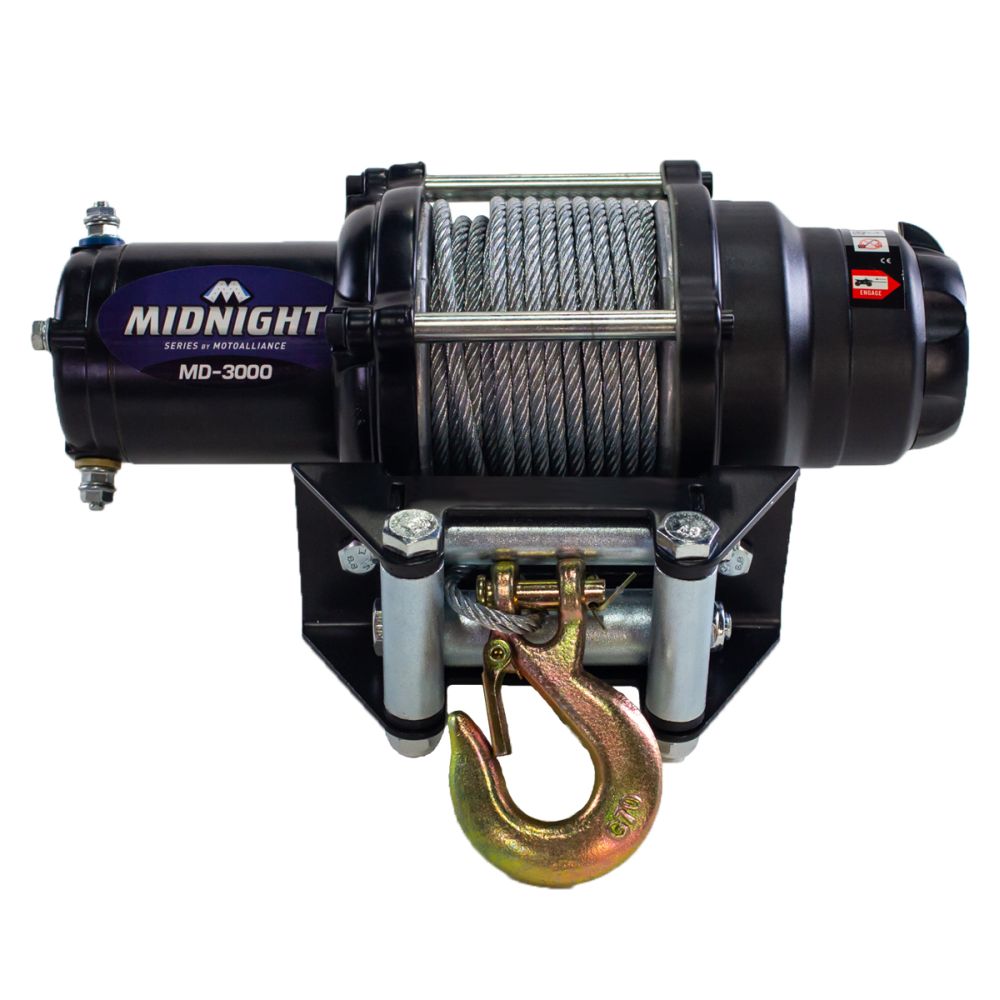

Winch Description
The VIPER Midnight 3,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.1 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch and steel cable are standard on this Midnight winch.
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.
Specs
- Cable - Steel
- Motor - 12V DC, Sealed 1.1HP permanent magnet
- Rated Line Pull - 3,000lbs (1360.78 kgs)
- Line Speed - 0 lbs - 18 Amps motor draw / 25 FPM (7.62 MPM)
- Line Speed - 3,000lbs - 202 Amps motor draw / 7 FPM (2.13 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)
Kit Contents
- 50ft Steel Cable
- Roller Fairlead
- Contact/Solenoid
- Handlebar Rocker Switch
- Clevis Hook
- Wiring
- Installation Hardware and Instructions
VIPER ATV winch mount plates by MotoAlliance are laser cut and shaped to exacting specifications to fit your Honda Foreman. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.
Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")
Fitment:
2014-2019 Honda TRX500 Foreman 4x4 all models
2020-2021 Foreman 520 all models
Please Note: will ONLY work with center mounted cables.
Brand: Viper
Part Numbers:
1x MA11921
1x MD3000_ST
Note: Image is for reference only, actual product may vary slightly.
