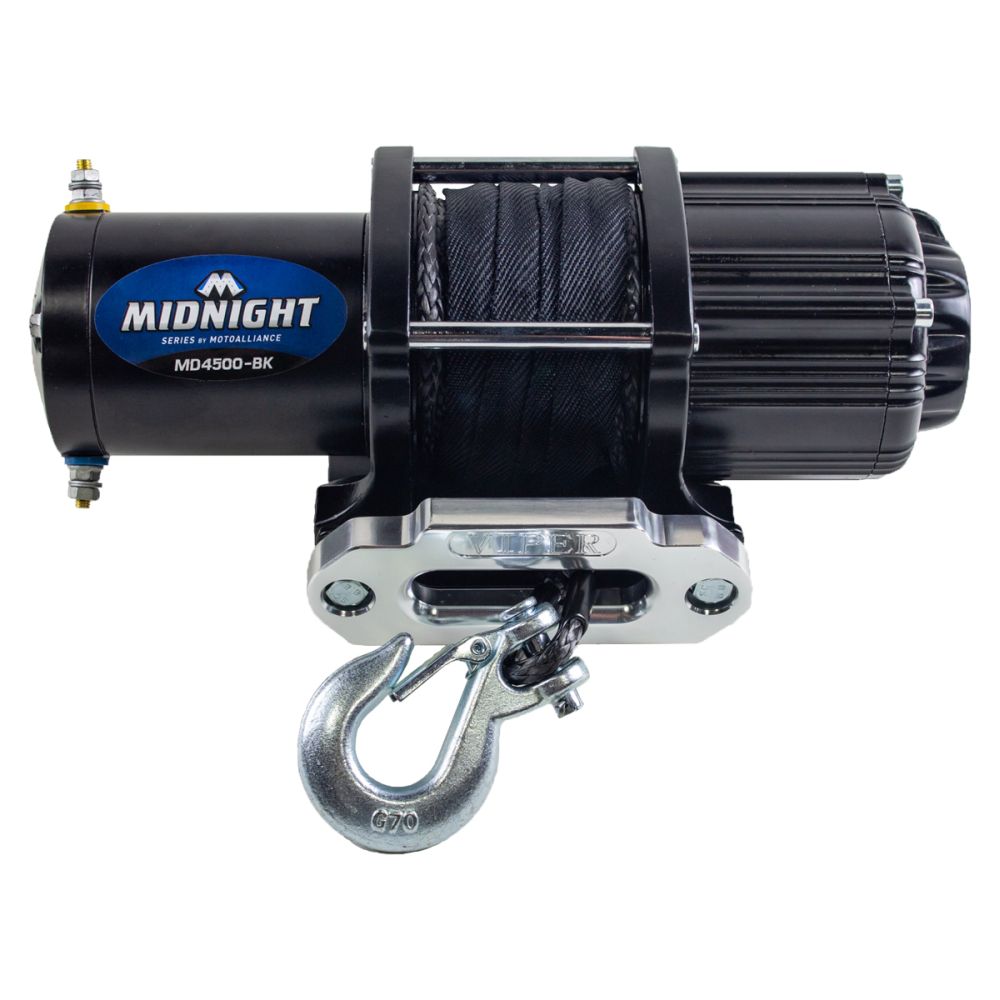

Viper Midnight ATV Winch Kit 4500 lb With 50 Feet Black Synthetic Rope With Mount
Customer Ratings
Viper Midnight ATV Winch Kit 4500 lb With 50 Feet Black Synthetic Rope With Mount
Viper Midnight ATV Winch Kit 4500 lb With 50 Feet Black Synthetic Rope With Mount
NOTES:
Kit includes all winch components and a vehicle specific mount
Winch Description
The VIPER Midnight 4,500lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.8 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Wireless remote switch, waterproof handle bar switch and synthetic rope are standard on this Midnight winch.
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.
Specs
- Cable - Dyneema
- Motor - 12V DC, Sealed 1.8HP permanent magnet
- Rated Line Pull - 4,500lbs (2041.47 kgs)
- Line Speed - 0 lbs - 31 Amps motor draw / 26 FPM (7.92 MPM)
- Line Speed - 4,500lbs - 308 Amps motor draw / 5 FPM (1.52 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/153:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)
Kit Contents
- 50ft BLACK Synthetic Rope
- Aluminum Hawse Fairlead
- Contact/Solenoid
- Wireless Remote Switch
- Handlebar Rocker Switch
- Clevis Hook
- Wiring
- Installation Hardware and Instructions
VIPER ATV winch mount plates by MotoAlliance are laser cut and shaped to exacting specifications to fit your Honda Foreman. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.
Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")
Fits:
2002 & older Foreman TRX 400 4x4
2003 & older Foreman TRX 450ES 4x4
1998-2004 Foreman TRX 450S 4x4
Brand: Viper
Part Numbers:
1x MA11905
1x MD4500_BK
Note: Image is for reference only, actual product may vary slightly.
