Viper Midnight UTV Winch Kit For Honda Talon 1000 2019-2020
Customer Ratings
Viper Midnight UTV Winch Kit For Honda Talon 1000 2019-2020
Viper Midnight UTV Winch Kit For Honda Talon 1000 2019-2020
NOTES:
Kit includes all winch components and a vehicle specific mount

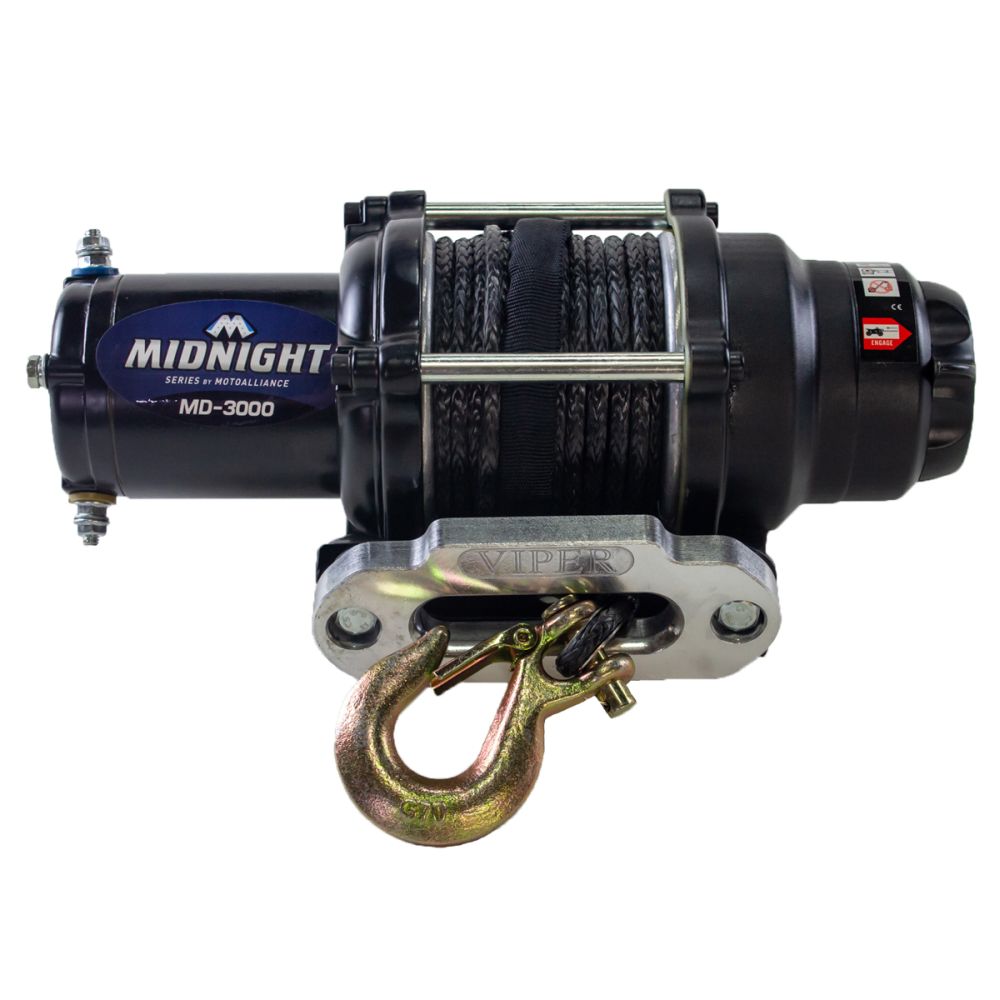

Winch Description
The VIPER Midnight 3,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.1 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch and synthetic rope are standard on this Midnight winch.
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.
Specs
- Cable - Dyneema
- Motor - 12V DC, Sealed 1.1HP permanent magnet
- Rated Line Pull - 3,000lbs (1360.78 kgs)
- Line Speed - 0 lbs - 18 Amps motor draw / 25 FPM (7.62 MPM)
- Line Speed - 3,000lbs - 202 Amps motor draw / 7 FPM (2.13 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)
Kit Contents-
- 50ft BLACK Synthetic Rope
- Aluminum Hawse Fairlead
- Contact/Solenoid
- Clevis Hook
- Wiring
- Installation Hardware and Instructions
Mount Description
VIPER UTV winch mount plates by MotoAlliance are laser cut and shaped to exacting specifications to fit your Honda Talon. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your UTV. Winch mount plates are also designed to utilize the strength of your UTV's frame to optimize winching efficiency.
Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8") and wide (3" x 6.67") spool, 4-bolt mounting pattern
Fitment:
2019-2020 Honda Talon 1000R
2019-2020 Honda Talon 1000X
Brand: Viper
Part Numbers:
1x MA11820
1x MD3000_BK
Note: Image is for reference only, actual product may vary slightly.
