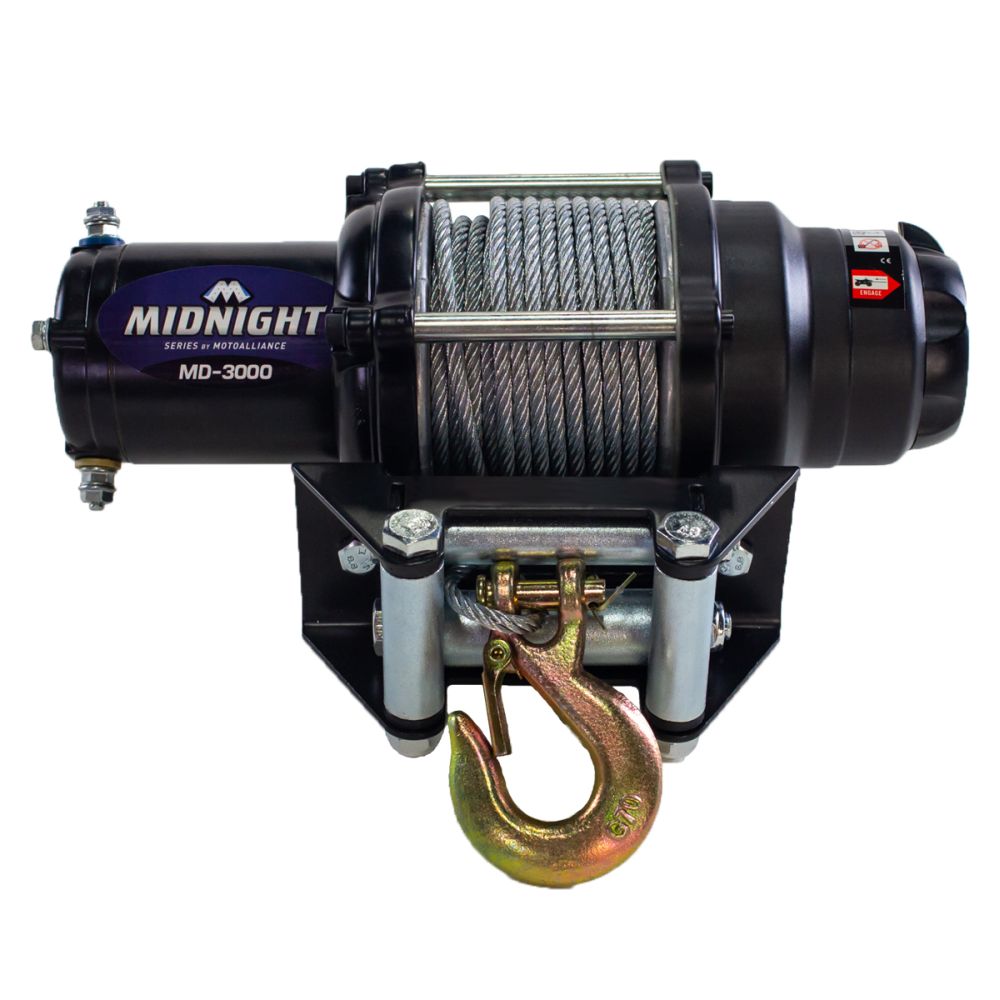

Viper Midnight UTV Winch Kit 3000 lb With 50 Feet Steel Cable With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

Winch Description

The VIPER Midnight 3,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.1 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch and steel cable are standard on this Midnight winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Specs
- Cable - Steel
- Motor - 12V DC, Sealed 1.1HP permanent magnet
- Rated Line Pull - 3,000lbs (1360.78 kgs)
- Line Speed - 0 lbs - 18 Amps motor draw / 25 FPM (7.62 MPM)
- Line Speed - 3,000lbs - 202 Amps motor draw / 7 FPM (2.13 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)


Kit Contents
- 50ft Steel Cable
- Roller Fairlead
- Contact/Solenoid
- Handlebar Rocker Switch
- Clevis Hook
- Wiring
- Installation Hardware and Instructions

Mount Description

VIPER UTV winch mounts for Polaris Ranger are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your UTV. Winch mount plates are also designed to utilize the strength of your UTV's frame to optimize winching efficiency.


Features:
Black industrial powder coat finish
Includes metal grill upgrade, mounting hardware and detailed instructions
For use with the standard (3" x 4 7/8") and wide (3" x 6.67") spool, 4-bolt mounting pattern

2015-2016 Full Size Ranger 570 (Channel Tube Roll Cage)
2015-2016 Full Size Ranger 570 Crew (Channel Tube Roll Cage)**
2013-2020 Full Size Ranger 900 4x4
2014-2020 Full Size Ranger 900 4x4 Crew **
2018-2021 Full Size Ranger North Star Edition **
2017-2021 Full Size Ranger 1000 XP
2017-2021 Full Size Ranger 1000 Crew **
2015-2018 Full Size Ranger 1000 Diesel
2016-2018 Full Size Ranger 1000 Diesel Crew
** for optimized installation an Extended Wiring Kit to reach the battery is recommended.

Brand: Viper
Part Numbers:
1x MA11904
1x MD3000_ST

Note: Image is for reference only, actual product may vary slightly.
