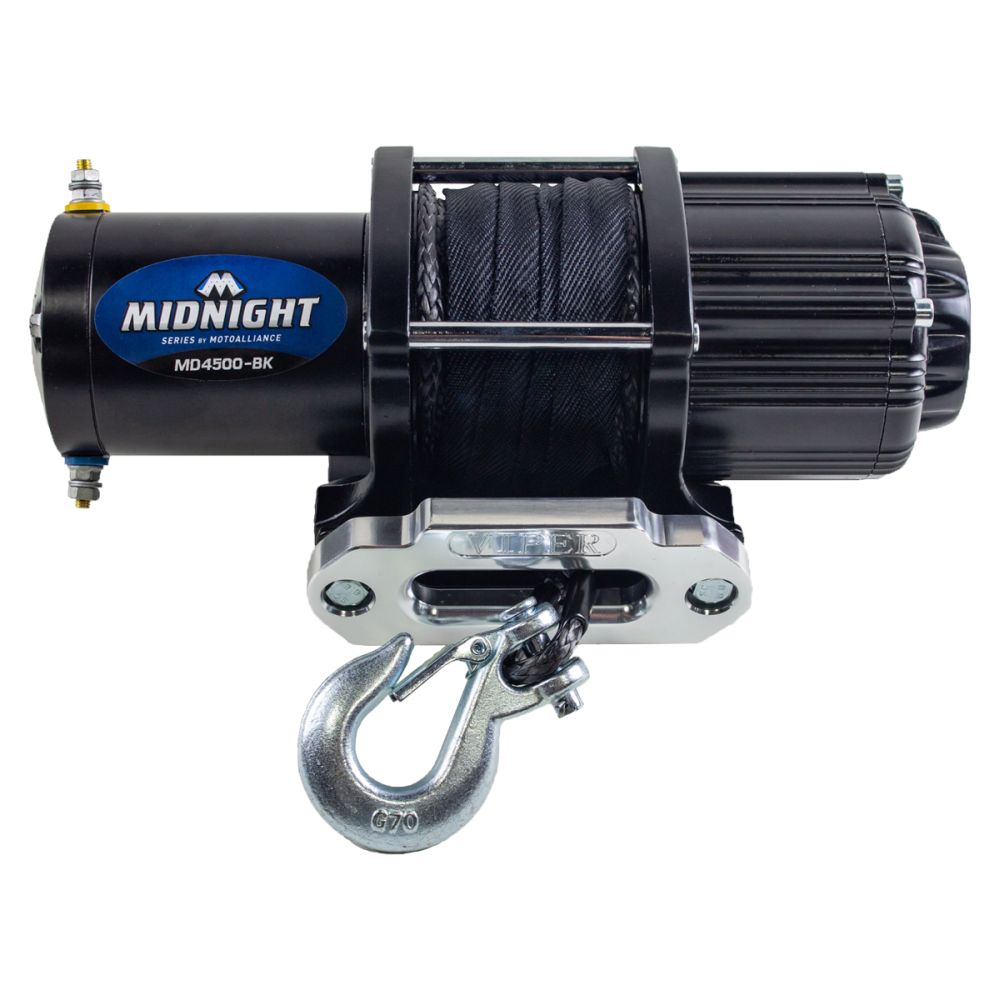

Viper Midnight ATV Winch Kit 4500 lb With 50 Feet Black Synthetic Rope With Mount
Customer Ratings
Viper Midnight ATV Winch Kit 4500 lb With 50 Feet Black Synthetic Rope With Mount
Viper Midnight ATV Winch Kit 4500 lb With 50 Feet Black Synthetic Rope With Mount
NOTES:
Kit includes all winch components and a mount
Winch Description
The VIPER Midnight 4,500lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.8 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Wireless remote switch, waterproof handle bar switch and synthetic rope are standard on this Midnight winch.
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.
Specs
- Cable - Dyneema
- Motor - 12V DC, Sealed 1.8HP permanent magnet
- Rated Line Pull - 4,500lbs (2041.47 kgs)
- Line Speed - 0 lbs - 31 Amps motor draw / 26 FPM (7.92 MPM)
- Line Speed - 4,500lbs - 308 Amps motor draw / 5 FPM (1.52 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/153:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)
Kit Contents
- 50ft BLACK Synthetic Rope
- Aluminum Hawse Fairlead
- Contact/Solenoid
- Wireless Remote Switch
- Handlebar Rocker Switch
- Clevis Hook
- Wiring
- Installation Hardware and Instructions
VIPER UTV winch mounts for ATVs and UTVs are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your UTV. Winch mount plates are also designed to utilize the strength of your UTV's frame to optimize winching efficiency.
Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard(3" x 4 7/8") and wide (3" x 6.67") spool, 4-bolt mounting pattern
Multi-mount winch cradle offers easy maneuvering of winches from the front to the back of ATVs, UTVs and SxS machines.
Holds up to a 6,000lb ATV/UTV Winch
Requires a fairlead mounting bracket (not included)
Requires a 2" Hitch Receiver (not included) installed on ATV/UTV
Please Note: Extra wiring lengths may be needed for winch installation
Brand: Viper
Part Numbers:
1x MA11970
1x MD4500_BK
Note: Image is for reference only, actual product may vary slightly.
