Viper Max ATV Winch Kit 2500 lb With 50 Feet Black Synthetic Rope With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

Winch Description

The VIPER Max 2,500lb Winch is a durable winch for ATVs, UTVs and Side by Sides. Manufactured in a ISO/TS 16949 Facility with military grade raw materials, it is a great winch for snowplowing and mudding with ATV and UTVs. The VIPER Max has a planetary metal gear train, a 1.0 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch, cabled/tethered remote switch and synthetic rope are standard on this Max winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Kit Contents:

  • - 50" x 3/16" BLACK Synthetic Rope
  • - Contactor & Wiring
  • - 9 ft. Cabled Remote Switch
  • - Rocker Handlebar Switch
  • - Aluminum Hawse Fairlead
  • - Clevis Hook
  • - Rubber Line Stopper
  • - Hand Saver Strap
  • - Universal Mount Plate (see note below)
  • - Installation Hardware and Instructions


Specs
  • - Cable - Dyneema
  • - Motor - 12V DC, Sealed 1.0HP permanent magnet
  • - Rated Line Pull - 2,500lbs (1134 kgs)
  • - Line Speed - 0 lbs - 18 Amps motor draw / 24 FPM (7.32 MPM)
  • - Line Speed - 2,500lbs - 204 Amps motor draw / 9 FPM (2.74 MPM)
  • - Gearing / Gear Ratio - 3-Stage planetary/136:1
  • - Brake - Automatic, 100% load holding
  • - Clutch - Cam Activated
  • - Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
  • - Limited Lifetime Warranty

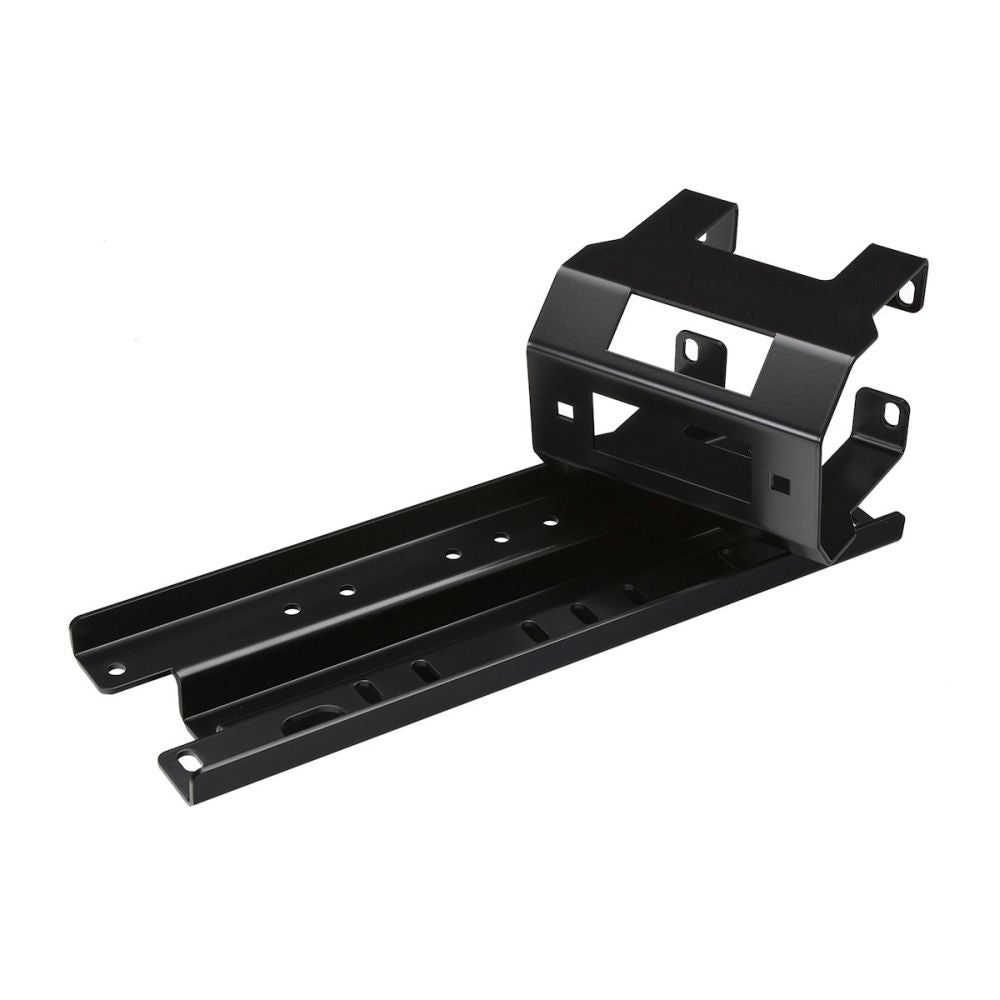

    • Mount Description

    VIPER ATV winch mounts for Polaris Sportsman are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.


    Features:
    Black industrial powder coat finish
    Includes mounting hardware and detailed instructions
    For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")

    Fitment:
    2005 Sportsman 400, 500 HO, 600, 700, 700 EFI, 800 EFI
    2006 Sportsman 450, 500 HO, 500 EFI, 700, 700 EFI, 800 EFI, X2
    2007 Sportsman 450, 500 EFI, 500 EFI X2, 700 EFI, 800 EFI, 800 EFI X2
    2008 Sportsman 500 HO, 500 EFI, 500 EFI X2, 500 EFI Touring, 700 EFI X2, 800 EFI, 800 EFI HO, 800 EFI X2, 800 EFI Touring
    2009 Sportsman 500 HO, 500 EFI, 500 EFI X2, 500 EFI Touring, 800 EFI, 800 EFI X2, 800 EFI Touring, Big Boss 6x6
    2010 Sportsman 500 HO, 500 HO Touring, 800, 800 Big Boss 6x6

    PLEASE NOTE: Max 3500lb - 5000 lb and Midnight Series 3,500-4,500lb winches can be installed on this ATV, but trimming of the housing (1/4" on each side) is required & the freespool knob wi(more...)

    Brand: Viper
    Part Numbers:
    1x MA11606
    1x MX2500_BK

    Note: Image is for reference only, actual product may vary slightly.
