Viper Max ATV Winch Kit 4000 lb With 50 Feet Steel Cable With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

Winch Description

The VIPER Max 4,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. VIPER MAX winches also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in a ISO/TS 16949 Facility with military grade raw materials, it is a great winch for snowplowing and mudding with ATV and UTVs. The VIPER Max has a sealed planetary metal gear train, a 1.6 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch, cabled/tethered remote switch and steel cable are standard on this Max winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Kit Contents:

• - 50" Steel Cable
• - Contactor & Wiring
• - 9 ft. Cabled Remote Switch

• - Rocker Handlebar Switch

• - Roller Fairlead
• - Clevis Hook
• - Rubber Line Stopper
• - Hand Saver Strap
• - Universal Mount Plate (see note below)
• - Installation Hardware and Instructions

Specs

• - Cable - Steel
• - Motor - 12V DC, Sealed 1.6HP permanent magnet
• - Rated Line Pull - 4,000lbs (1814.37 kgs)
• - Line Speed - 0 lbs - 31 Amps motor draw / 25 FPM (7.92 MPM)
• - Line Speed - 4,000lbs - 308 Amps motor draw / 5 FPM (1.52 MPM)
• - Gearing / Gear Ratio - 3-Stage planetary/136:1
• - Brake - Automatic, 100% load holding
• - Clutch - Cam Activated
• - Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
• - Limited Lifetime Warranty (winch) / Cable (6 months)

Note the Universal mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your specific machine.Mount Description

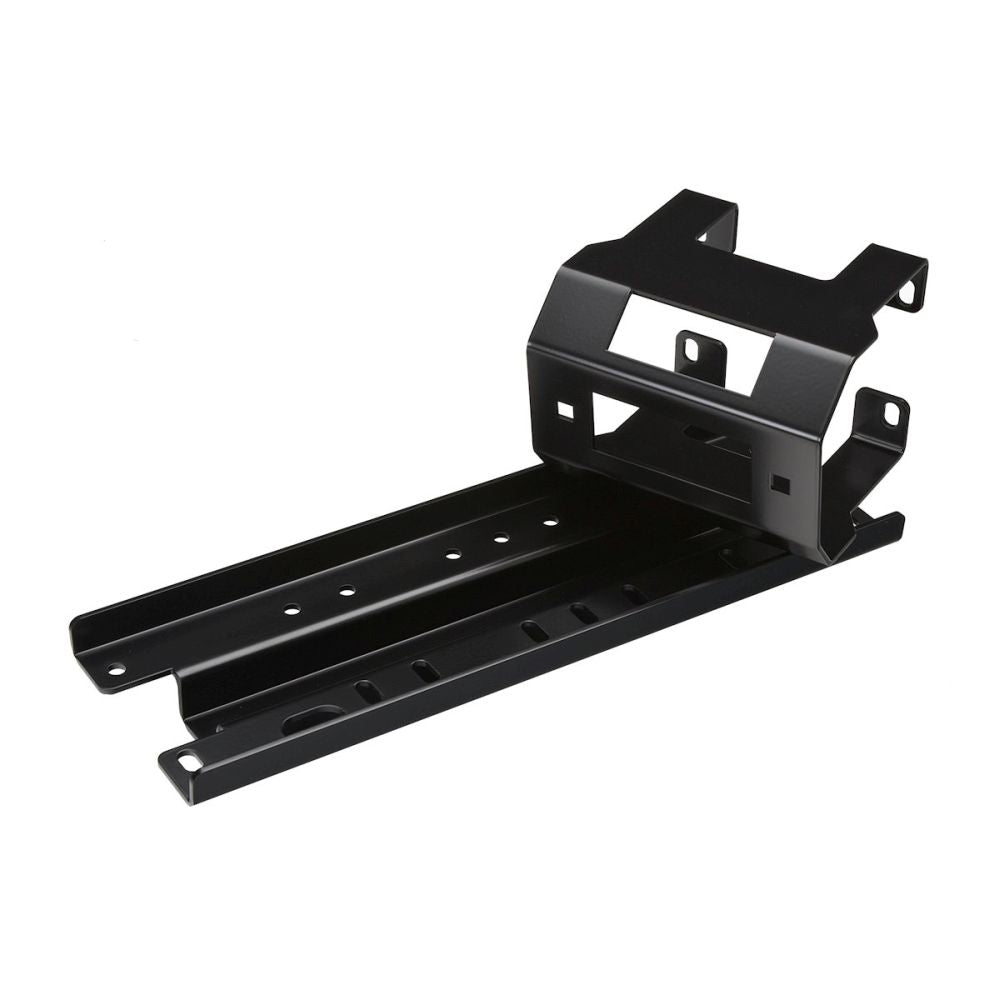

VIPER ATV winch mounts for Polaris Sportsman are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.


Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")

Fitment:
2005 Sportsman 400, 500 HO, 600, 700, 700 EFI, 800 EFI
2006 Sportsman 450, 500 HO, 500 EFI, 700, 700 EFI, 800 EFI, X2
2007 Sportsman 450, 500 EFI, 500 EFI X2, 700 EFI, 800 EFI, 800 EFI X2
2008 Sportsman 500 HO, 500 EFI, 500 EFI X2, 500 EFI Touring, 700 EFI X2, 800 EFI, 800 EFI HO, 800 EFI X2, 800 EFI Touring
2009 Sportsman 500 HO, 500 EFI, 500 EFI X2, 500 EFI Touring, 800 EFI, 800 EFI X2, 800 EFI Touring, Big Boss 6x6
2010 Sportsman 500 HO, 500 HO Touring, 800, 800 Big Boss 6x6

PLEASE NOTE: Max 3500lb - 5000 lb and Midnight Series 3,500-4,500lb winches can be installed on this ATV, but trimming of the housing (1/4" on each side) is required & the freespool knob wi(more...)

Brand: Viper
Part Numbers:
1x MA11606
1x MX4000

Note: Image is for reference only, actual product may vary slightly.
