Viper Max ATV Winch Kit 5000 lb With 50 Feet Black Synthetic Rope With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

Winch Description

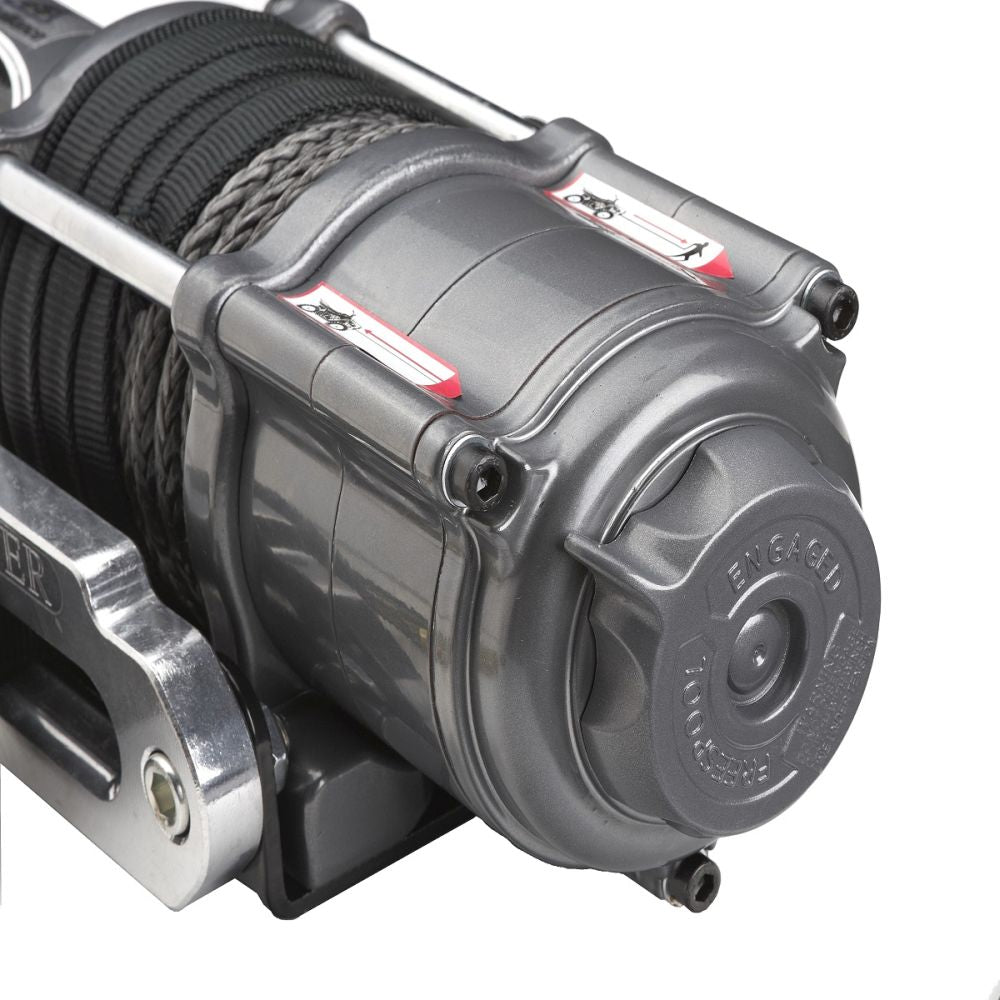

The VIPER Max 5,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. VIPER MAX winches also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in a ISO/TS 16949 Facility with military grade raw materials, it is a great winch for snowplowing and mudding with ATV and UTVs. The VIPER Max has a sealed planetary metal gear train, a 1.95 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch, cabled/tethered remote switch and synthetic rope are standard on this Max winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.



Kit Contents:

• - 40? x 1/4? BLACK Synthetic Rope
• - Contactor & Wiring

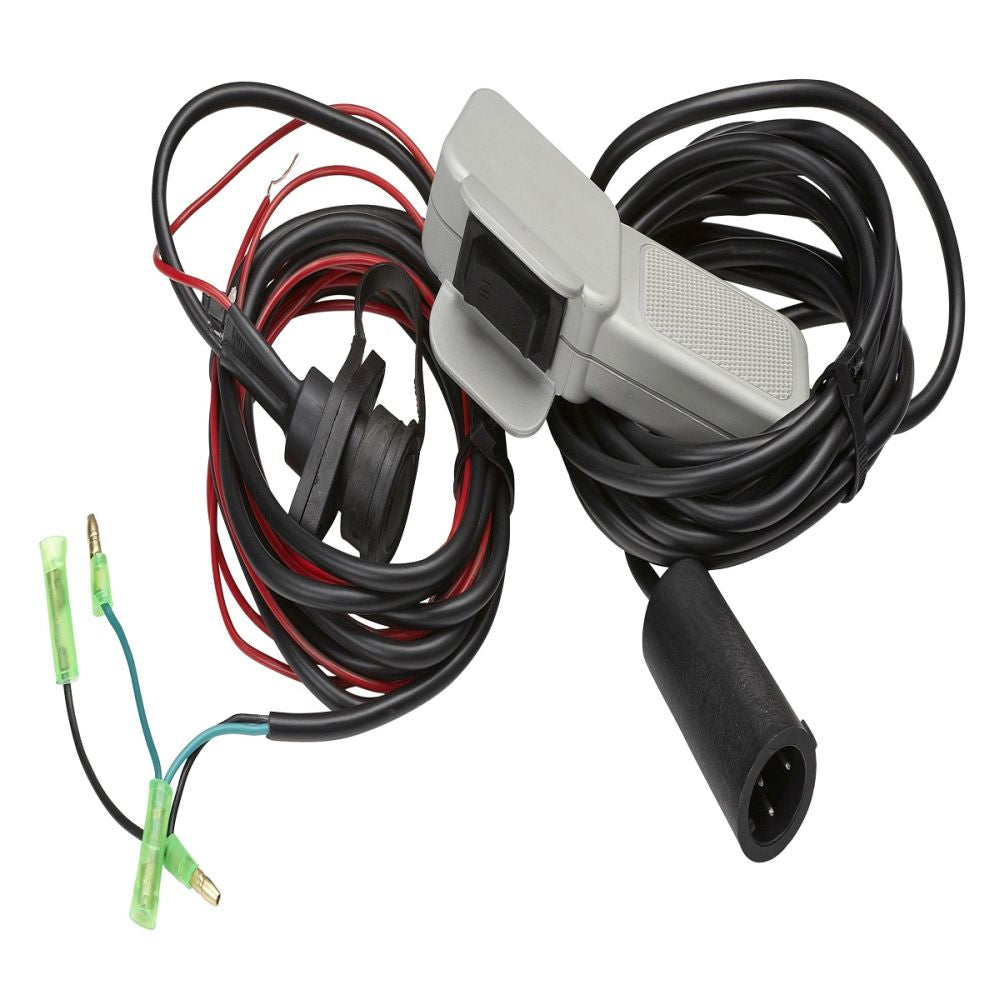

• - 9 ft. Cabled Remote Switch

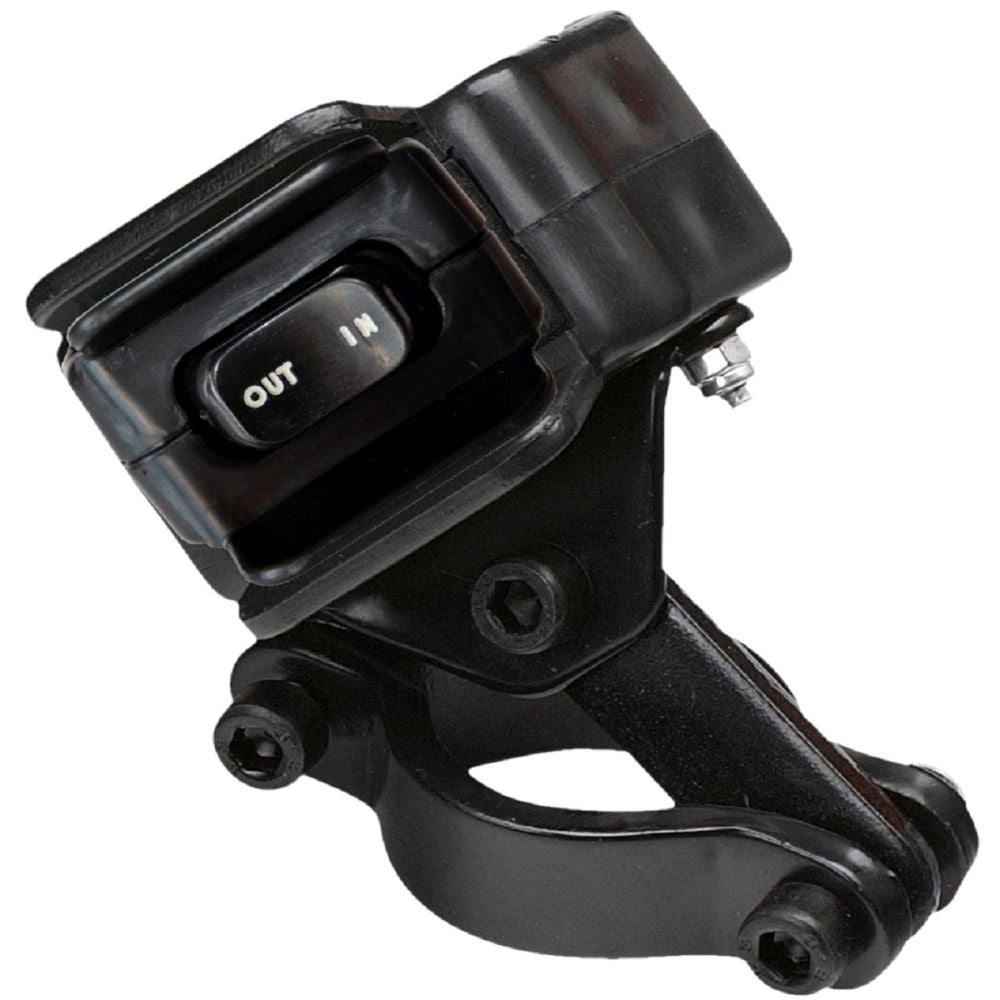

• - Rocker Handlebar Switch

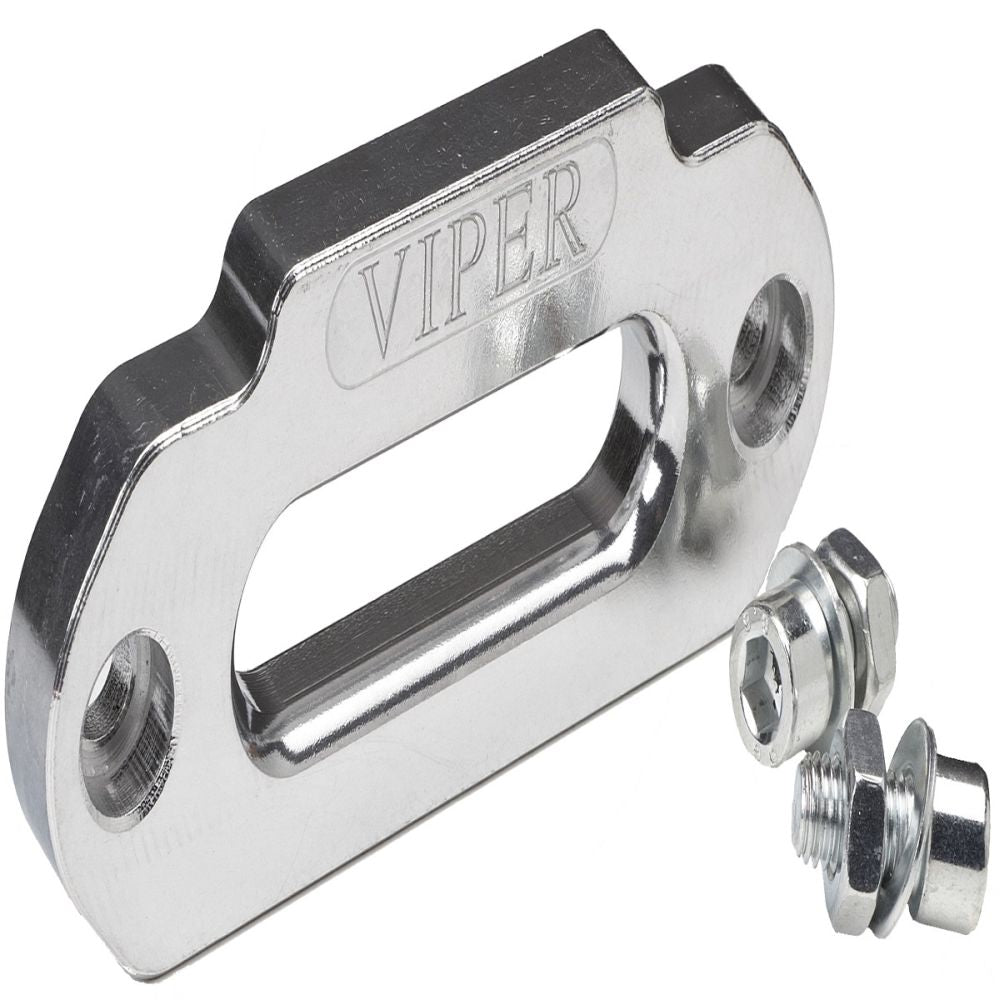

• - Aluminum Hawse Fairlead
• - Clevis Hook
• - Rubber Line Stopper
• - Hand Saver Strap
• - Universal Mount Plate (see note below)
• - Installation Hardware and Instructions

Specs

• - Cable - BLACK Dyneema
• - Motor - 12V DC, Sealed 1.95HP permanent magnet
• - Rated Line Pull - 5,000lbs (2267.96 kgs)
• - Line Speed - 0 lbs - 31 Amps motor draw / 26 FPM (7.92MPM)
• - Line Speed - 5,000lbs - 330 Amps motor draw / 2 FPM (.61 MPM)
• - Gearing / Gear Ratio - 3-Stage planetary/136:1
• - Brake - Automatic, 100% load holding
• - Clutch - Cam Activated
• - Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
• - Limited Lifetime Warranty (winch) / Cable (6 months)

Note the Universal mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your specific machine.Mount Description

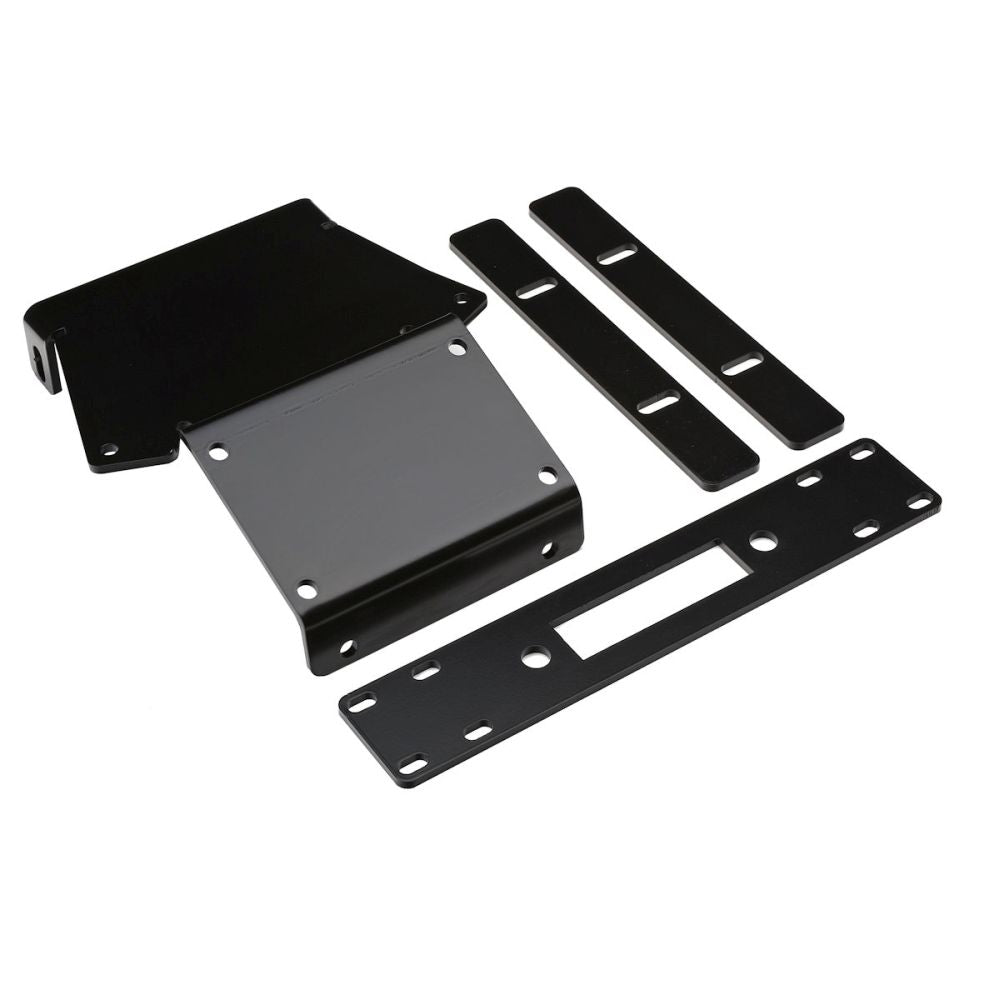

VIPER ATV winch mount plates by MotoAlliance are laser cut and shaped to exacting specifications to fit your Honda Rancher. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.


Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")

Fitment:
2000-2003 Rancher 350, 400

Brand: Viper
Part Numbers:
1x MA11917B
1x MX5000_BK

Note: Image is for reference only, actual product may vary slightly.
