Viper Max UTV Winch Kit 4000 lb With 50 Feet Steel Cable With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

Winch Description

The VIPER Max 4,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. VIPER MAX winches also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in a ISO/TS 16949 Facility with military grade raw materials, it is a great winch for snowplowing and mudding with ATV and UTVs. The VIPER Max has a sealed planetary metal gear train, a 1.6 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch, cabled/tethered remote switch and steel cable are standard on this Max winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Kit Contents:

• - 50" Steel Cable
• - Contactor & Wiring
• - 9 ft. Cabled Remote Switch

• - Rocker Handlebar Switch

• - Roller Fairlead
• - Clevis Hook
• - Rubber Line Stopper
• - Hand Saver Strap
• - Universal Mount Plate (see note below)
• - Installation Hardware and Instructions

Specs

• - Cable - Steel
• - Motor - 12V DC, Sealed 1.6HP permanent magnet
• - Rated Line Pull - 4,000lbs (1814.37 kgs)
• - Line Speed - 0 lbs - 31 Amps motor draw / 25 FPM (7.92 MPM)
• - Line Speed - 4,000lbs - 308 Amps motor draw / 5 FPM (1.52 MPM)
• - Gearing / Gear Ratio - 3-Stage planetary/136:1
• - Brake - Automatic, 100% load holding
• - Clutch - Cam Activated
• - Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
• - Limited Lifetime Warranty (winch) / Cable (6 months)

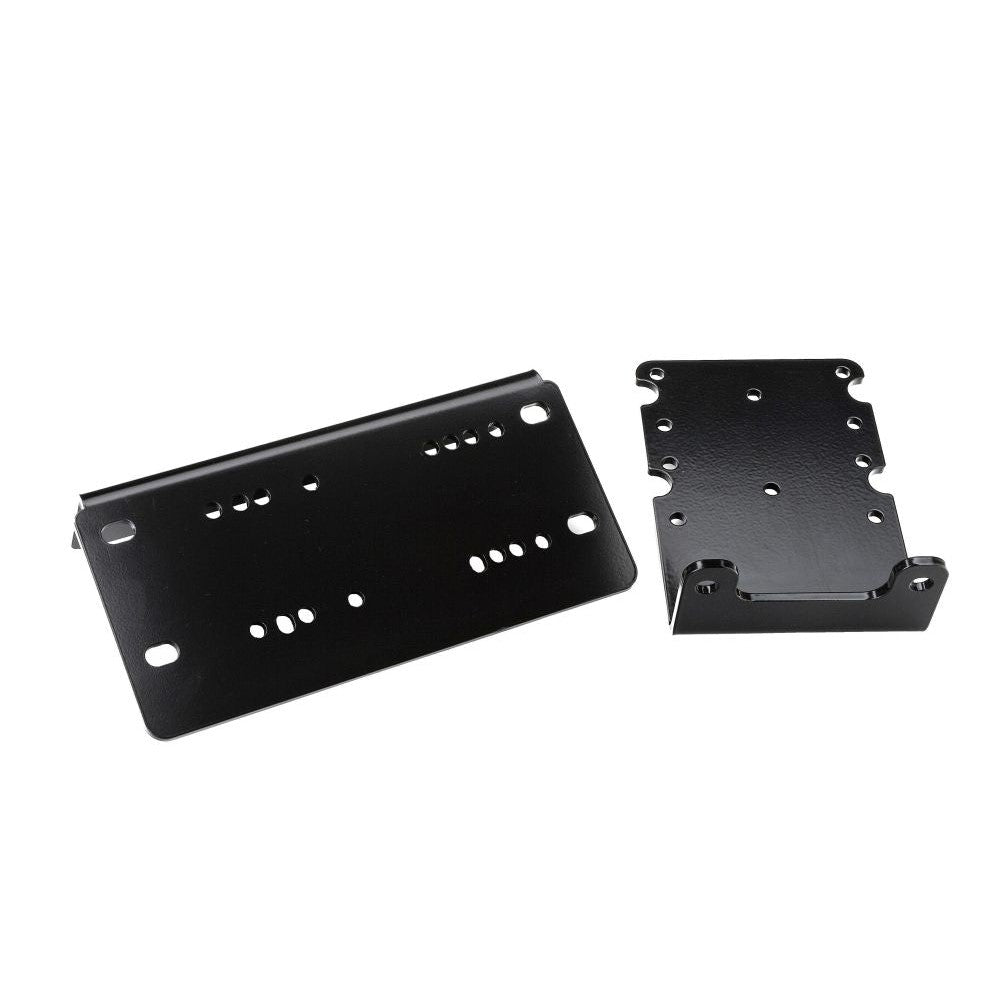

Note the Universal mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your specific machine.Mount Description

VIPER winch mounts are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment we provide a precise and custom fit for your UTV / SxS. Winch mount plates are also designed to utilize the strength of your UTV / SxS's frame to optimize winching efficiency.

• Black industrial powder coat finish
• Includes mounting hardware and detailed instructions
• For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")

Fitment:

• 2004-2008 Kubota RTV 900
• Please Note: this mount fits inside the Kubota winch cubby

Brand: Viper
Part Numbers:
1x MA11980
1x MX4000

Note: Image is for reference only, actual product may vary slightly.
