Viper Midnight ATV Winch Kit 3000 lb With 50 Feet Black Synthetic Rope With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

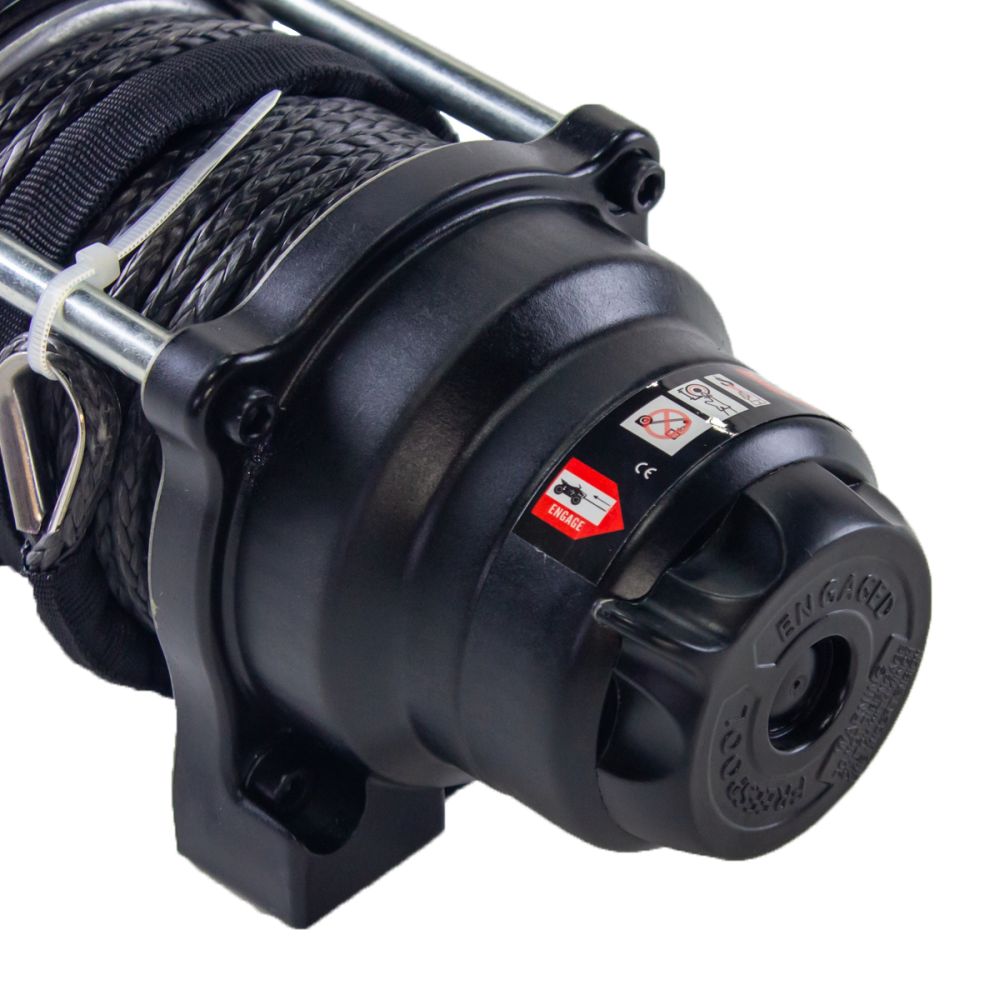

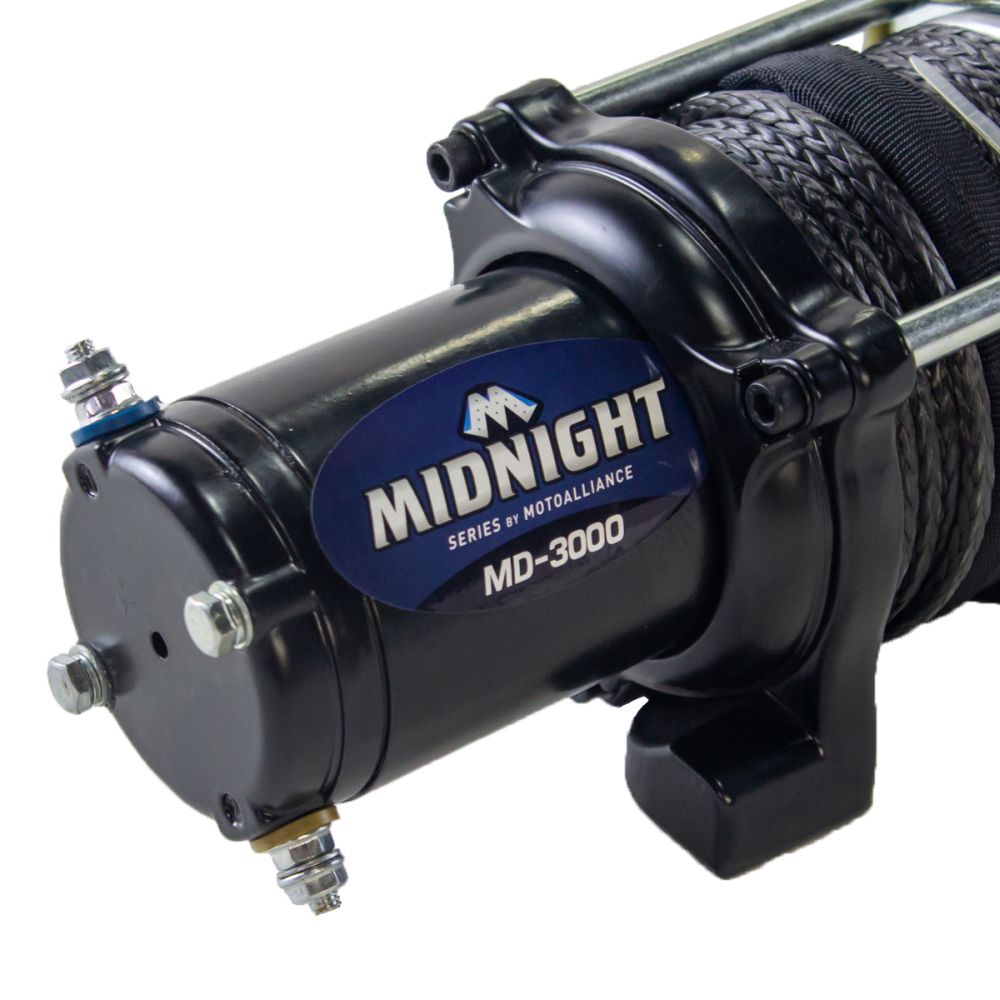

Winch Description

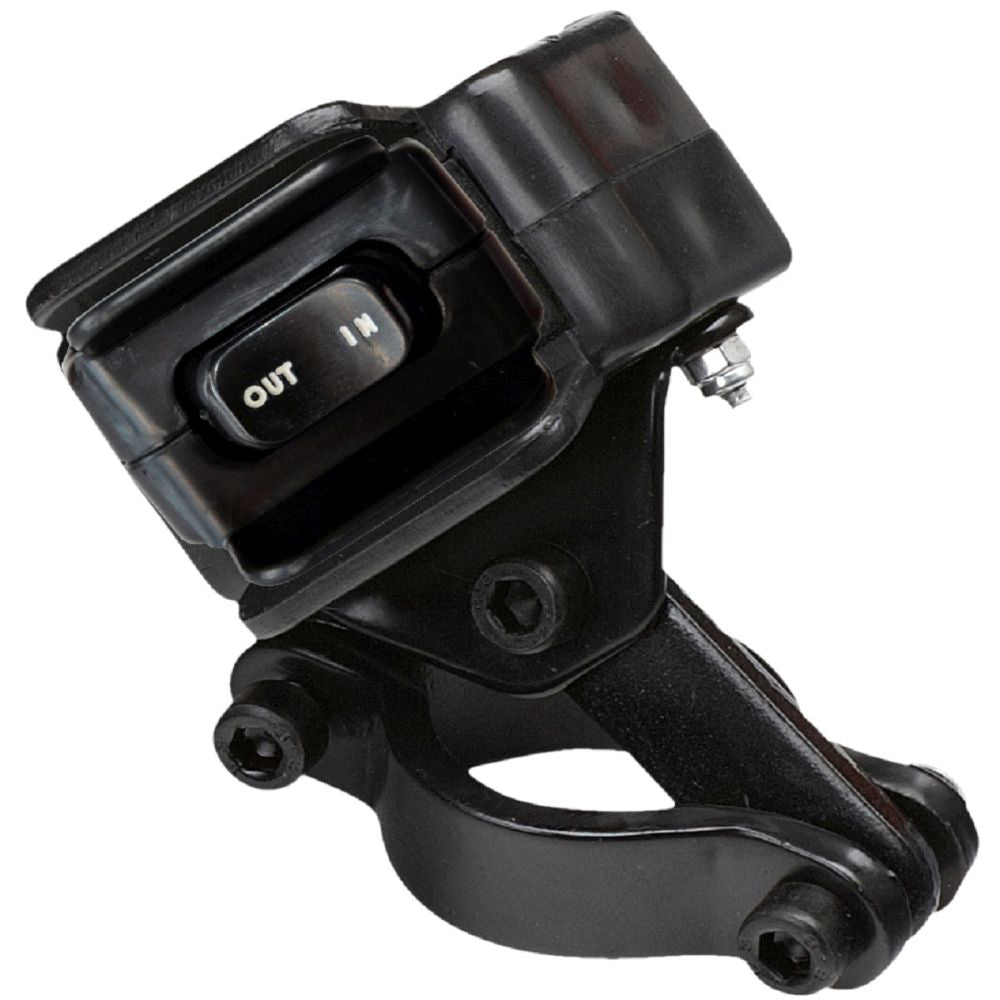

The VIPER Midnight 3,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.1 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch and synthetic rope are standard on this Midnight winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Specs
- Cable - Dyneema
- Motor - 12V DC, Sealed 1.1HP permanent magnet
- Rated Line Pull - 3,000lbs (1360.78 kgs)
- Line Speed - 0 lbs - 18 Amps motor draw / 25 FPM (7.62 MPM)
- Line Speed - 3,000lbs - 202 Amps motor draw / 7 FPM (2.13 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)


Kit Contents-
- 50ft BLACK Synthetic Rope

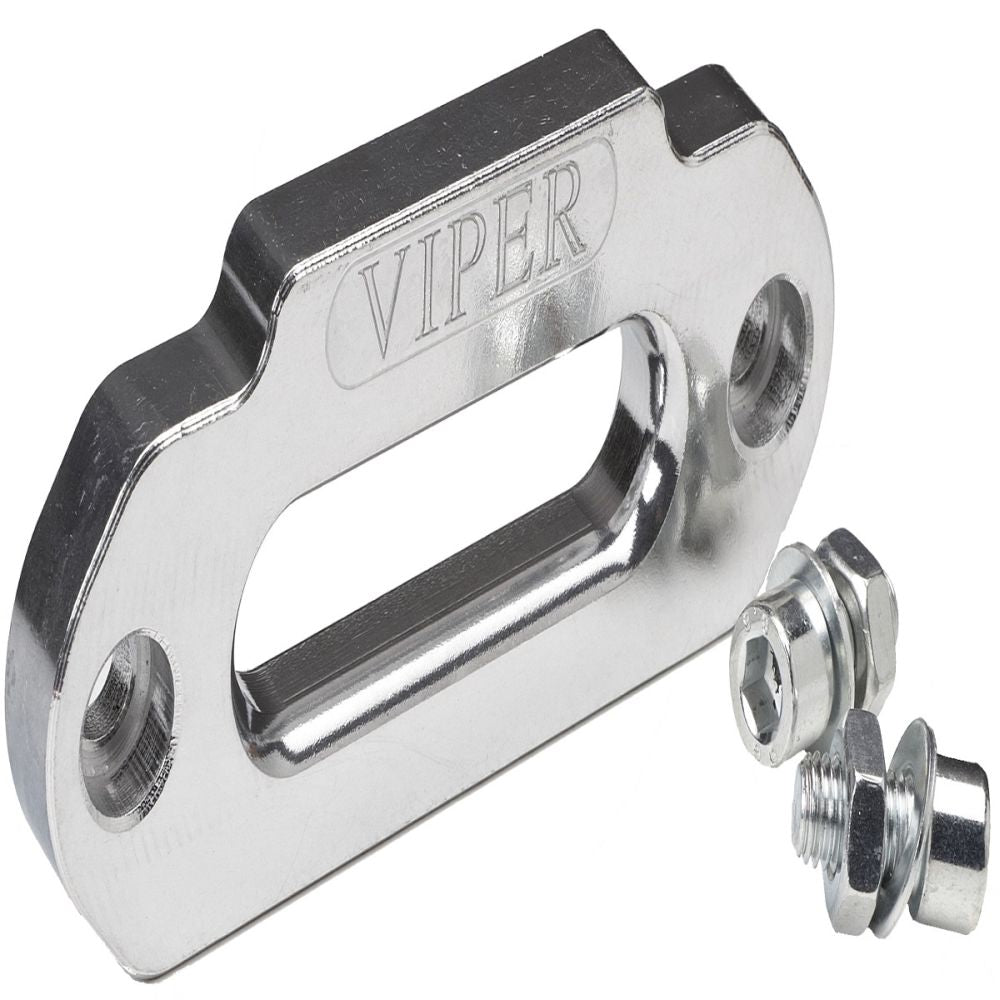

- Aluminum Hawse Fairlead
- Contact/Solenoid
- Clevis Hook
- Wiring
- Installation Hardware and Instructions

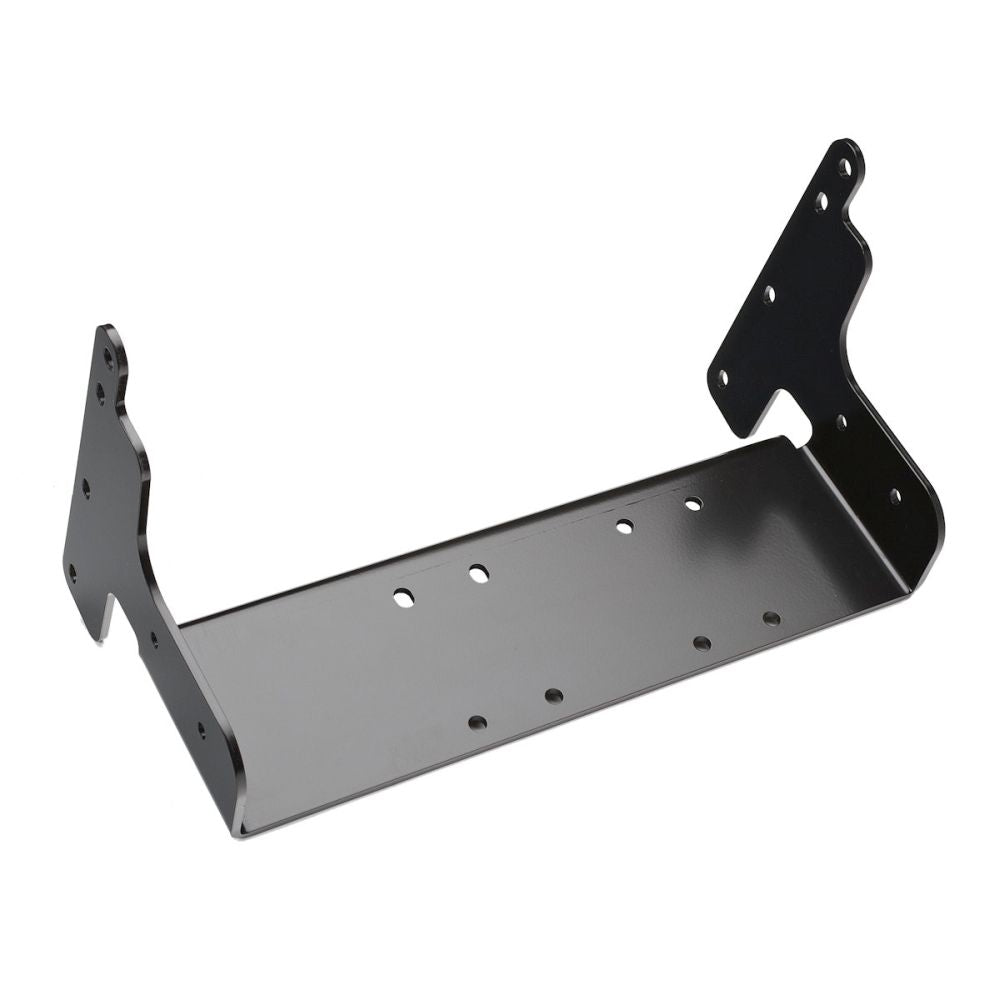

Mount Description

VIPER ATV winch mounts for Polaris are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.


Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")

Please Note: Winch mount ONLY works with models without an accessory bumper installed.

Fitment:
2004-2005 ATP 330, 500HO
1999-2001 Diesel 500
2003-2006 Magnum 300
2000-2002 Magnum 325 4x4 (does not fit the 2x4)
1999-2002 Magnum 500
1999-2000 Sportsman 325
1996-2000 Sportsman 500
2001-2003 Sportsman 400, 500HO
2000-2008 Sportsman 6x6
2000-2002 Xpedition 325, 425
1996-1999 Xpress 300
1996-1997 Xpress 400L
1996-1999 Xplorer 300
1998-2004 Xplorer 400
1996-1997 Xplorer 400L
1997-1998 Xplorer 500

Brand: Viper
Part Numbers:
1x MA11601
1x MD3000_BK

Note: Image is for reference only, actual product may vary slightly.
