Viper Midnight ATV Winch Kit 4500 lb With 50 Feet Steel Cable With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

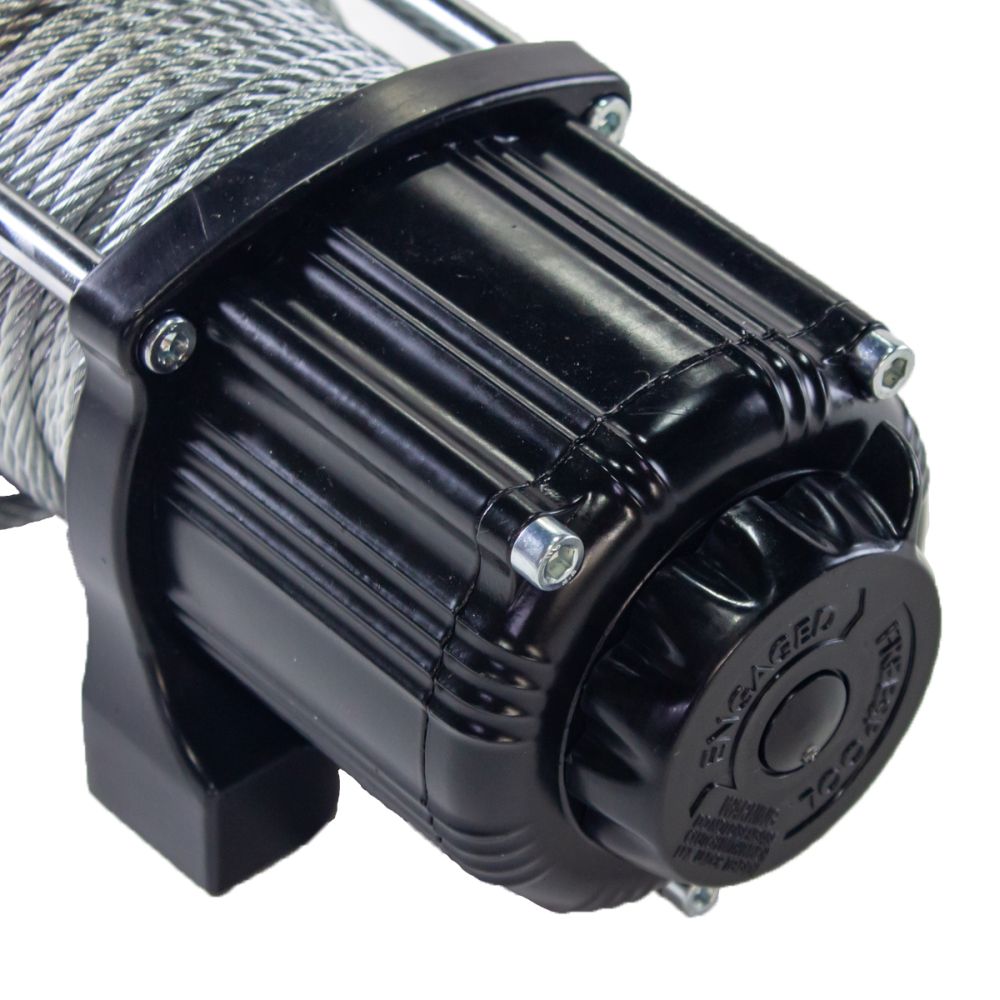

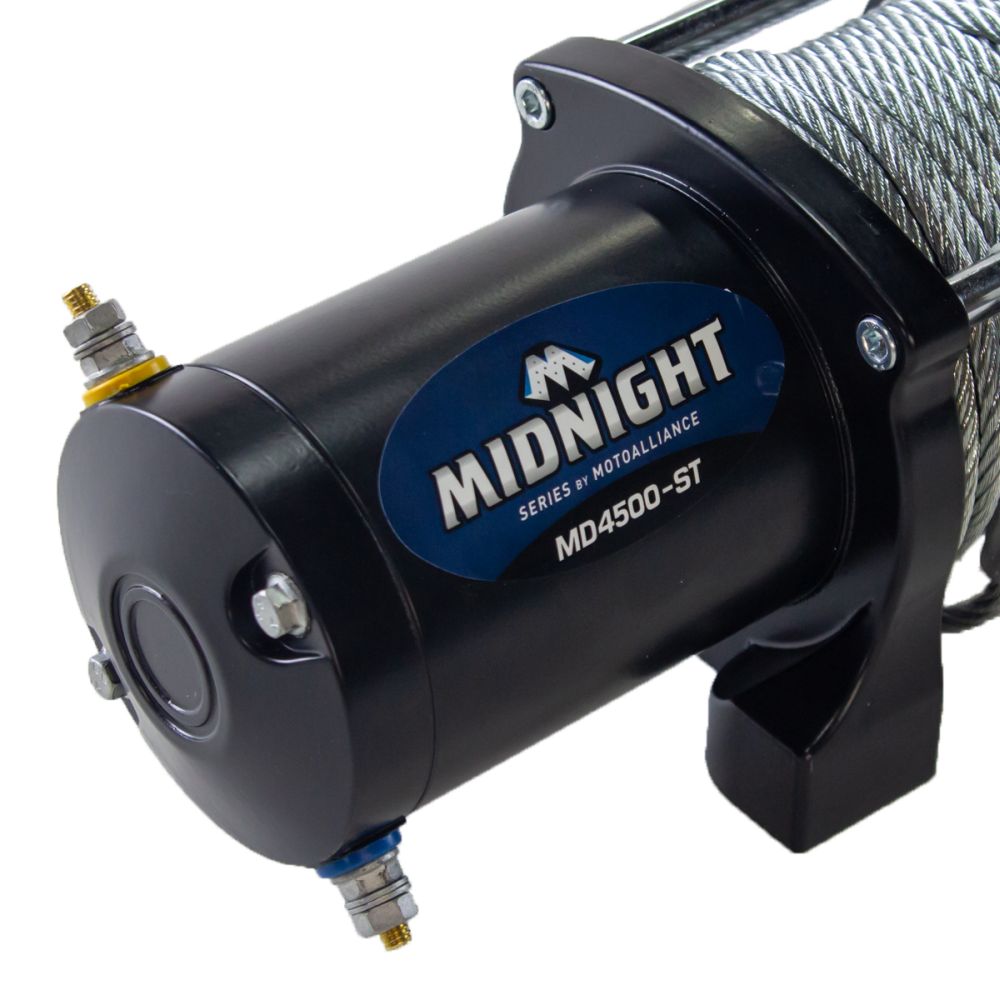

Winch Description

The VIPER Midnight 4,500lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.8 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Wireless remote switch, waterproof handle bar switch and steel cable are standard on this Midnight winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Specs
- Cable - Steel
- Motor - 12V DC, Sealed 1.8HP permanent magnet
- Rated Line Pull - 4,500lbs (2041.47 kgs)
- Line Speed - 0 lbs - 31 Amps motor draw / 26 FPM (7.92 MPM)
- Line Speed - 4,500lbs - 308 Amps motor draw / 5 FPM (1.52 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/153:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)

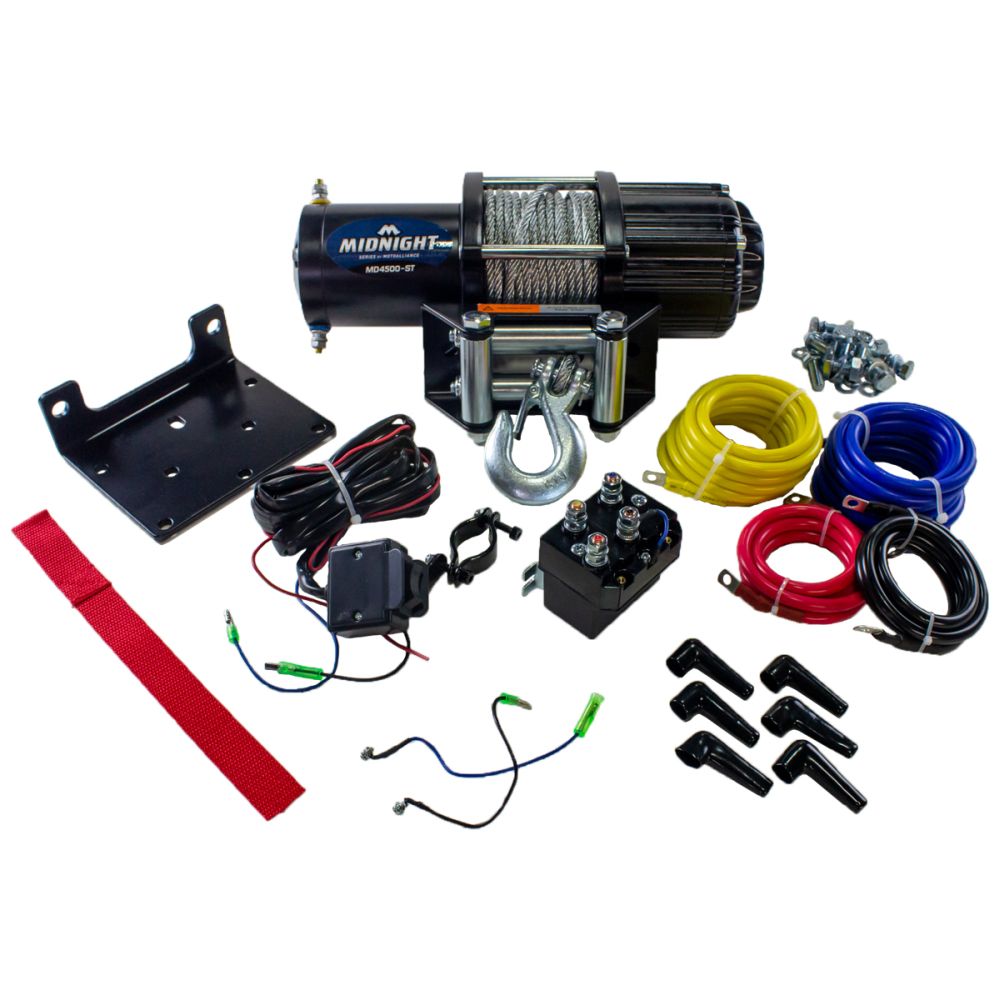

Kit Contents
- 50ft Steel Cable

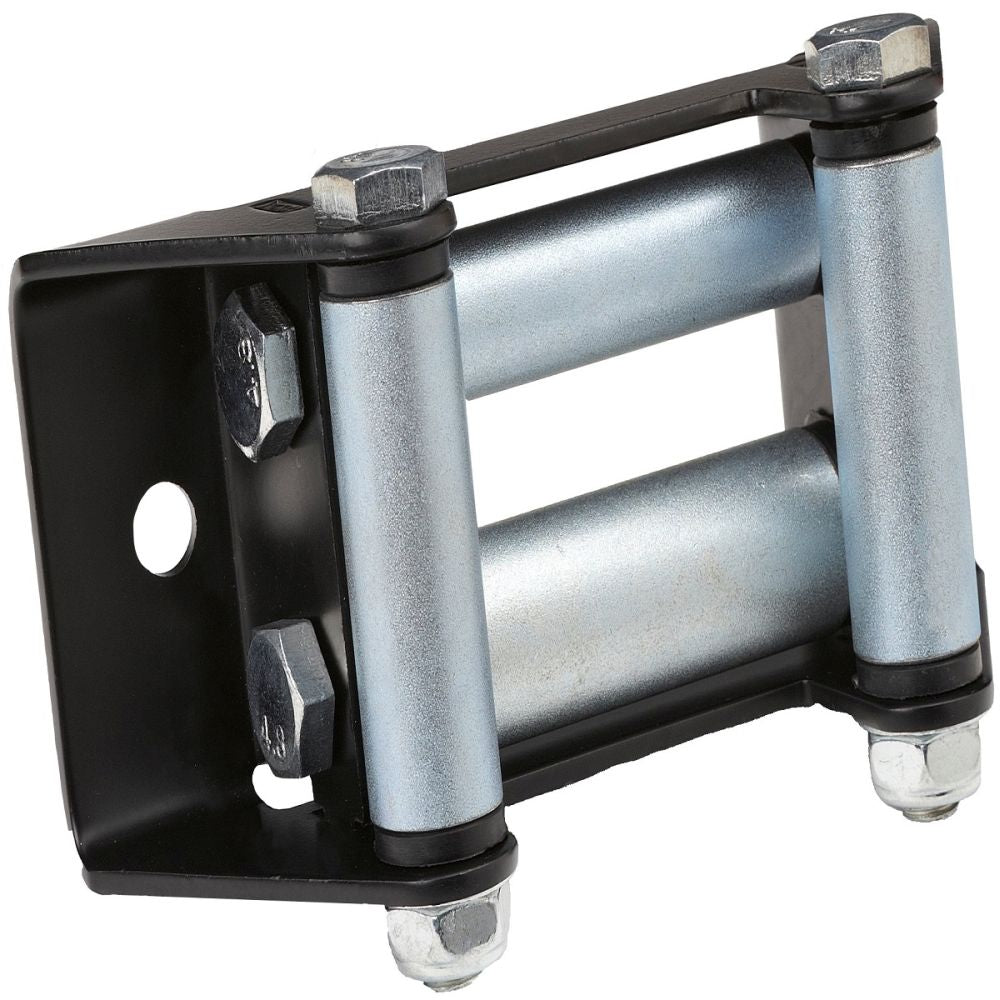

- Roller Fairlead

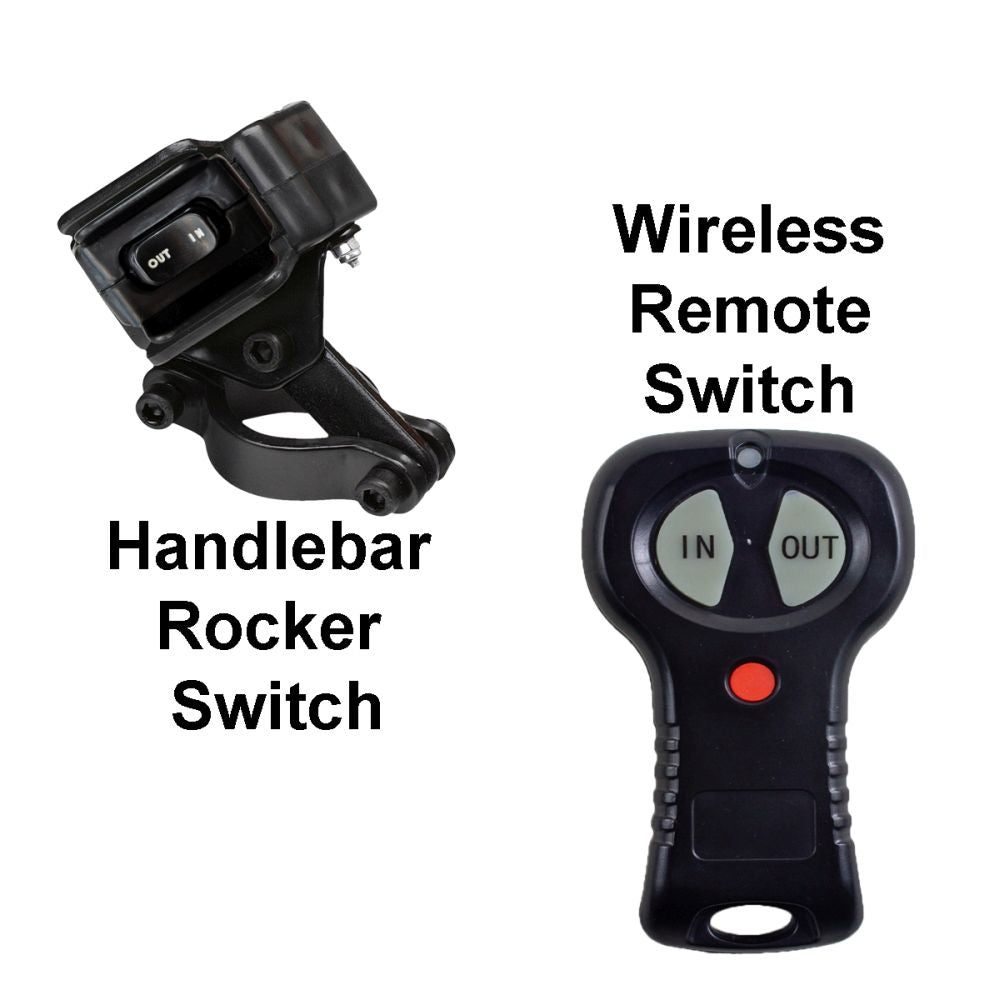

- Wireless Remote Switch
- Handlebar Rocker Switch
- Contact/Solenoid
- Clevis Hook
- Wiring
- Installation Hardware and Instructions

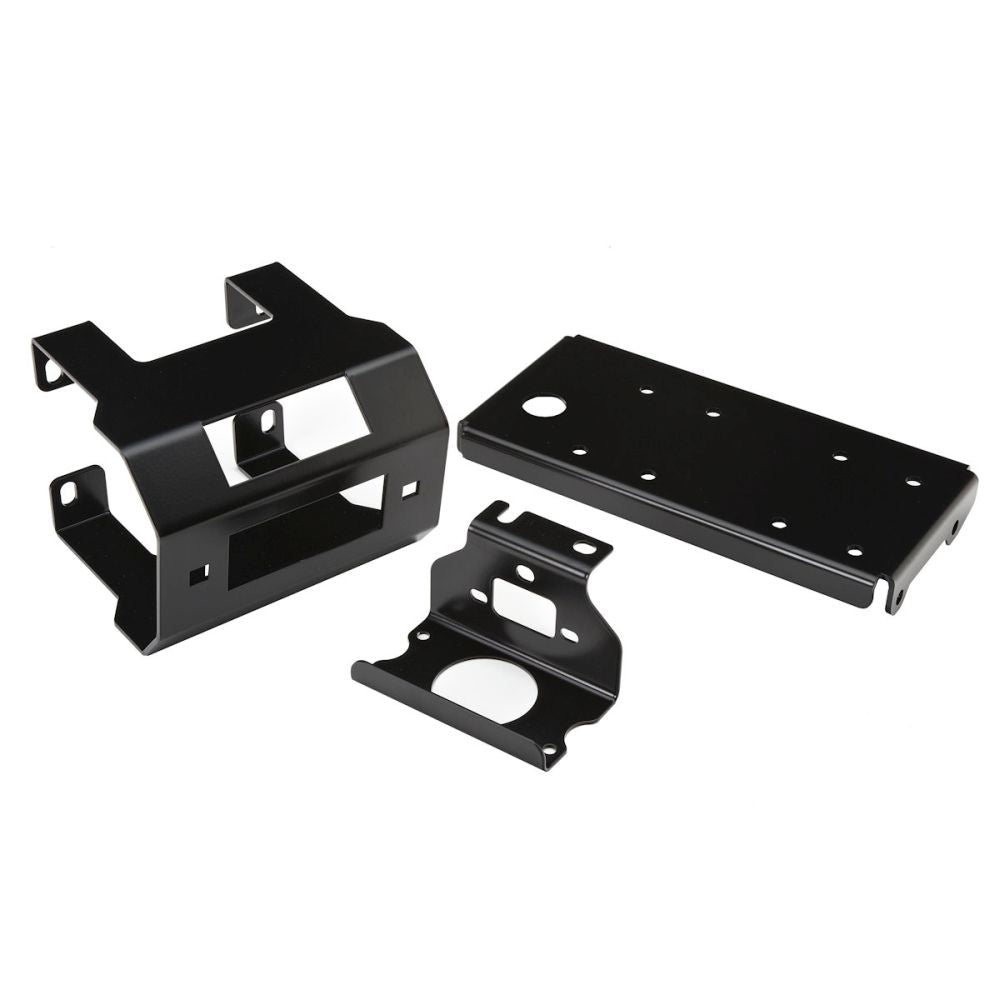

Mount Description

VIPER ATV winch mounts for Polaris Sportsman are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.


Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")

Fitment:
2002 700 Twin
2003 600 & 700 Twin
2004 All Sportsman models except 6x6

Please Note: requires winches with offset cables
Please Note: Max and Midnight 3000 (MX3000 & MD3000) winches are a bit larger than the space between the headlights, and require some trimming of the plastic housing to fit

Brand: Viper
Part Numbers:
1x MA11603
1x MD4500_ST

Note: Image is for reference only, actual product may vary slightly.
