Viper V2 UTV Winch Kit 3500 lb Standard Spool With 40 Feet Green Synthetic Rope With Mount For Kawasaki Teryx/Teryx4 750 2014-2020
Customer Ratings
Viper V2 UTV Winch Kit 3500 lb Standard Spool With 40 Feet Green Synthetic Rope With Mount For Kawasaki Teryx/Teryx4 750 2014-2020
Viper V2 UTV Winch Kit 3500 lb Standard Spool With 40 Feet Green Synthetic Rope With Mount
NOTES:
Kit includes all winch components and a vehicle specific mount
Winch Description

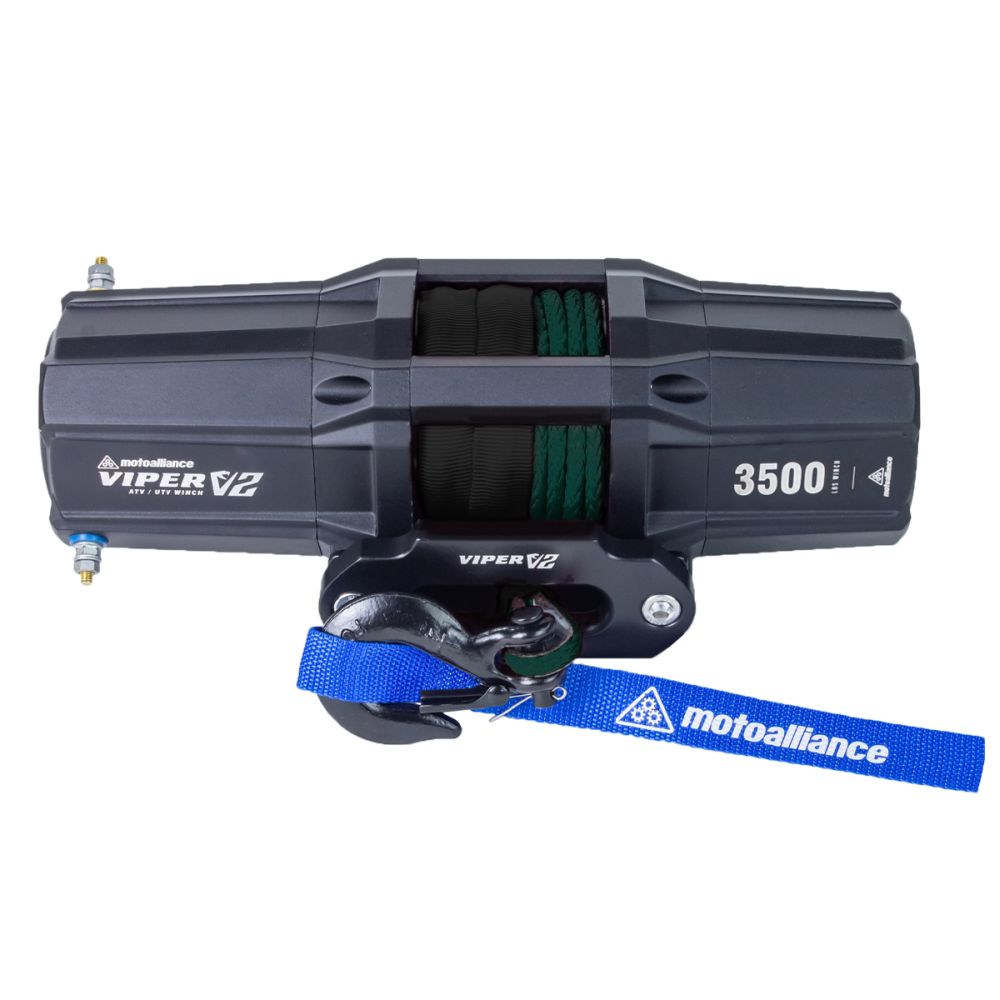

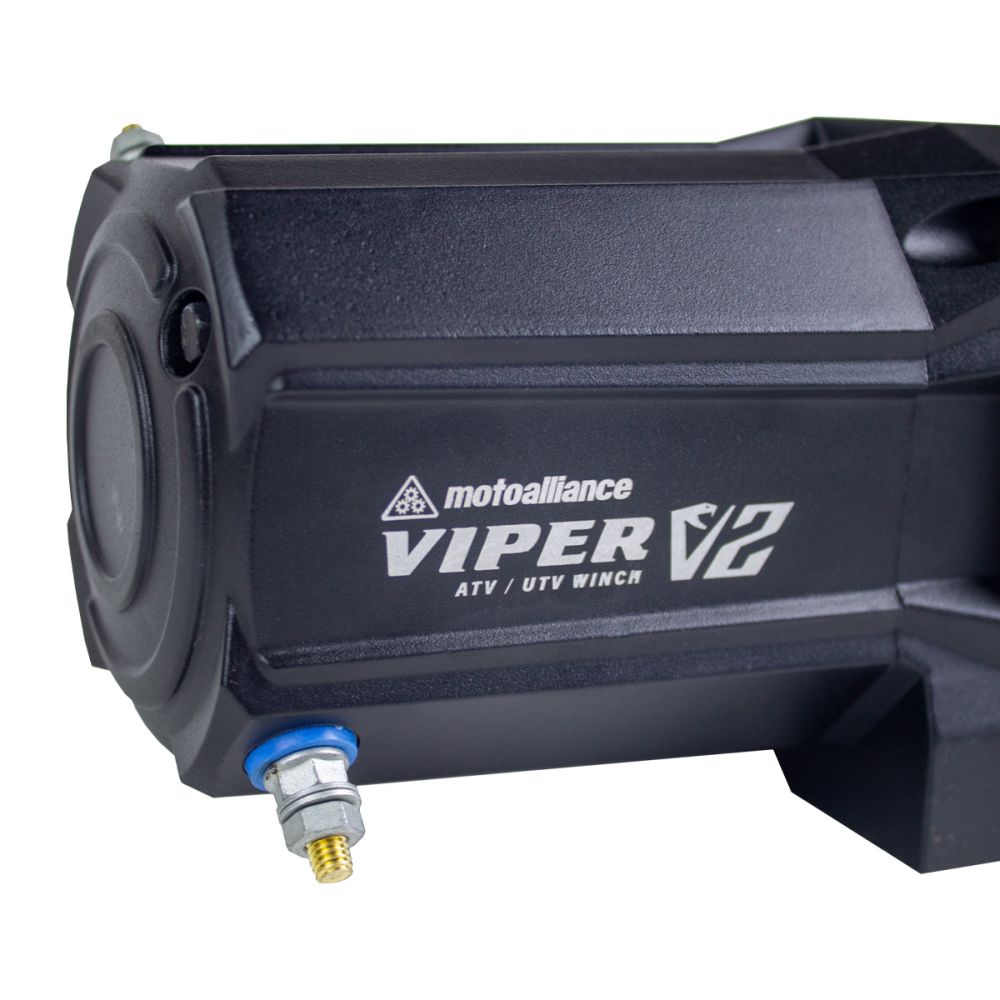

Viper V2 Standard Spool ATV/ UTV Winch - a NEW GENERATION OF VIPER!
The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. Boasting a sleek design to match next-gen machines, sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient.
Riders who love aesthetics: the V2 has been designed to impress. Every component, from the laser-marked winch body to the blacked-out stainless-steel hook to the ?stealth? wiring, falls in line with the elevated design standard of VIPER Winches of 2022. In addition, all V2s are hand-wound with your color choice of USA-made AmSteel-Blue synthetic rope.
The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits. winch.
Features:
- IP67 Waterproof Rating
- Wireless Remote System with unique frequency
- Planetary metal gear train and permanent magnet motor
- Automatic brake
- Limited Lifetime Warranty (winch) / Rope (1 year)

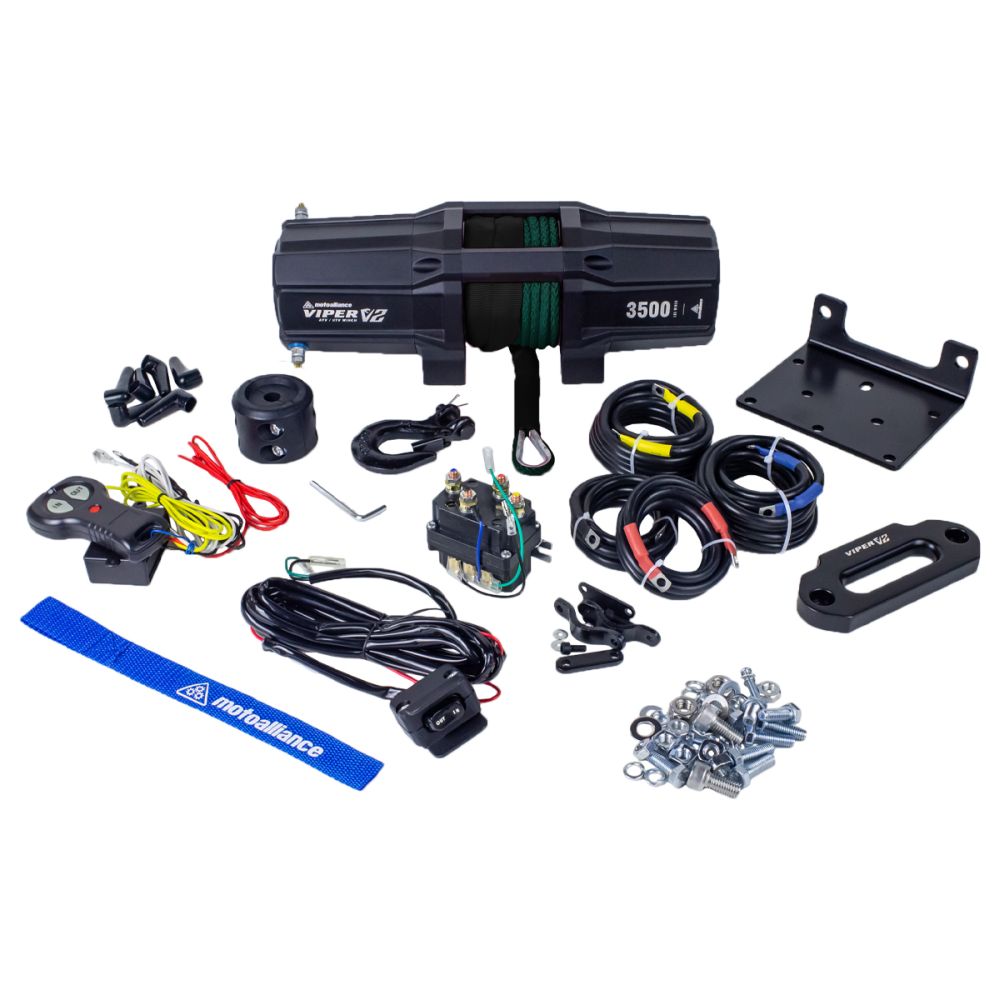

Kit Contents:
- 40" x ?" diameter AmSteel-Blue Synthetic Cable (1 year warranty)

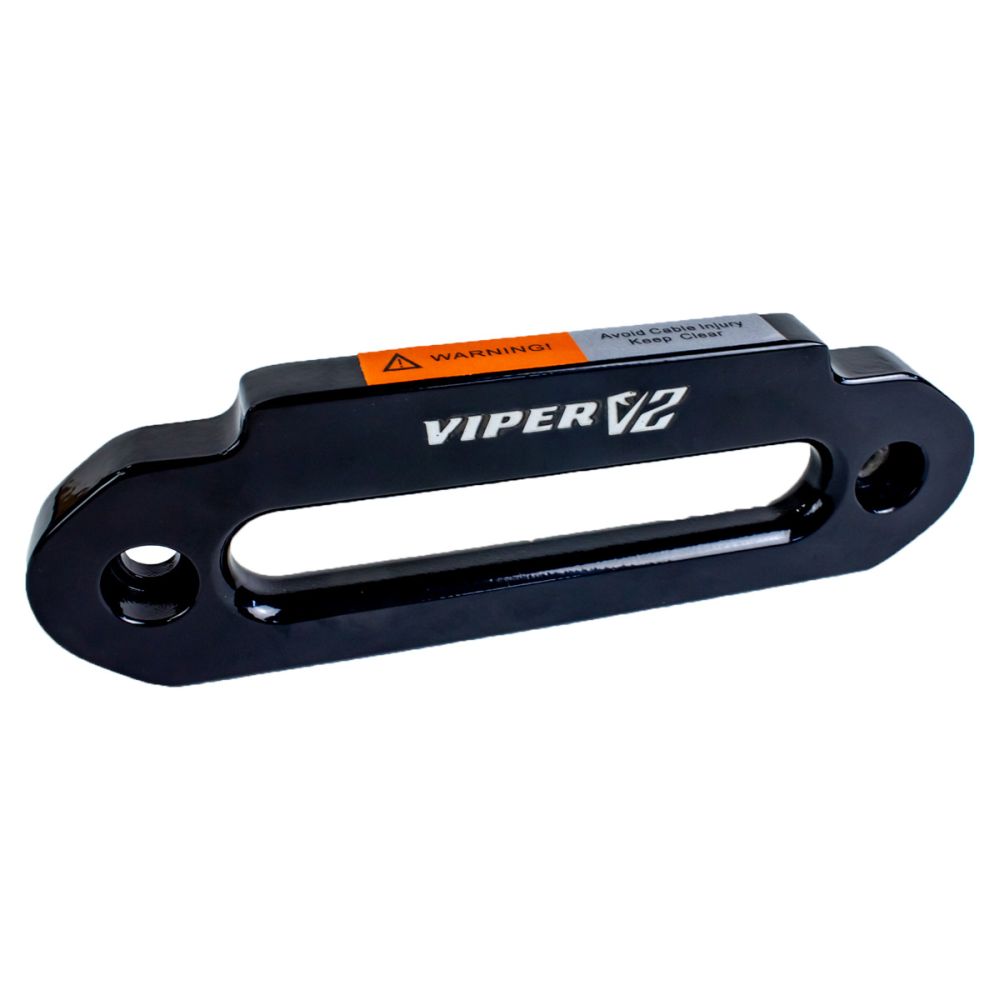

- Aluminum Hawse Fairlead

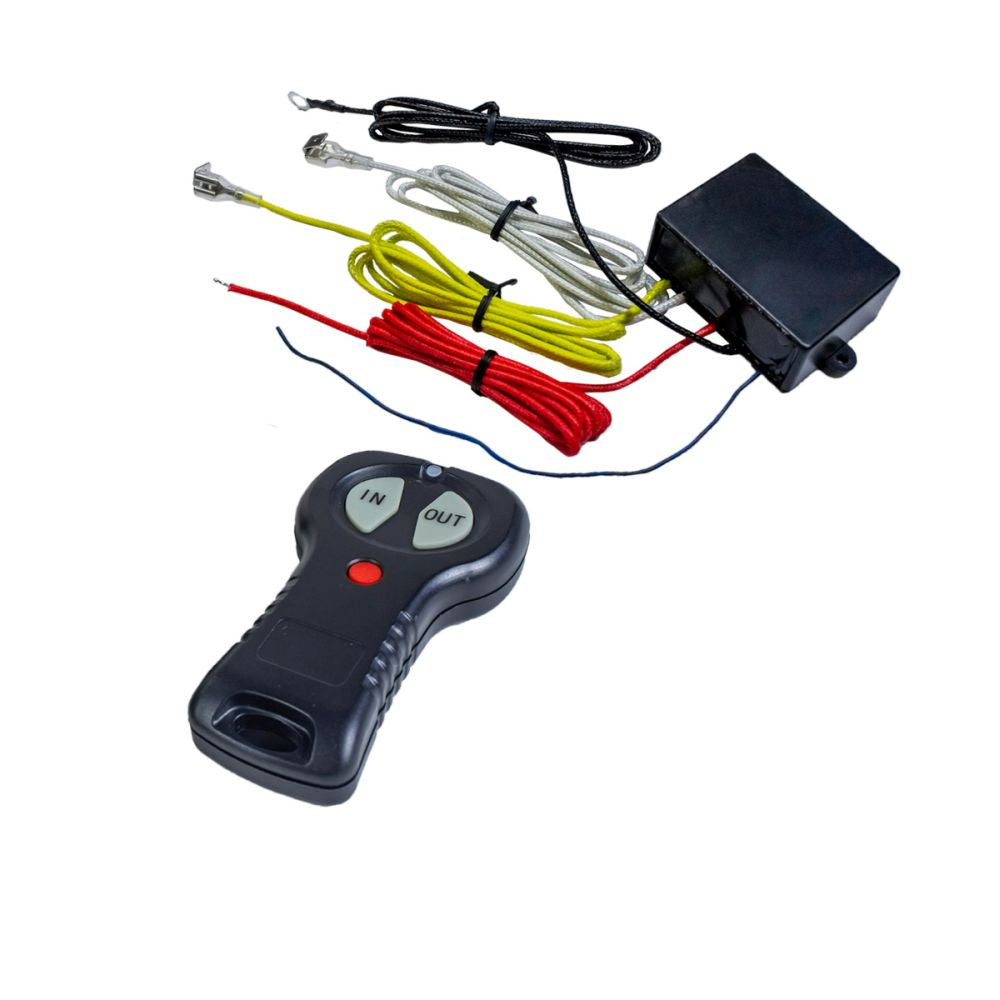

- Wireless Remote Switch
- Contactor & Wiring
- Black Clevis Hook
- Rocker Handlebar Switch
- Rubber Line Stopper (two-piece)
- Hand Saver Strap
- Installation Hardware and Instructions
Specs
- Cable - AmSteel-Blue Synthetic, 5,400lb max load rating
- Motor - 12V DC, Sealed permanent magnet
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Sliding Ring Gear
- Wiring - 6 gauge (English)
- Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- Dimensions:
- 15.125 (L) x 4.75 (H) x 4.75 (D) inches
- 20 lbs

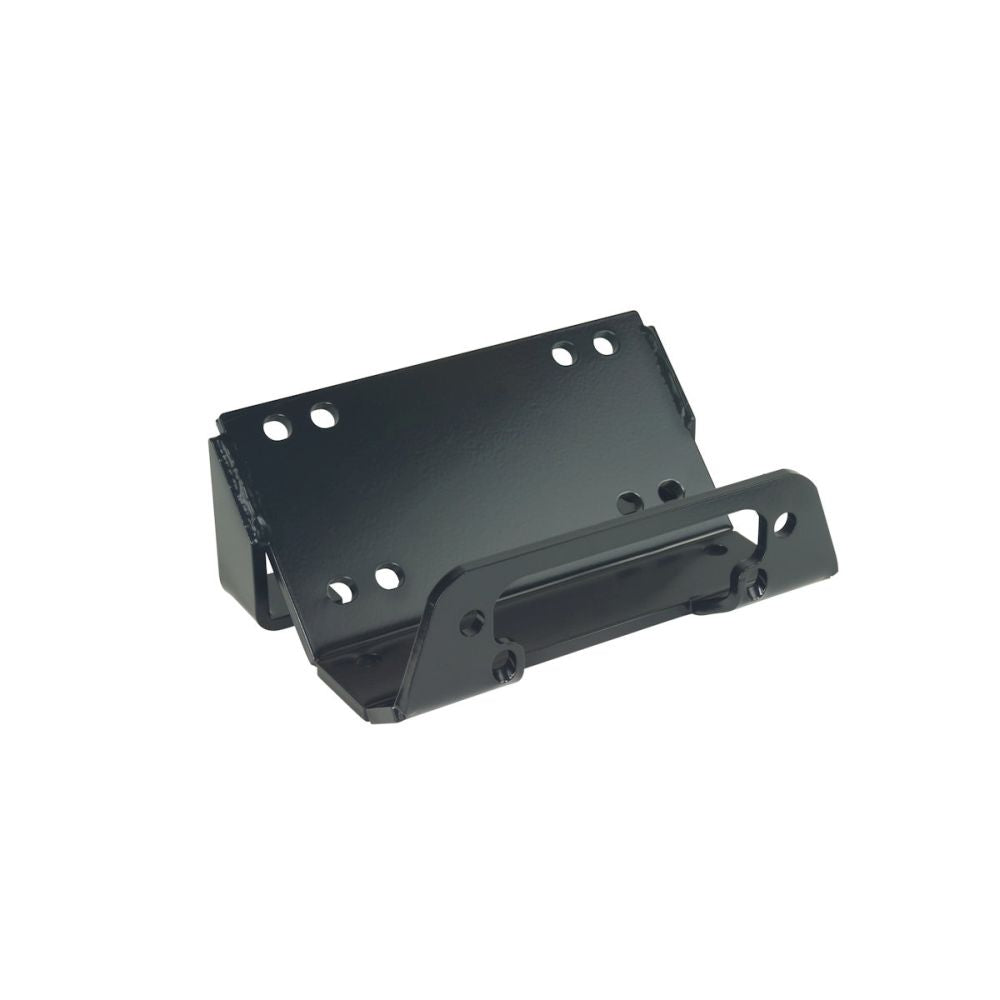

Mount Description
VIPER UTV winch mounts for Kawasaki Teryx are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your UTV. Winch mount plates are also designed to utilize the strength of your UTV's frame to optimize winching efficiency.
Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard(3" x 4 7/8") and wide (3" x 6.67") spool, 4-bolt mounting pattern
2012-2013 Teryx 4 (4-seater) 750
2014-2020 Teryx 4 (4-seater) all models
2014-2020 Teryx 2 (2-seater) all models
Please Note: We HIGHLY recommend an MX3500-5000lb or any Elite winch for use on Teryx 2 and 4s. Max 2000-3000lb winches need to have the motor clocked in order to prevent the terminals from interfering with the bumper. Max 3500-5000lb and Elite 3000-5000lb winches do not require clocking.
Brand: Viper
Part Numbers:
1x MA11937
1x VT3500
1x GR40
Note: Image is for reference only, actual product may vary slightly.
