Viper V2 UTV Winch Kit 4500 lb Wide Spool With 60 Feet Orange Synthetic Rope With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

Winch Description

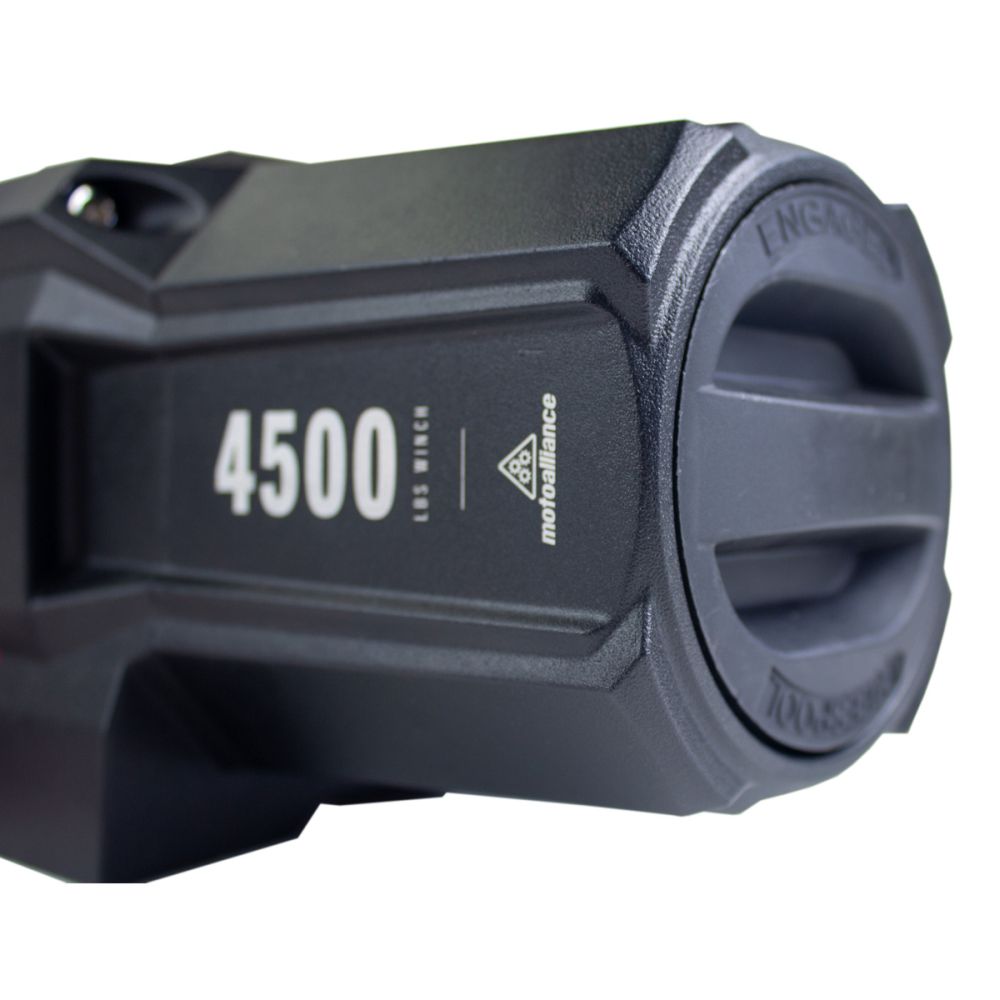

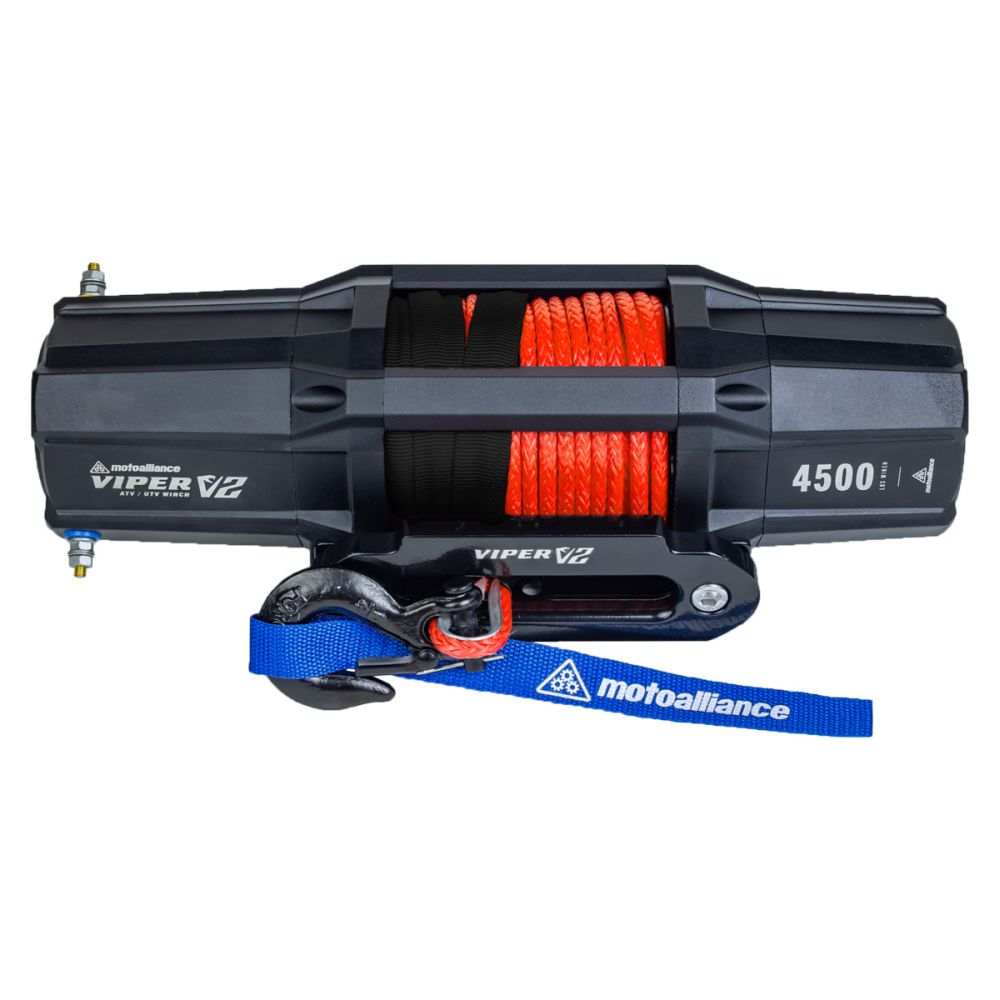

Viper V2 Wide Spool UTV Winch - a NEW GENERATION OF VIPER!

The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. Boasting a sleek design to match next-gen machines, sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient.

Riders who love aesthetics: the V2 has been designed to impress. Every component, from the laser-marked winch body to the blacked-out stainless-steel hook to the ?stealth? wiring, falls in line with the elevated design standard of VIPER Winches of 2022. In addition, all V2s are hand-wound with your color choice of USA-made AmSteel?-Blue synthetic rope.

The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits. winch.


Features:

• ? IP67 Waterproof Rating
• ? Wireless Remote System with unique frequency
• ? Flush Mount Dash Switch
• ? Planetary metal gear train and permanent magnet motor
• ? Automatic brake
• ? Limited Lifetime Warranty (winch) / Rope (1 year)

Kit Contents:

• ? 60? x ?? diameter AmSteel?-Blue Synthetic Cable (1 year warranty)

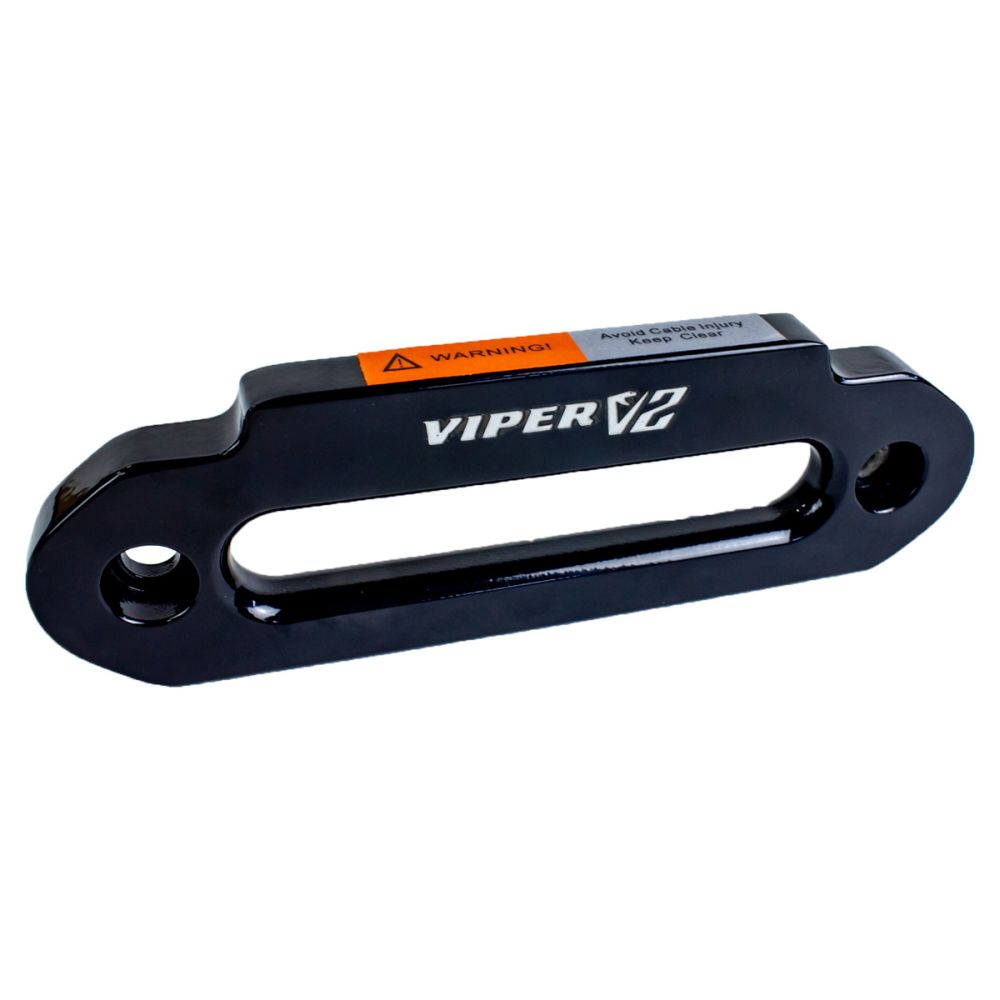

• ? Aluminum Hawse Fairlead

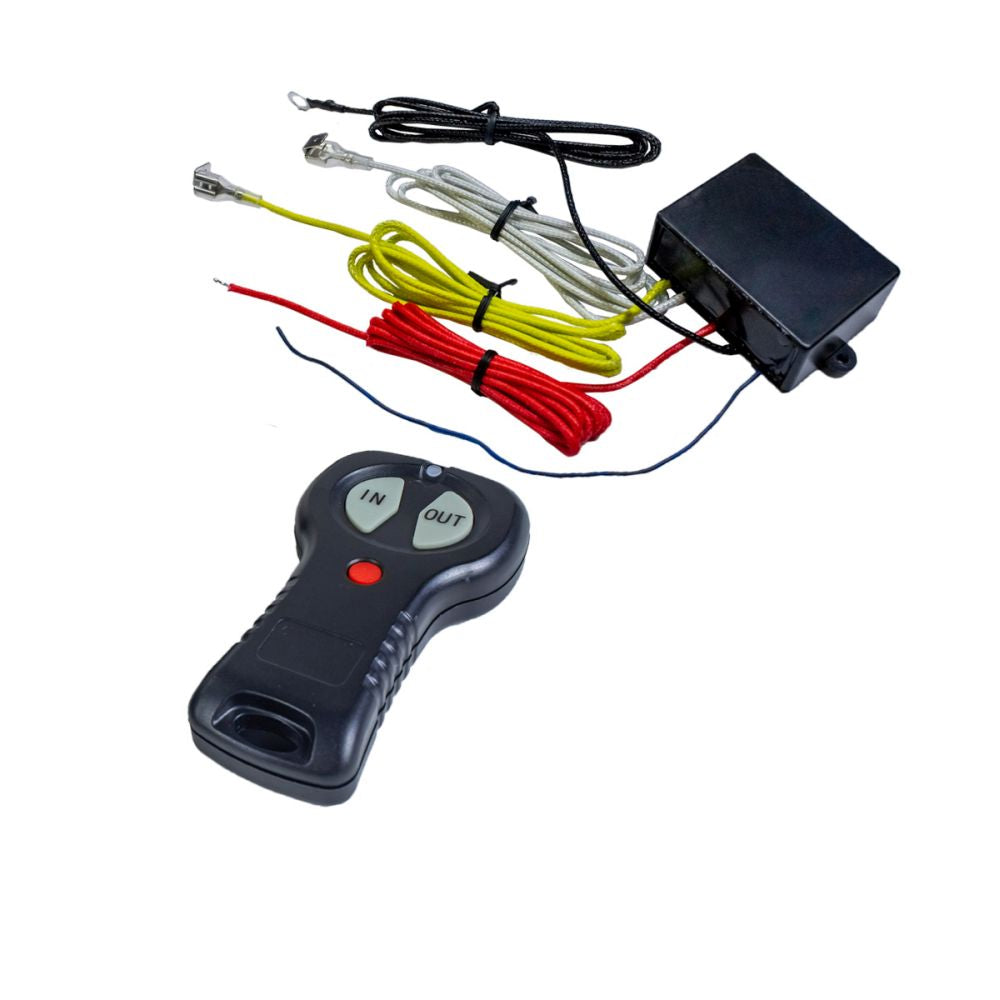

• ? Wireless Remote Switch
• ? Flush Mount Dash Switch
• ? Contactor & Wiring
• ? Black Clevis Hook
• ? Rubber Line Stopper (two-piece)
• ? Hand Saver Strap
• ? Installation Hardware and Instructions

Specs

• ? Cable - AmSteel?-Blue Synthetic, 8,600lb max load rating
• ? Motor - 12V DC, Sealed permanent magnet
• ? Gearing / Gear Ratio - 3-Stage planetary/136:1
• ? Brake - Automatic, 100% load holding
• ? Clutch - Sliding Ring Gear
• ? Wiring - 6 gauge (English)

• ? Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
• ? Mounting Bolt Pattern - 3.0 inch x 6.67 inch (76mm x 169.42mm)
• ? Dimensions:
• ?16.25 (L) x 4.75 (H) x 4.75 (D) inches
• ?20.8 lbs

Mount Description

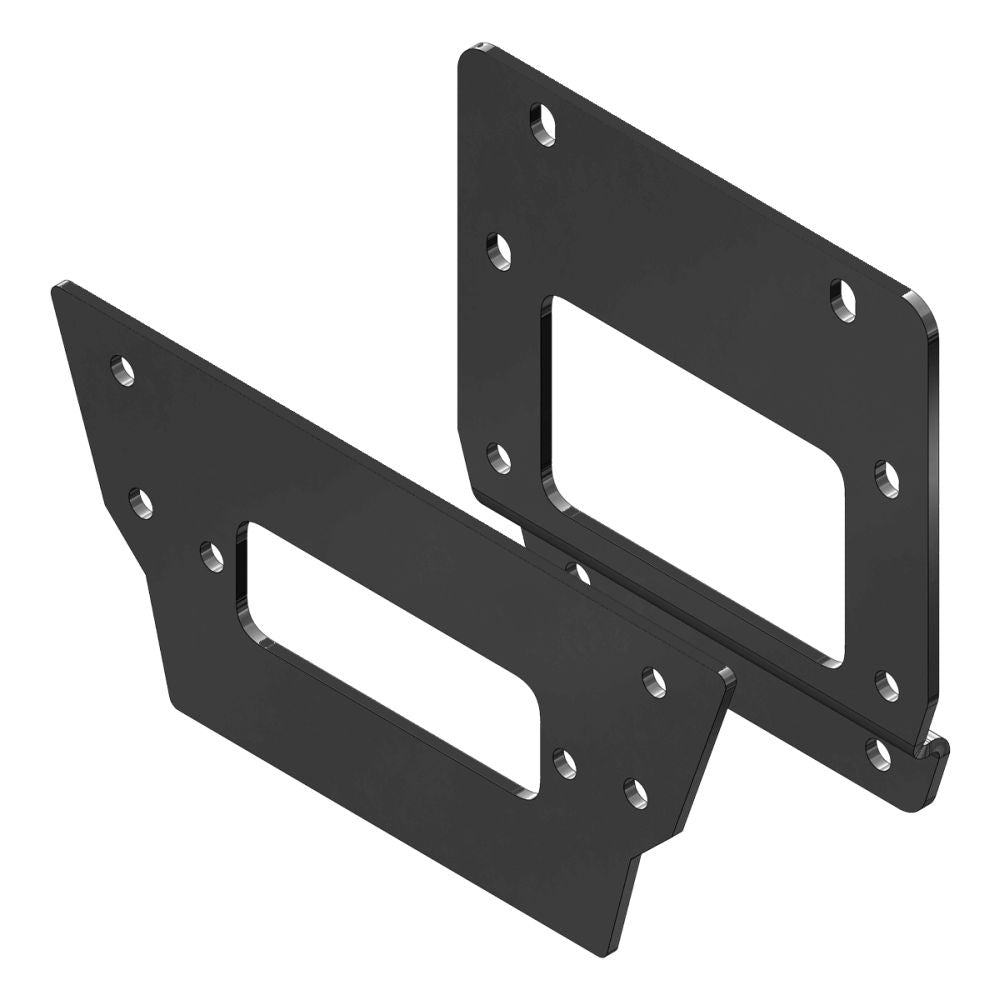

VIPER UTV winch mounts for Kawasaki KRX are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your UTV. Winch mount plates are also designed to utilize the strength of your UTV's frame to optimize winching efficiency.


Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the wide spool, 4-bolt mounting pattern (3" x 6.60")


Fitment:
2020-2021 Kawasaki KRX 1000 (all models)
Note: will NOT work with VIPER V2 Wide Spool Winches

Brand: Viper
Part Numbers:
1x MA11835
1x VT4500SE
1x OR60

Note: Image is for reference only, actual product may vary slightly.
