Viper Midnight ATV Winch Kit 3000 lb With 50 Feet Black Synthetic Rope With Mount

NOTES:

Kit includes all winch components and a vehicle specific mount

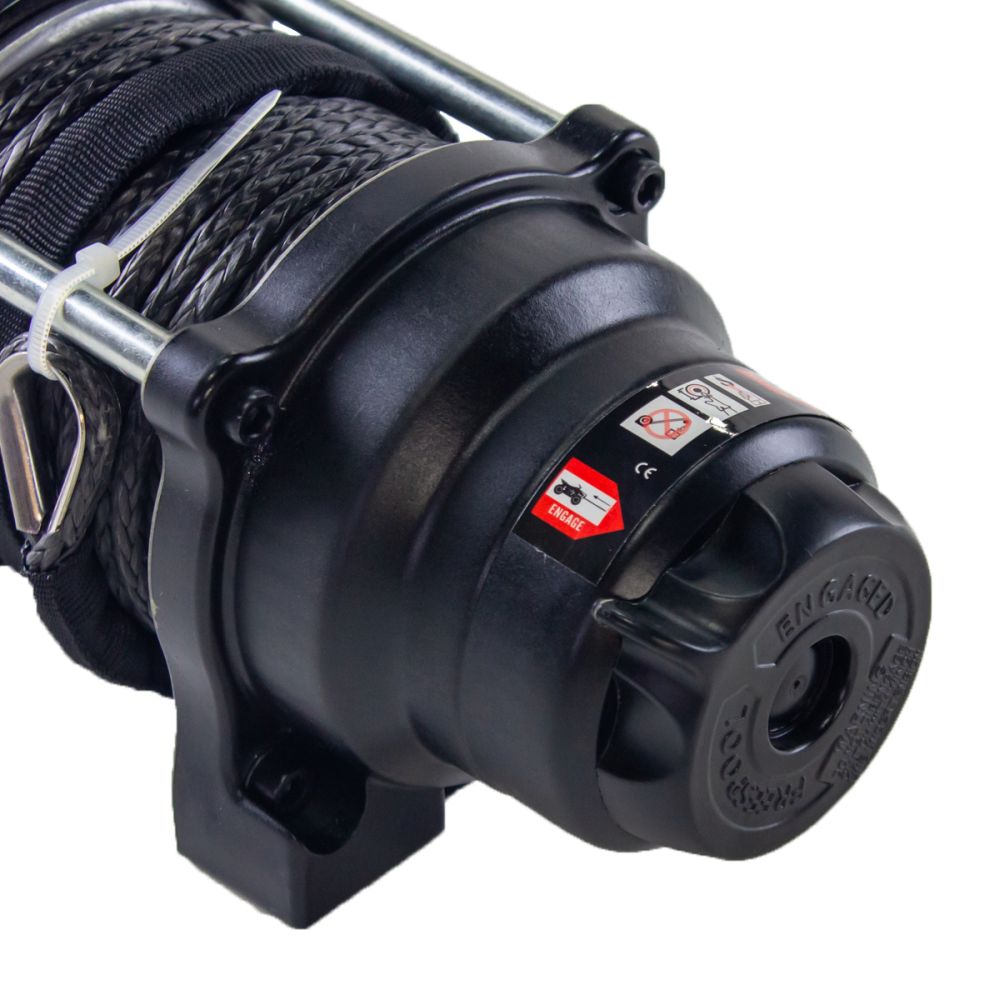

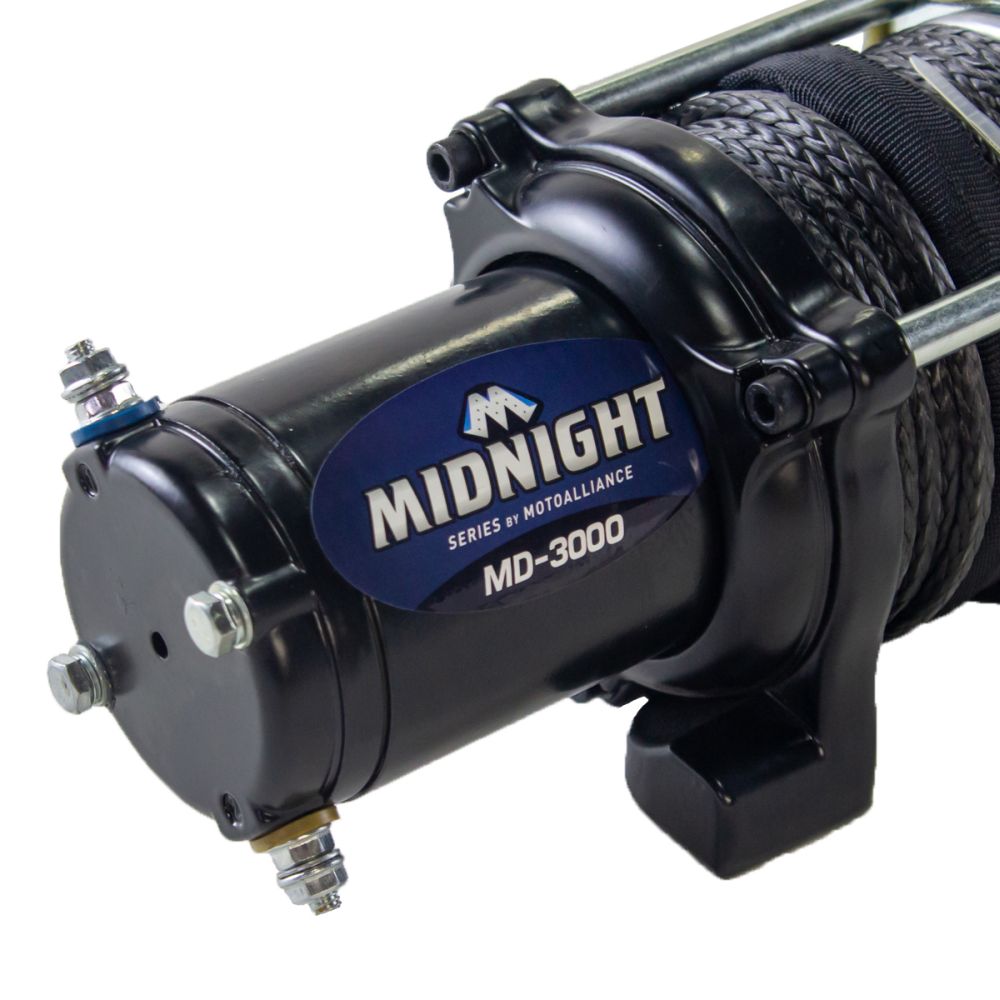

Winch Description

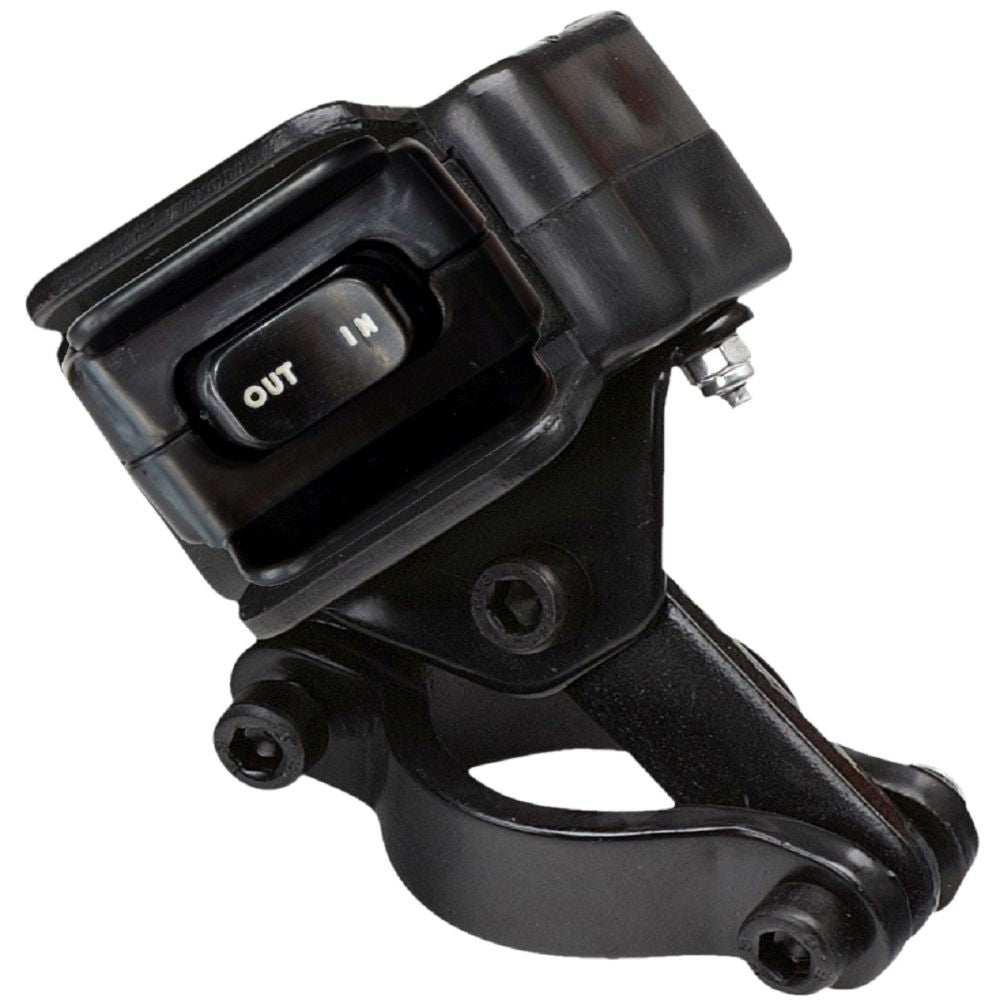

The VIPER Midnight 3,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.1 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch and synthetic rope are standard on this Midnight winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Specs
- Cable - Dyneema
- Motor - 12V DC, Sealed 1.1HP permanent magnet
- Rated Line Pull - 3,000lbs (1360.78 kgs)
- Line Speed - 0 lbs - 18 Amps motor draw / 25 FPM (7.62 MPM)
- Line Speed - 3,000lbs - 202 Amps motor draw / 7 FPM (2.13 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)

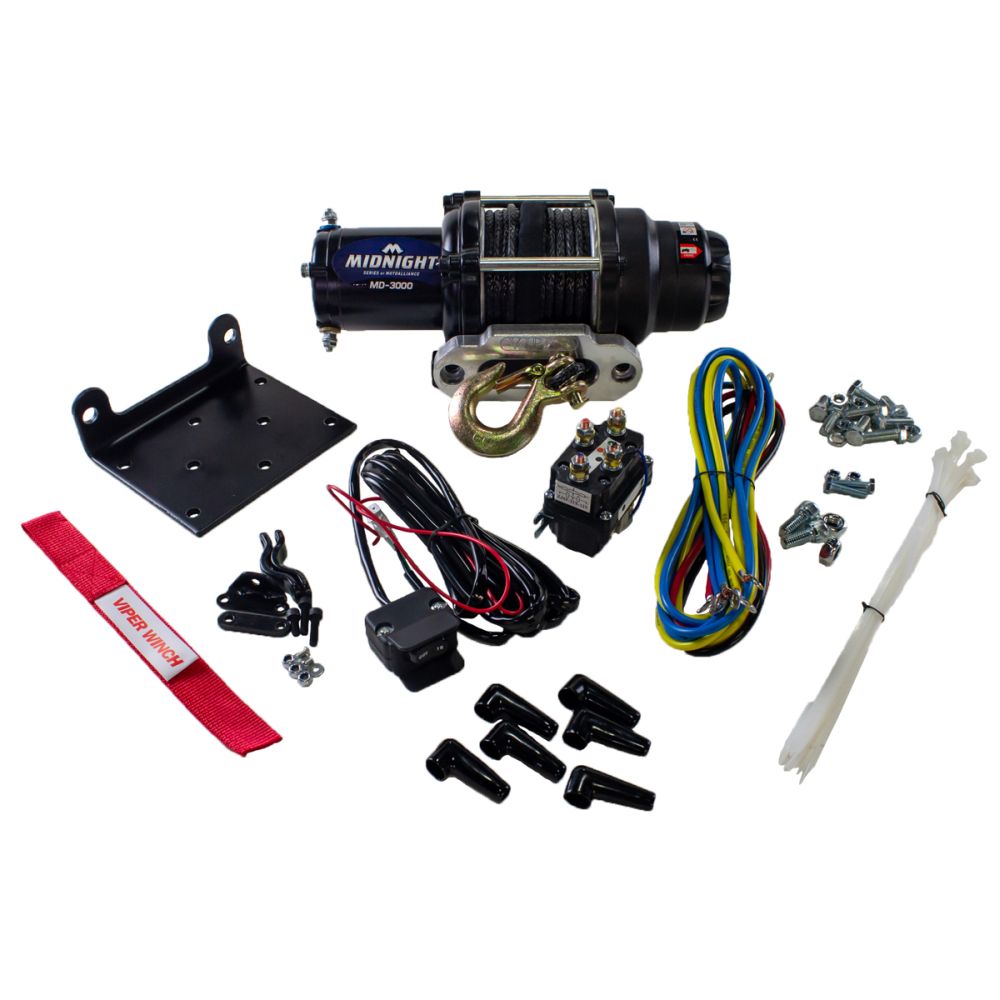

Kit Contents-
- 50ft BLACK Synthetic Rope

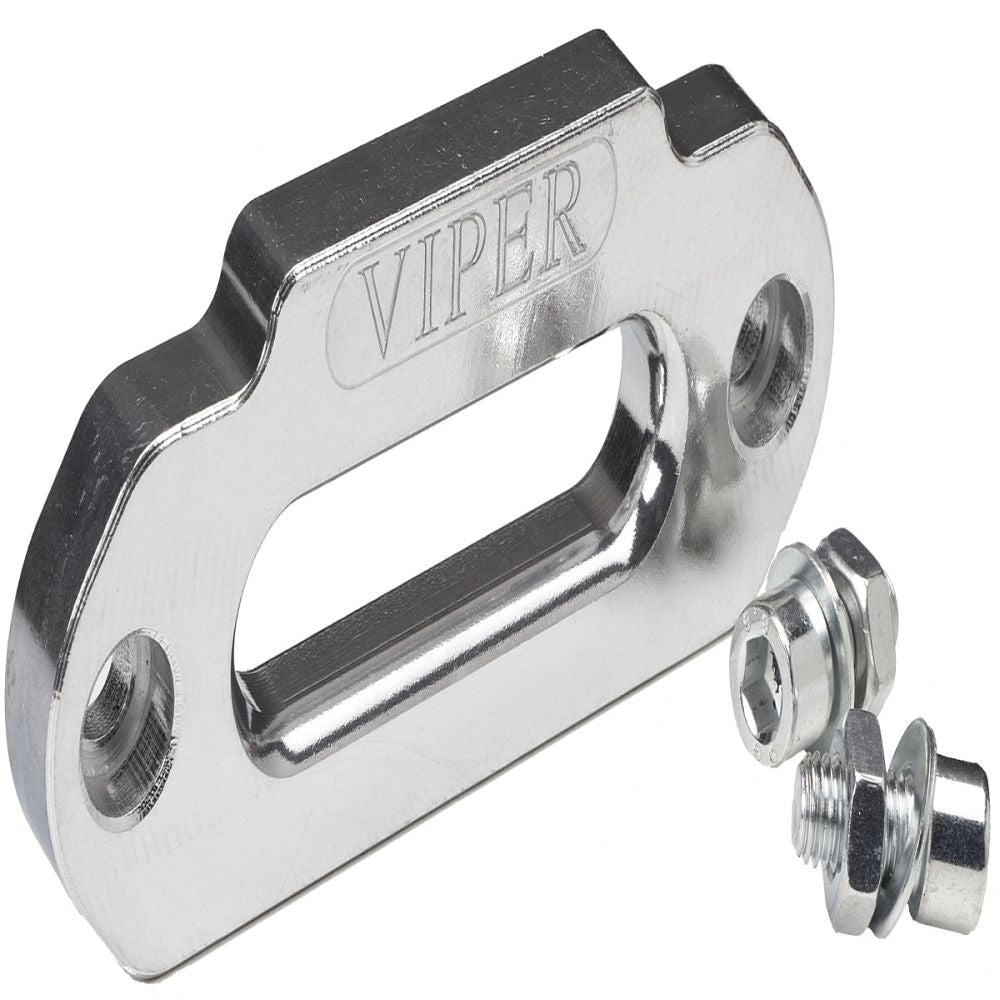

- Aluminum Hawse Fairlead
- Contact/Solenoid
- Clevis Hook
- Wiring
- Installation Hardware and Instructions

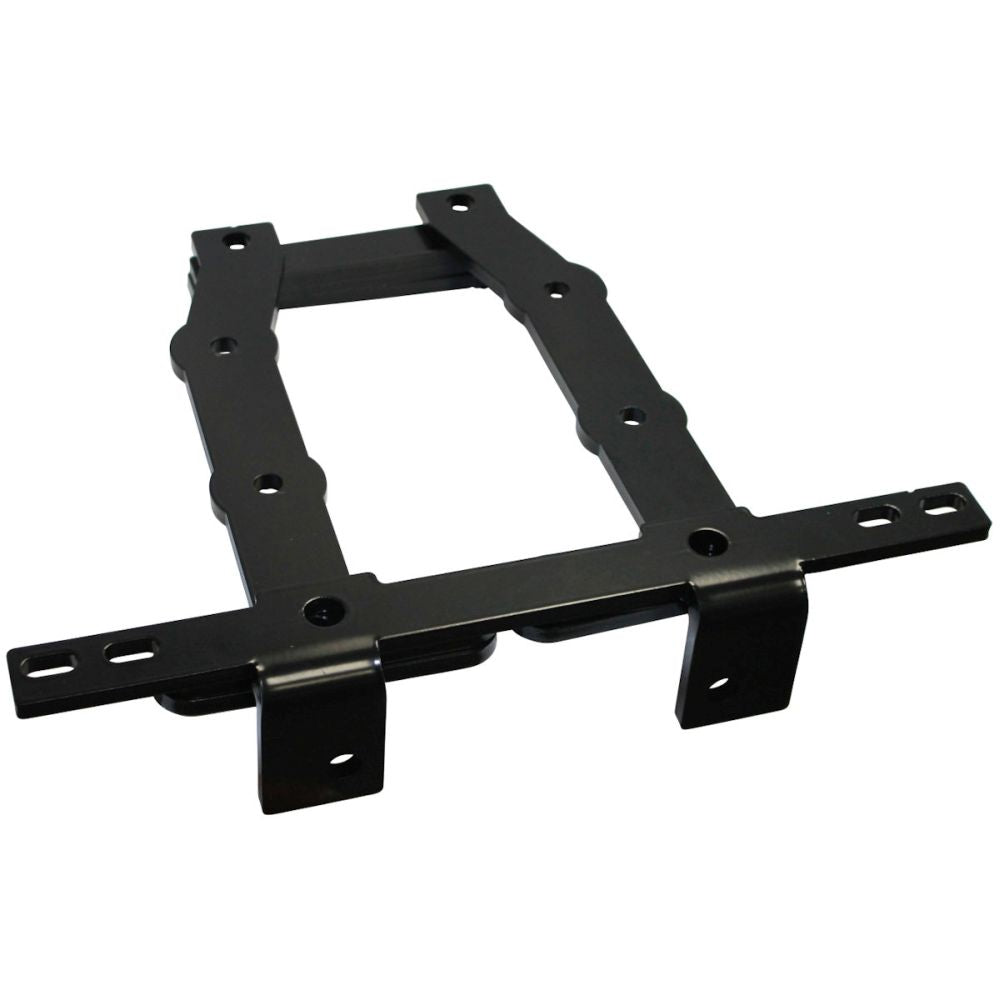

Mount Description

VIPER winch mounts are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.

• Black industrial powder coat finish
• Includes mounting hardware and detailed instructions
• For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")

Fitment:

• 2012-2013 Foreman TRX 500
• Please Note: will NOT work on the 2014 Foreman

Brand: Viper
Part Numbers:
1x MA11920
1x MD3000_BK

Note: Image is for reference only, actual product may vary slightly.
