Viper Midnight ATV Winch Kit For Yamaha Grizzly 550, 700

NOTES:

Kit includes all winch components and a vehicle specific mount

Winch Description

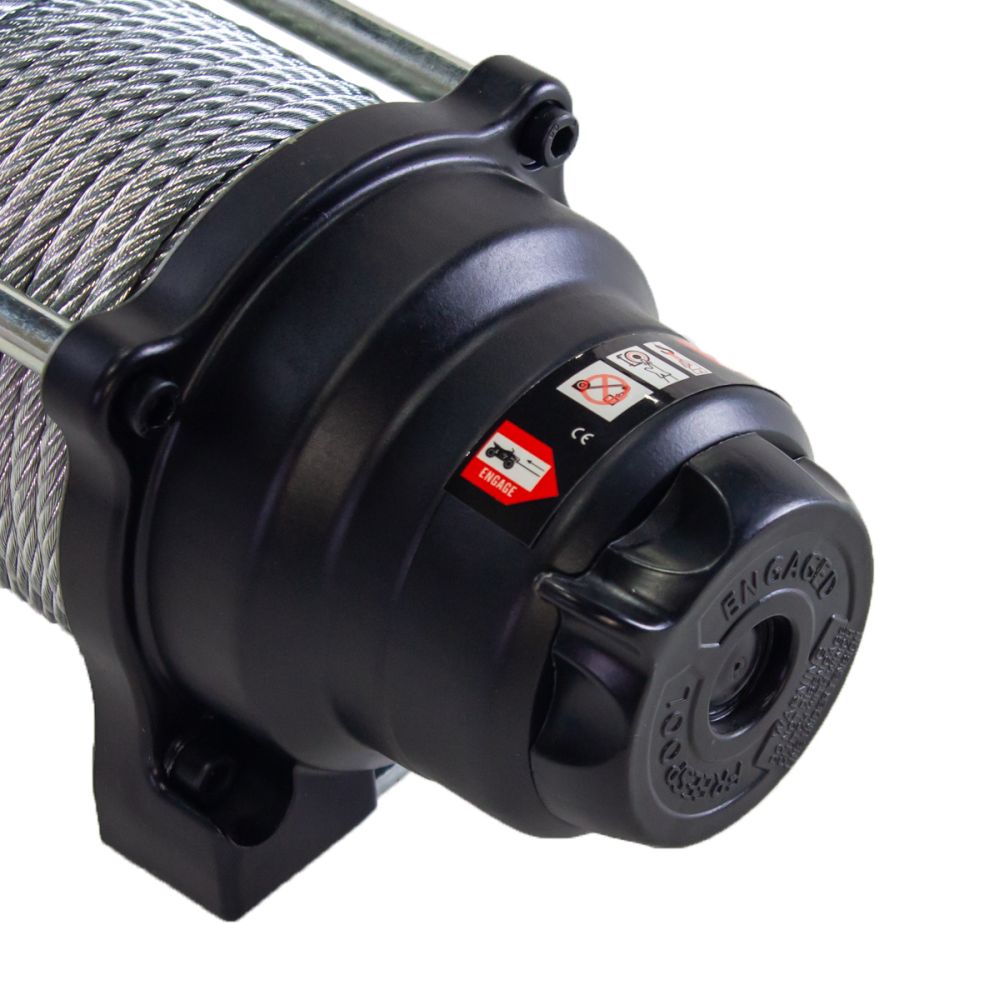

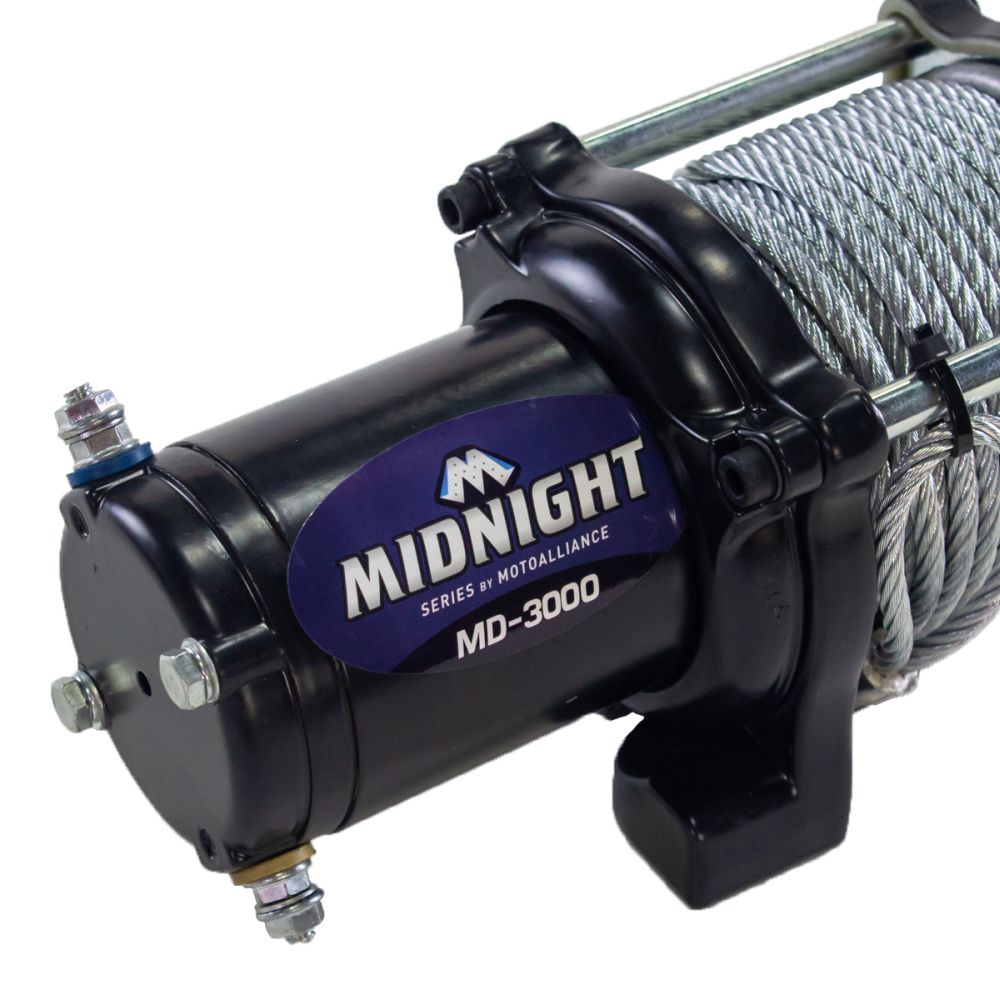

The VIPER Midnight 3,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.1 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch and steel cable are standard on this Midnight winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Specs
- Cable - Steel
- Motor - 12V DC, Sealed 1.1HP permanent magnet
- Rated Line Pull - 3,000lbs (1360.78 kgs)
- Line Speed - 0 lbs - 18 Amps motor draw / 25 FPM (7.62 MPM)
- Line Speed - 3,000lbs - 202 Amps motor draw / 7 FPM (2.13 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)


Kit Contents
- 50ft Steel Cable

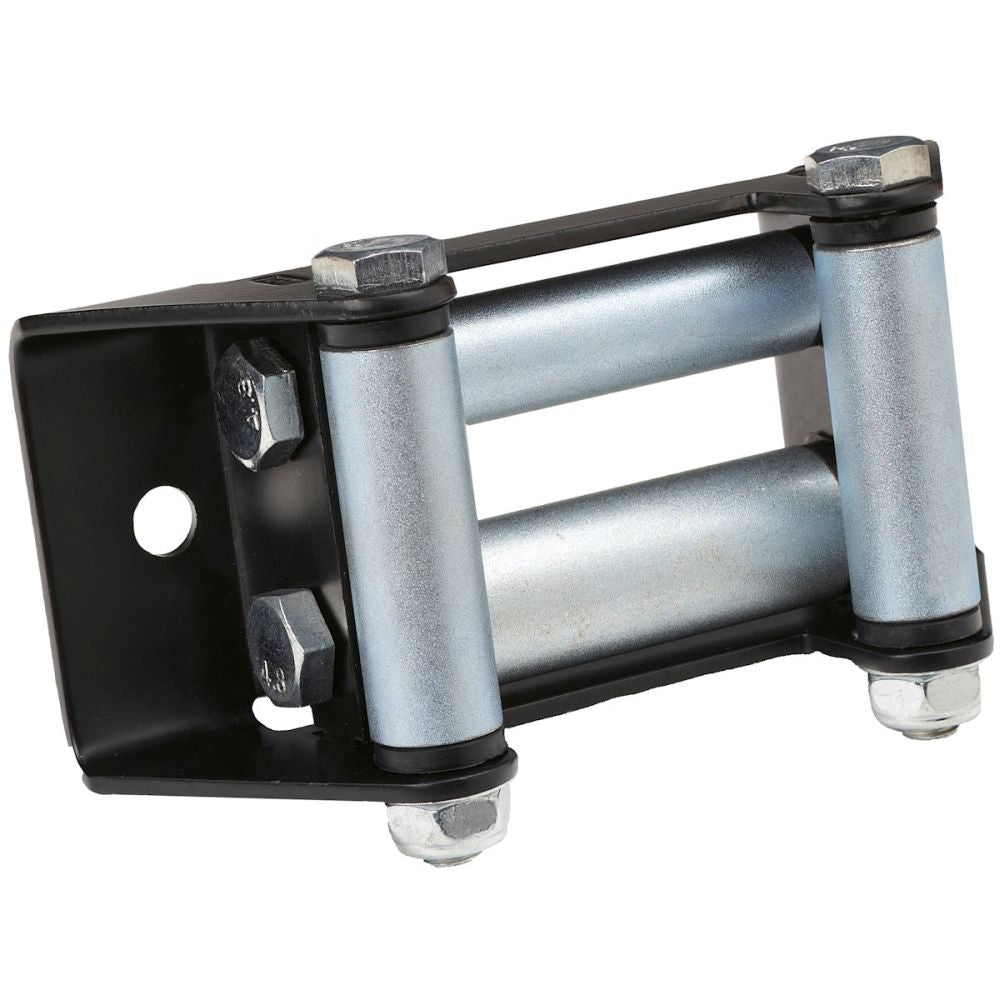

- Roller Fairlead
- Contact/Solenoid

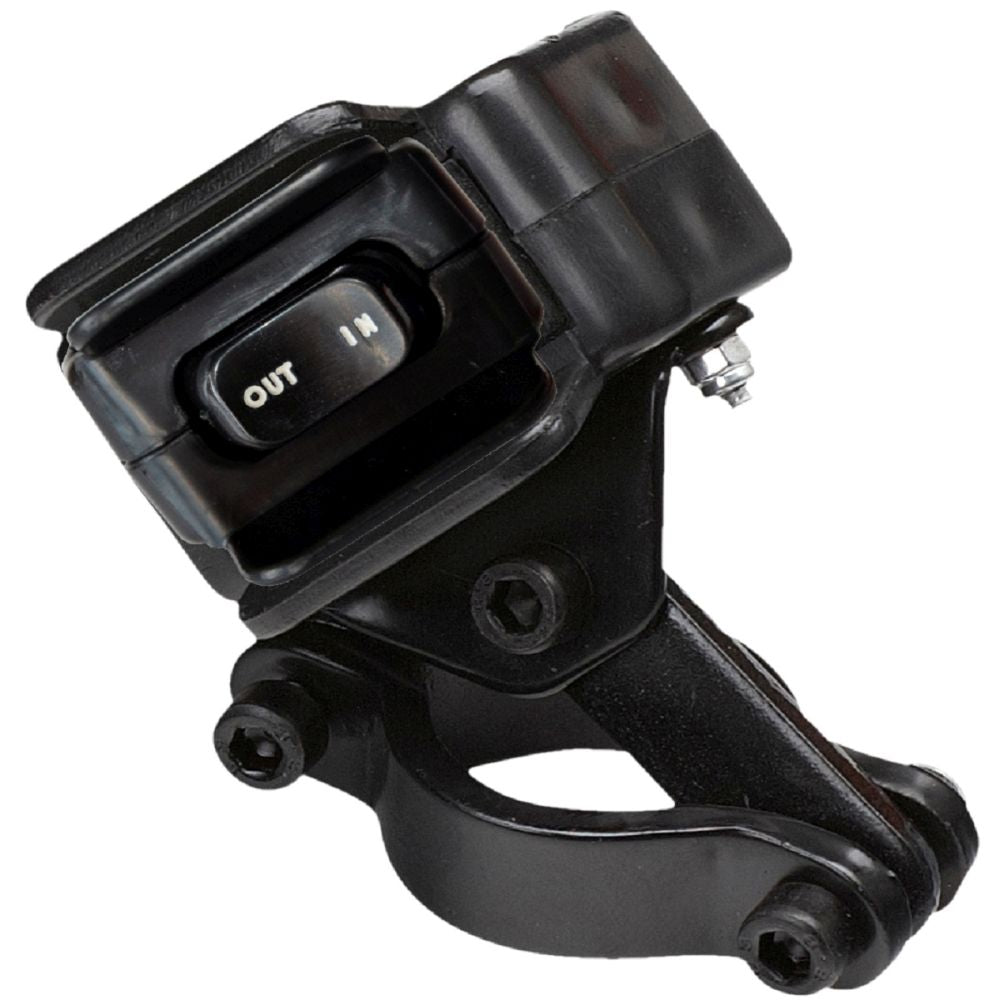

- Handlebar Rocker Switch
- Clevis Hook
- Wiring
- Installation Hardware and Instructions

Mount Description

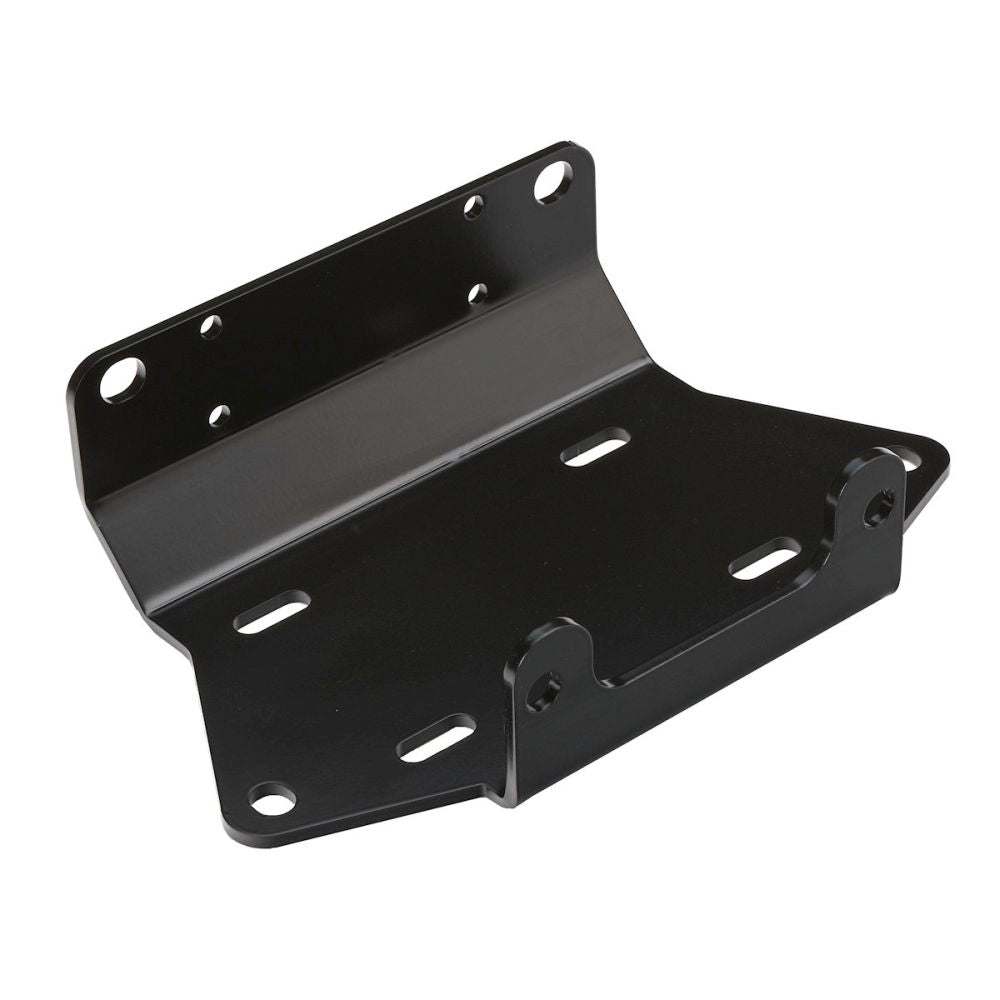

VIPER ATV winch mounts for Yamaha Grizzly are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.


Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")

2009-2014 Grizzly 550
2007-2015 Grizzly 700

Please Note: Elite 3,000-5,000lb, Max 3,500-5,000lb and Midnight Series winches are a tight fit and some trimming / grinding may be needed on bumpers
Please Note: trimming is needed on Yami US HD bumpers

Brand: Viper
Part Numbers:
1x MA11927
1x MD3000_ST

Note: Image is for reference only, actual product may vary slightly.
