Viper Midnight ATV Winch Kit For Suzuki King Quad
Viper Midnight ATV Winch Kit For Suzuki King Quad
NOTES:
Kit includes all winch components and a vehicle specific mount
Winch Description

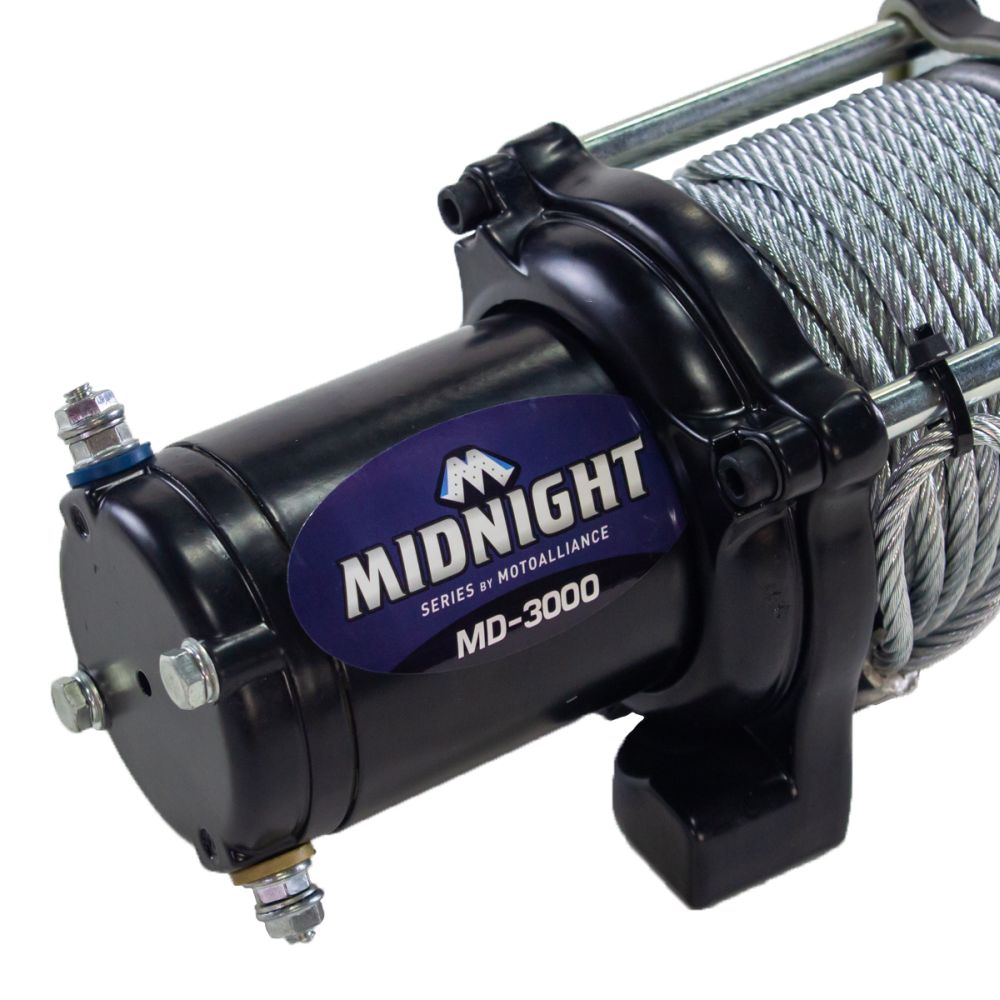

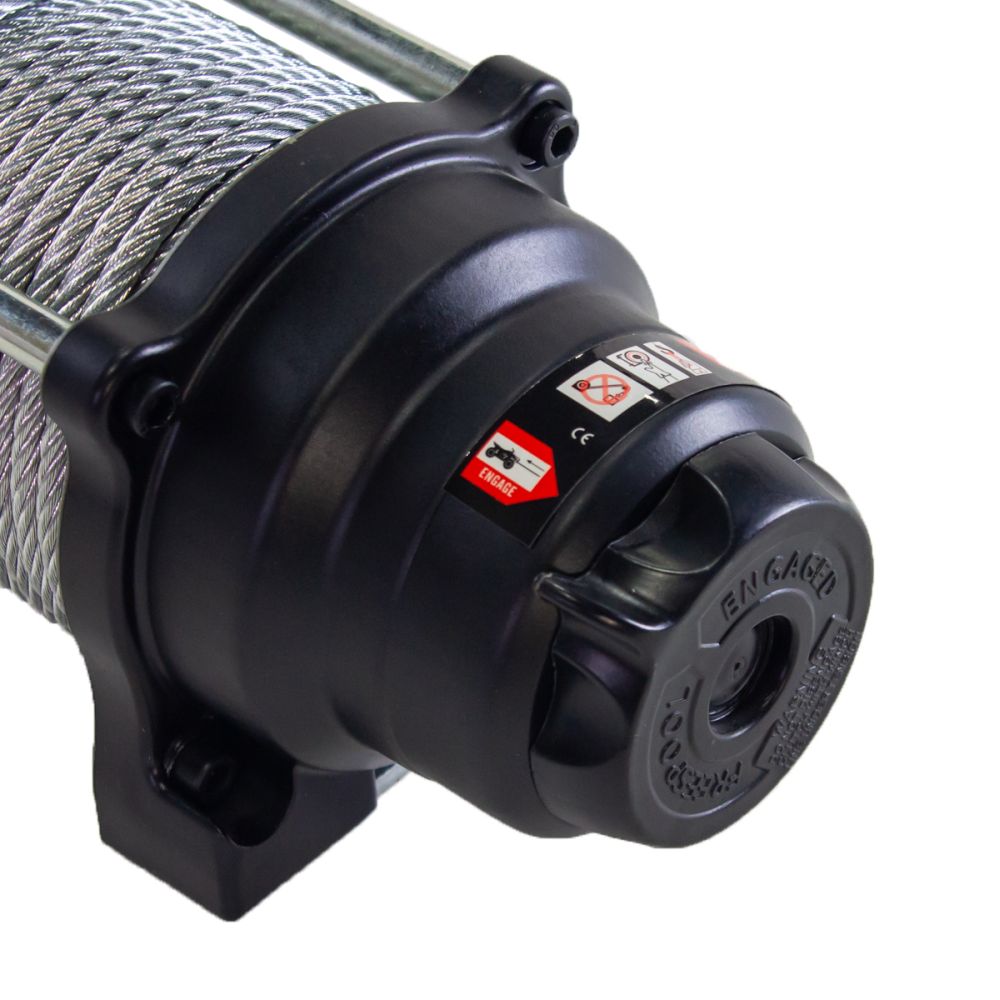

The VIPER Midnight 3,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.1 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch and steel cable are standard on this Midnight winch.
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.
Specs
- Cable - Steel
- Motor - 12V DC, Sealed 1.1HP permanent magnet
- Rated Line Pull - 3,000lbs (1360.78 kgs)
- Line Speed - 0 lbs - 18 Amps motor draw / 25 FPM (7.62 MPM)
- Line Speed - 3,000lbs - 202 Amps motor draw / 7 FPM (2.13 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)

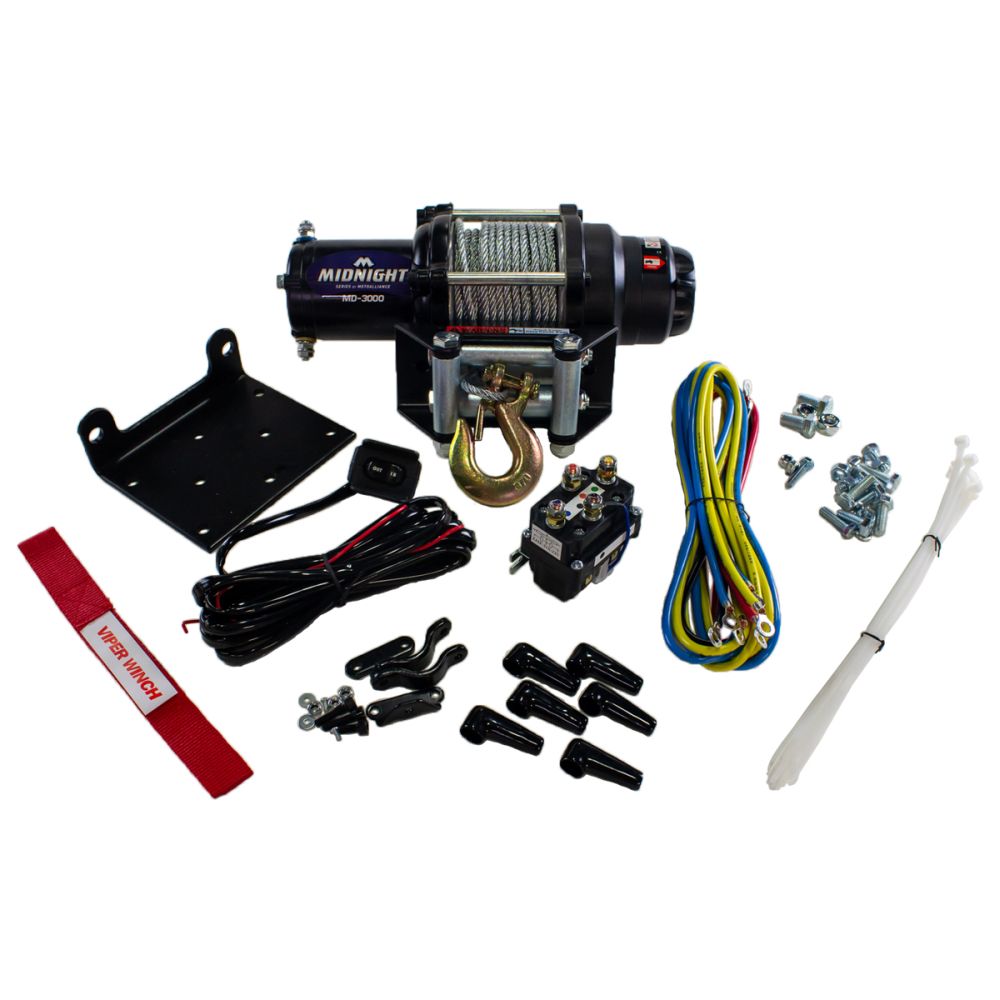

Kit Contents
- 50ft Steel Cable

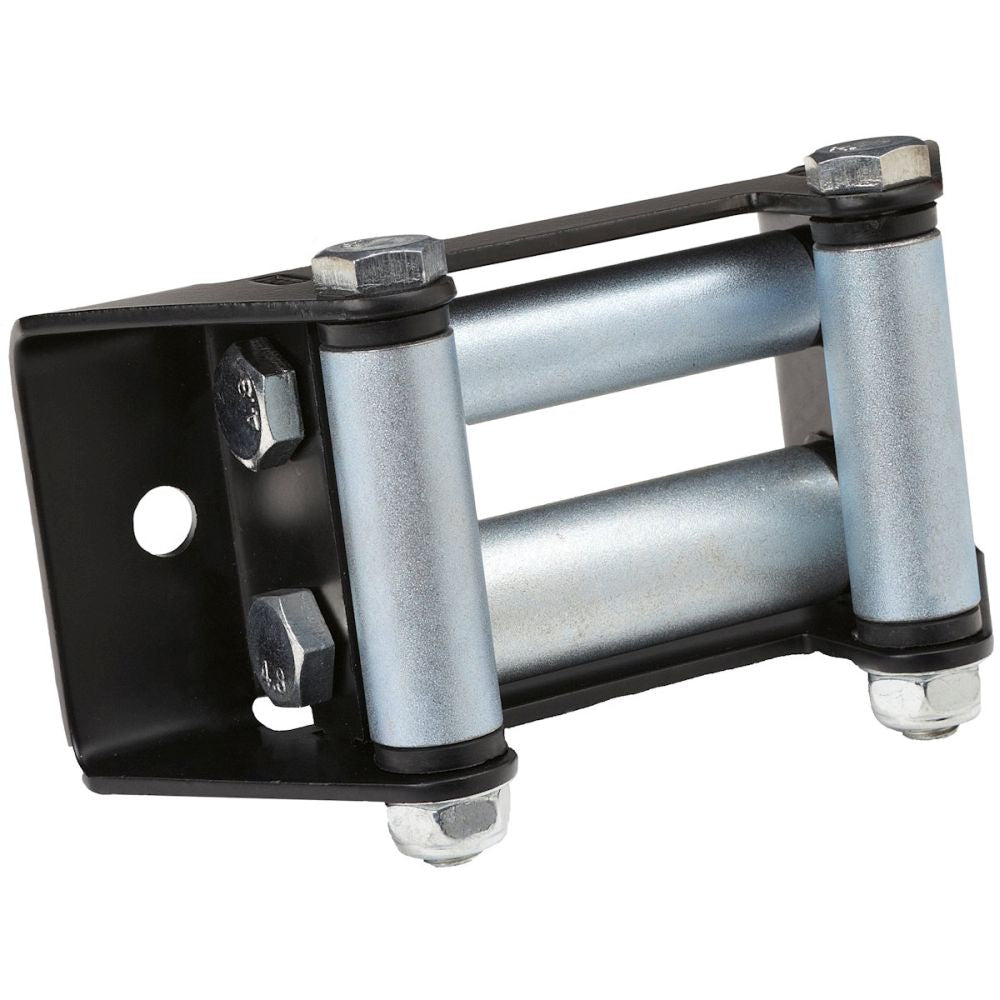

- Roller Fairlead
- Contact/Solenoid

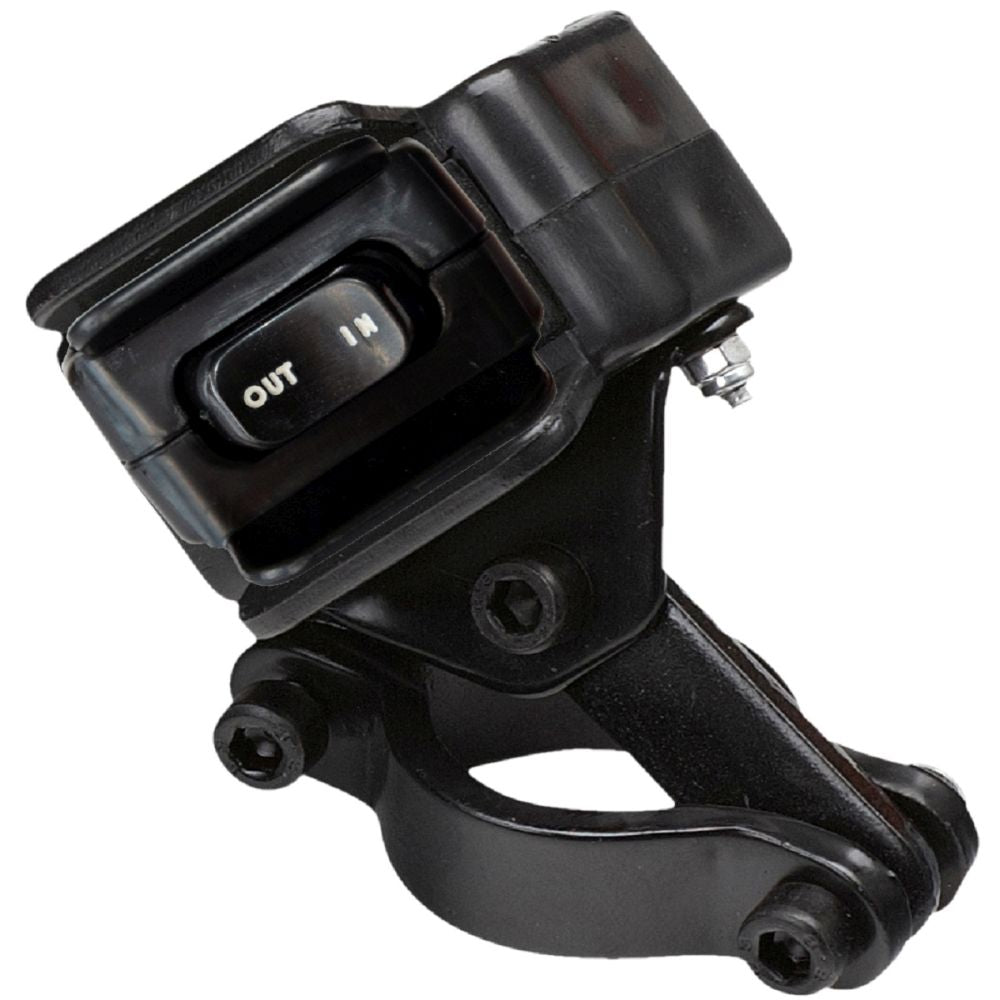

- Handlebar Rocker Switch
- Clevis Hook
- Wiring
- Installation Hardware and Instructions

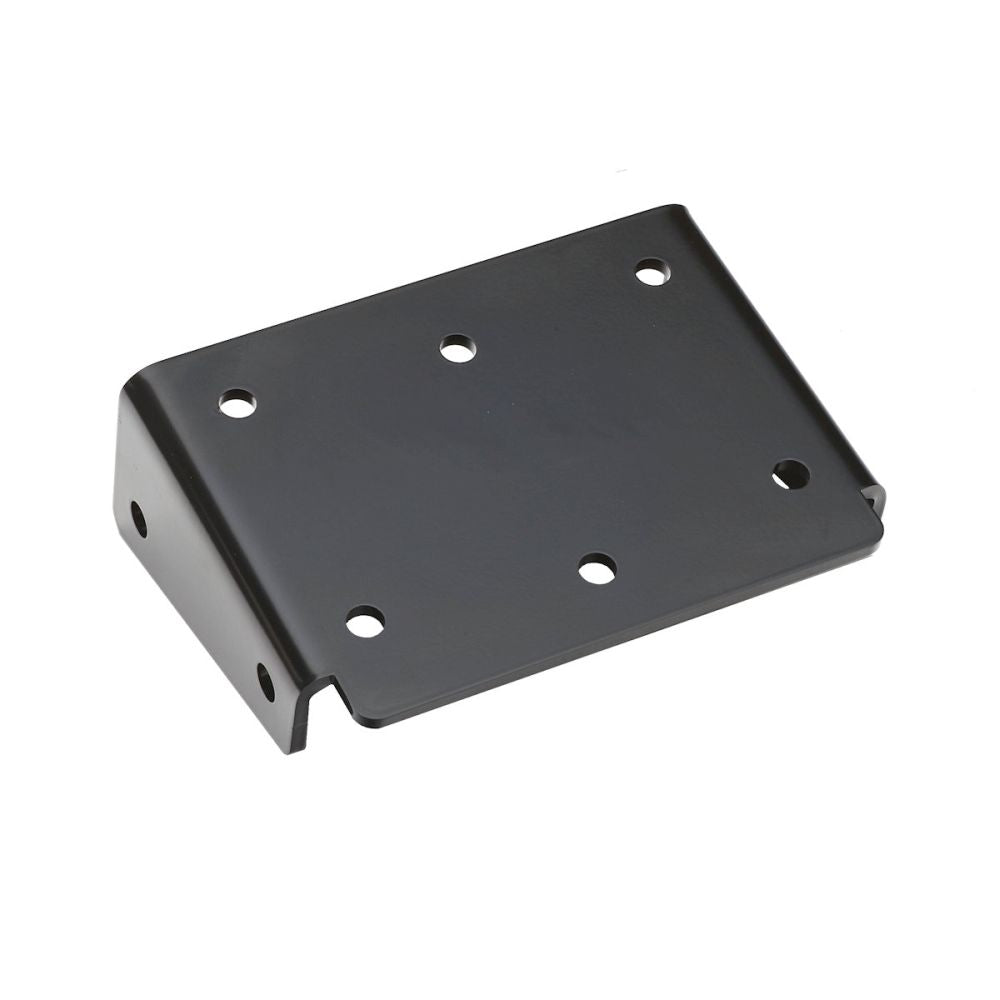

VIPER ATV winch mounts for Suzuki King Quad are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your ATV. Winch mount plates are also designed to utilize the strength of your ATV's frame to optimize winching efficiency.
Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")
Fitment
2007-2010 King Quad 450
2009 King Quad 500 AXI
2011-2018 King Quad 500 AXI
2005-2007 King Quad 700
2008-2018 King Quad 750 (note: cable may rub on bumper during steep angle pulls)
Please Note: This Mount Plate only works with 4-bolt winches and no longer works with 2-bolt winches
Brand: Viper
Part Numbers:
1x MA11951
1x MD3000_ST
Note: Image is for reference only, actual product may vary slightly.
