3000 lb KFI Winch Combo Kit (M1) For 2012-17 Arctic-Cat Wildcat, Wildcat 4 1000
Customer Ratings
3000 lb KFI Winch Combo Kit (M1) For 2012-17 Arctic-Cat Wildcat, Wildcat 4 1000
3000 lb KFI Winch Combo Kit (M1) For 2012-17 Arctic-Cat Wildcat, Wildcat 4 1000
Part #A3000 and #101030
Fitment:
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Arctic-Cat Wildcat, Wildcat 4 1000 2012-2017 | 101030 | 101030 | 101030 | 101030 | 101030 |
| Textron Wildcat, Wildcat 4 1000 2018 | 101030 | 101030 | 101030 | 101030 | 101030 |

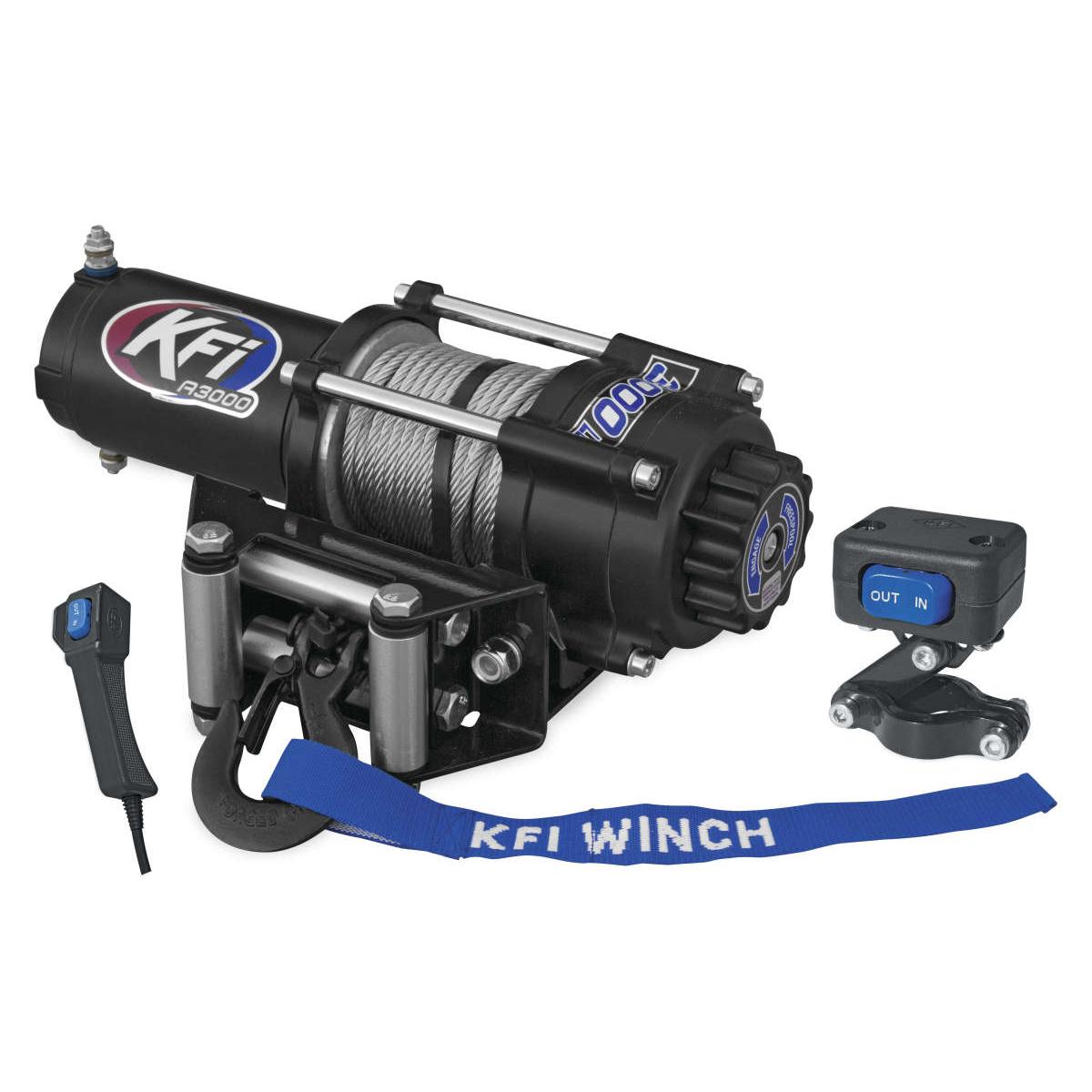

Winch Details:
Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 3000lb ATV Series winch features quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a "KFI 1-Year Limited Warranty". The KFI A3000 winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

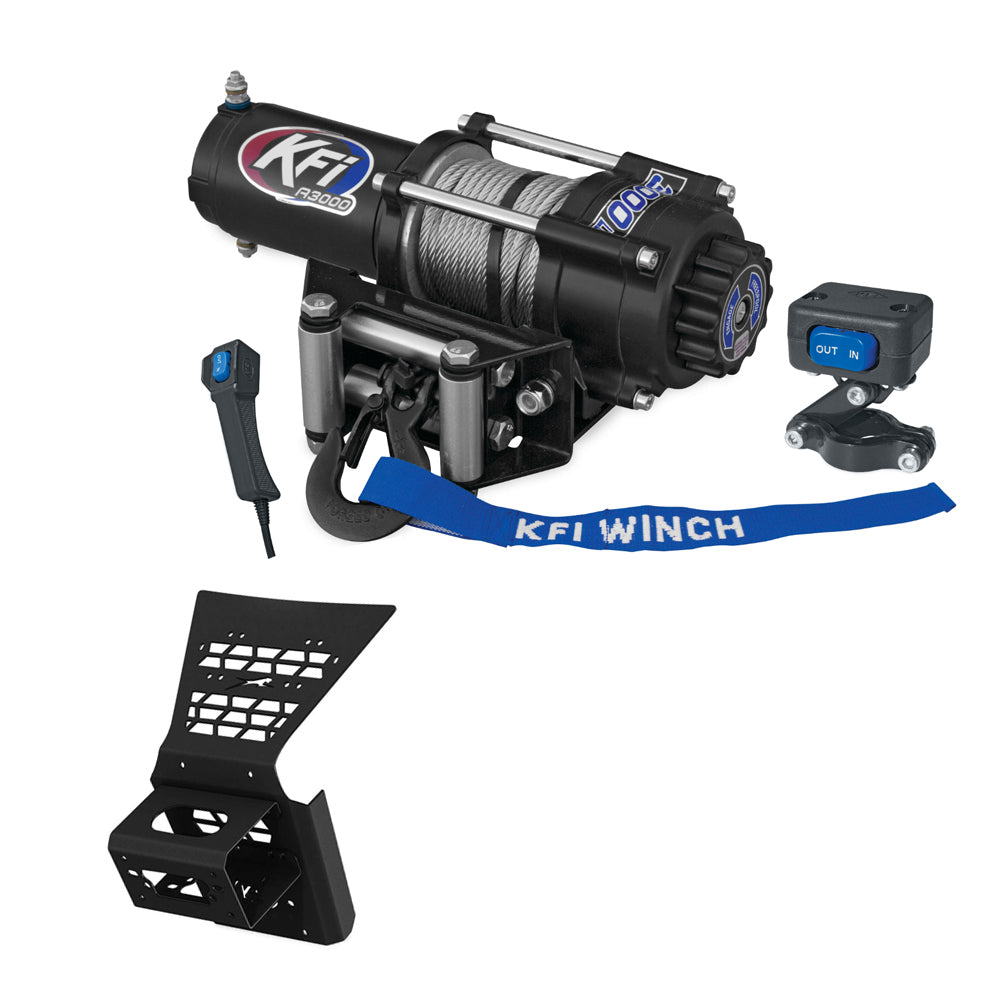

Winch Includes:
Take control of your winch with the included Mini-Rocker Switch. It comes with an adjustable bracket to mount on to your ATV's handlebars. This allows you to control your winch with just the touch of your finger, never having to let go of your handlebars.
Also included is a Handheld 14' CordedRemote for those situations when you need to control your winch from a distance ordismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring system so that you can store your remote when not in use.
The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.
| A3000 Specifications | |
| Model | A3000 ATV Series |
| Rated Line Pull | 3000 lbs. |
| Motor | 12V DC, 1.3 hp Permanent Magnet |
| Gear Ratio | 171:1 |
| Gear/Transmission | All-metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch (free spooling) | All Metal Cam Activated Freespool |
| Drum Size | 1.5" (D) x 3.32" (L) |
| Cable | 3/16" (D) x 45.9' (L) |
| Fairlead | Multi-directional Roller |
| Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch |
| Winch Dimensions | 13.39" L x 4.06" D x 4.29" H |
| Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
| Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 1 Year |
| Winch Weight | 24.8 lbs. (complete kit) |

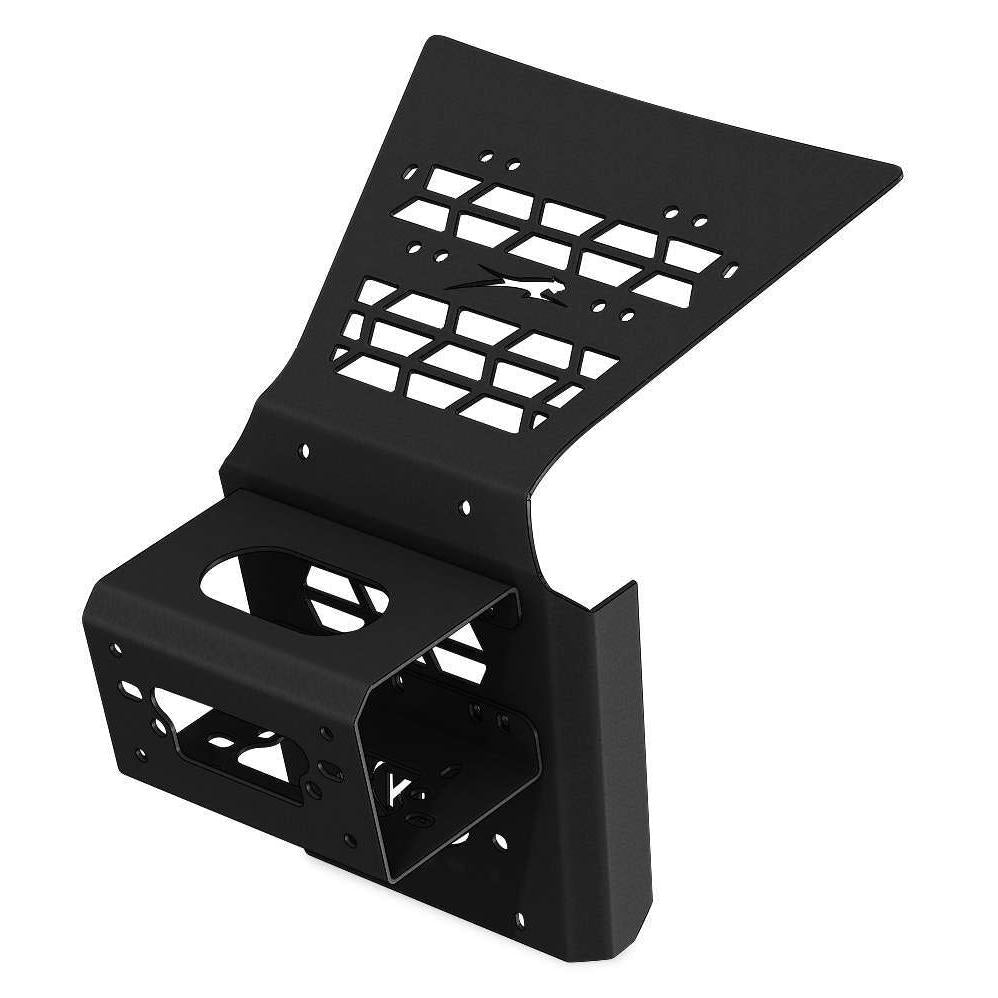

Mount Specs:
- 100% MADE IN USA.
- Comes with #101000 Modular Grill and #101015 Modular Winch Mount.
- Able to be mount to the front face and also the Top Surface as an option.
- Replaces stock plastic grill.
- Constructed of 3/16" steel.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Easy to install.
- Complete installation instructions included.
- Satisfaction guaranteed.
Brand: KFI
Part Numbers:
1x A3000
1x 101030
